Software

CAMConcept

CAMConcept is a CAD/CAM programming system for turning and milling with integrated 3D graphic simulation. It combines the functions of a professional CAD/CAM system with the benefits of software developed specifically for CNC training.

Users can create CAD drawings, program machining cycles, simulate workpieces and check for collisions before production. CAMConcept can also control compatible EMCO Concept Turn and Concept Mill machines directly.

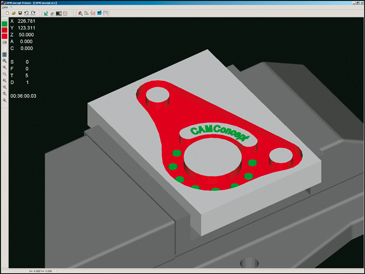

csm ausbildung camconcept 3d 70daf70edf

Highlights

  • Combined CAD, CAM and CNC programming system
  • Symbol-based operator guidance
  • Graphical input screens
  • Integrated 3D machining simulation
  • Workpiece, clamping device and collision simulation
  • Automatic contour programming
  • Editable tool library with 3D tool models
  • Integrated NC editor
  • Direct control of compatible EMCO Concept machines
  • Suitable for CNC training and production programming

CAD Functions

  • Includes all core CAD drawing functions
  • Supports dimensioning, crosshatching and labelling
  • Imports DXF drawings
  • Creates CAD drawings and workpiece geometry
  • Creates and prints drawings

CAM Functions

  • Graphically supported machining cycle programming
  • Programs complex NC cycles
  • Automatically creates complex machining contours
  • Transfers work-stage drawings into machining programs
  • Exports NC programs using postprocessors and a DIN/ISO interface

CNC Functions

  • Directly controls compatible CNC machines
  • Displays machine functions, positions and operating status while a program is running
  • Simulates workpiece machining for program checking and training

Additional Functions

Machining simulation

  • Simulates blanks, workpieces and clamping devices in 2D, 2.5D and 3D
  • Includes collision checking
  • Realistically represents adjustable clamping devices and blanks

Tool library

  • Allows tools to be created, saved, searched and simulated as 3D models
  • Supports the creation and printing of tool lists

Program editor

  • Integrated editor with machining cycles and help diagrams for easier programming

Online help

  • Context-sensitive help provides guidance while using the software

Options & Accessories

Postprocessors

  • Optional postprocessors display and export programs in different control formats
  • Supports program transfer to different machine and control types

Licences

  • Single licence
  • Machine licence
  • Multiple licence

Applications

  • CAD drawing and workpiece design
  • CAM cycle programming
  • CNC turning programming
  • CNC milling programming
  • Automatic contour programming
  • NC program editing
  • 2D, 2.5D and 3D machining simulation
  • Collision checking
  • Direct CNC machine control
  • CNC programming training

Workpieces

  • Turned workpieces
  • Milled workpieces
  • Workpieces with complex contours

Software Specifications

  • Programming systems: CAD, CAM and CNC
  • Simulation: 2D, 2.5D and 3D
  • Simulation elements: Tools, blanks, workpieces, feeds, tailstocks, vices and clamping devices
  • Program export: Postprocessor and DIN/ISO interface
  • Drawing import: DXF
  • Machine control: Direct control of compatible EMCO Concept Turn and Concept Mill machines
  • Machine compatibility: Concept Turn and Concept Mill 55, 60 and 105
  • Network capability: Included
  • Tool management: Editable tool library with 3D models
  • Programming support: Integrated NC editor and context-sensitive help

Languages

  • German
  • English
  • French
  • Spanish
  • Italian
  • Dutch
