Highlights
- Made in Germany precision CNC lathe
- nccad PROFI controller and turning software
- Precision ball screw drive system on all axes
- High-speed 2.5 kW servo spindle drive
- Spindle speed range from 50 to 5000 rpm
- Thread cutting in both conventional and CNC modes
- Rigid prismatic cast iron bed construction
- Centre distance of 600 mm
- Centre height of 135 mm
Machine Description

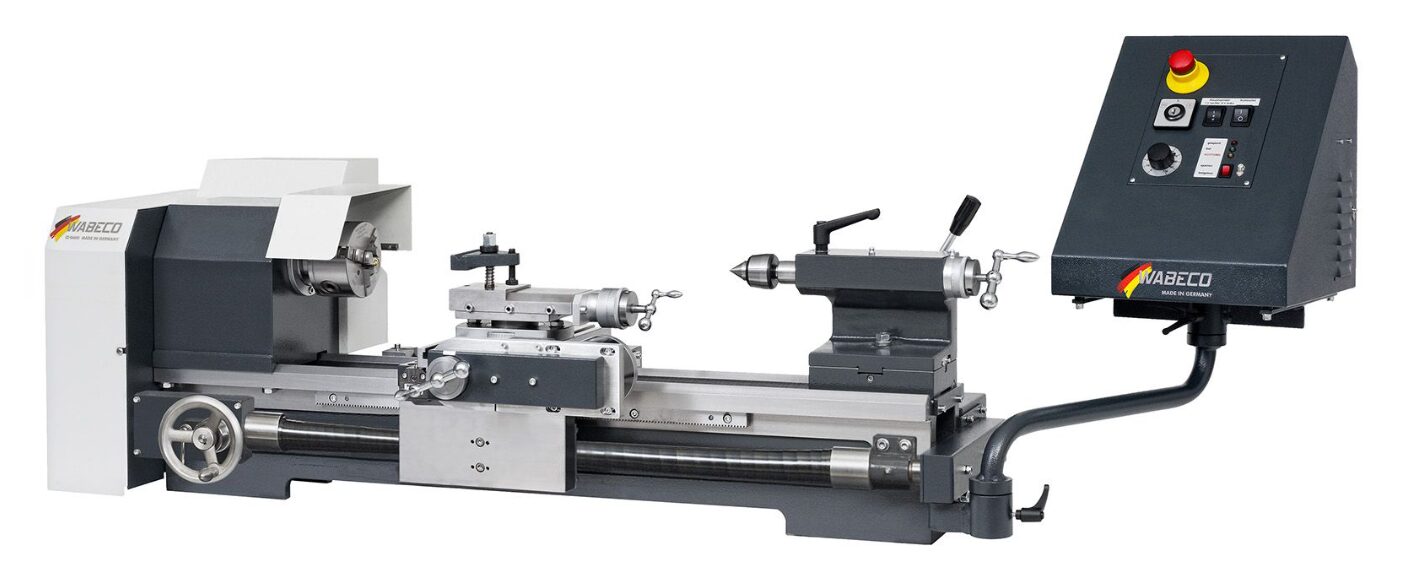

The CC-D6200 HS KRS PROFI is designed for precision machining applications requiring high spindle speeds, excellent positioning accuracy and advanced CNC functionality. The machine combines conventional turning capability with CNC operation, allowing users to switch between manual and automated machining as required.
Manufactured in Germany to exacting standards, the machine offers long-term durability, high productivity and exceptional machining precision for a wide range of applications.
Machine Construction
Prismatic Cast Iron Bed
The machine bed is manufactured from diagonally ribbed grey cast iron with inductively hardened and precision-ground guideways. This rigid construction provides excellent vibration damping, stability and machining accuracy.
Headstock
- Grey cast iron headstock housing
- Hand-scraped V-guide system
- Precision adjustable DIN tapered roller spindle bearings
- Clockwise and counter-clockwise spindle rotation
- High torque output throughout the speed range
Tool Slide
- Universally adjustable compound slide
- Adjustable dovetail guideways
- Cross slide travel: 140 mm
- Longitudinal slide travel: 60 mm
- 360° swivelling compound slide
- Maximum tool height: 20 mm
- Integrated chip scrapers protect guideways from contamination
Tailstock
- Quick-adjust tailstock design
- Lateral adjustment: ±10 mm
- MT2 Morse taper quill
- Quill travel: 65 mm
- Scale ring accuracy: 0.1 mm
Ball Screw Drive System
The machine is equipped with precision ball screws on all CNC axes, including protective lead screw covers as standard.
Benefits of the ball screw system include:
- Exceptional positioning accuracy
- Backlash-free operation
- Long service life
- Minimal wear
- Higher travel speeds
- Improved CNC machining performance
Lead Screw Drive & Thread Cutting
The machine incorporates a lead screw drive with change gear quadrant for automatic feed and threading operations.
- Automatic feed rate: 0.085 mm/rev
- Additional longitudinal feed: 0.16 mm/rev
- Tumbler gear for left and right-hand threads
- Metric threads: 0.25 – 7.0 mm pitch
- Imperial threads: 10 – 40 TPI
Thread cutting is available in both conventional and CNC operating modes, providing maximum machining flexibility.
Drive Technology
High-Speed Servo Spindle System
The brushless servo motor and frequency converter deliver smooth, precise spindle performance with speeds up to 5000 rpm.
The higher spindle speed makes the machine particularly suitable for smaller workpieces, fine finishing operations and high-speed machining applications.
High-Performance Stepper Motors
The X and Z axes are powered by maintenance-free high-performance stepper motors providing:
- High acceleration rates
- Fast traverse speeds
- Strong holding torque
- Reliable positioning accuracy
Innovative Belt Drive
An advanced belt-driven spindle system ensures exceptionally quiet operation while maintaining smooth power delivery and excellent machining performance.
Dimensions & Weight
- Machine dimensions: 1230 x 630 x 470 mm
- Machine weight: 199 kg
