Highlights
- Made in Germany precision milling machine
- Maintenance-free linear guides on all axes
- MT2 spindle taper with M10 drawbar thread
- 1.4 kW variable speed spindle drive
- Spindle speed range from 140 to 3000 rpm
- X-axis travel: 500 mm
- Y-axis travel: 200 mm
- Z-axis travel: 280 mm
- 700 x 180 mm clamping table
- Ideal for precision milling and drilling applications
Machine Description

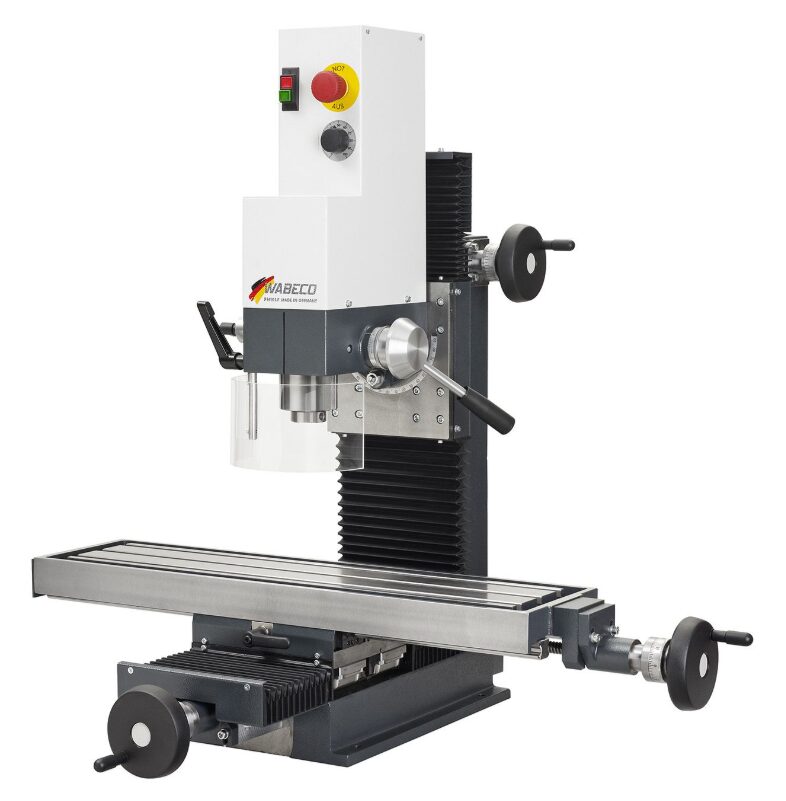

The F1410 LF MT2 combines precision linear guide technology with robust German engineering to provide exceptional machining accuracy and smooth axis movement. The increased Y-axis travel of 200 mm offers greater machining flexibility compared to conventional compact milling machines.
Its versatile design makes the machine suitable for both milling and drilling operations, while the precision quill and drilling depth stop provide excellent control during machining processes.
Machine Construction
Linear Guides
The F1410 LF features hardened and ground linear guideways on all axes with precision ball guide systems. These maintenance-free guides provide outstanding rigidity, smooth movement and exceptionally high positioning accuracy.
Four protective folding bellows help protect the guide systems from contamination and machining debris, ensuring long-term reliability.
Feed Screws
Trapezoidal thread spindles are fitted as standard on all axes and feature adjustable bronze double nuts for accurate positioning and long service life.
Optional ball screws are available for applications requiring even higher positioning accuracy, reduced wear and backlash-free operation.
A counterbalance system on the Z-axis further improves movement quality and machining precision.
Cast Iron Construction
The Z-column and machine base are manufactured from ribbed grey cast iron, providing excellent vibration damping, rigidity and machining stability.
Milling Head
The milling head can be swivelled through 90° in either direction, allowing machining angles from -90° to +90°.
- Swivelling range: -90° to +90°
- Large angle scale for accurate positioning
- Hardened locating pin for precise vertical alignment
- Integrated protective guard
Quill & Spindle System
The machine features a precision drilling and milling quill with a 55 mm stroke and integrated drilling depth stop.
A wide toothed belt drive ensures smooth, quiet operation and slip-free power transmission between the motor and spindle.
The integrated tool clamping and ejection system allows quick and efficient tool changes without additional equipment.
Machine Features
- Fine feed control on the Z-axis
- Axis locking system for improved surface finish
- Quiet belt-driven spindle system
- Optional clockwise and counter-clockwise spindle rotation for thread cutting
- Manufactured to DIN 8615 precision standards
Dimensions & Weight
- Machine dimensions: 940 x 890 x 770 mm
- Machine weight: 118 kg
Demonstration Machine
This demonstration machine is approximately four weeks old and has been geometrically inspected and supplied with a test report. As demonstration machines are unique items, availability is subject to prior sale.
