CC-F1420 LF HS KRS PROFI MT2

The WABECO CC-F1420 LF HS KRS PROFI MT2 is a precision CNC vertical milling machine designed for machining metal, non-ferrous metals and plastics. Manufactured in Germany, it combines precision linear guideways, backlash-free ball screws, an MT2 spindle, manual and CNC operation, high-performance stepper motors and the nccad PROFI control system, making it ideal for workshops, education, prototype manufacture and small production runs.

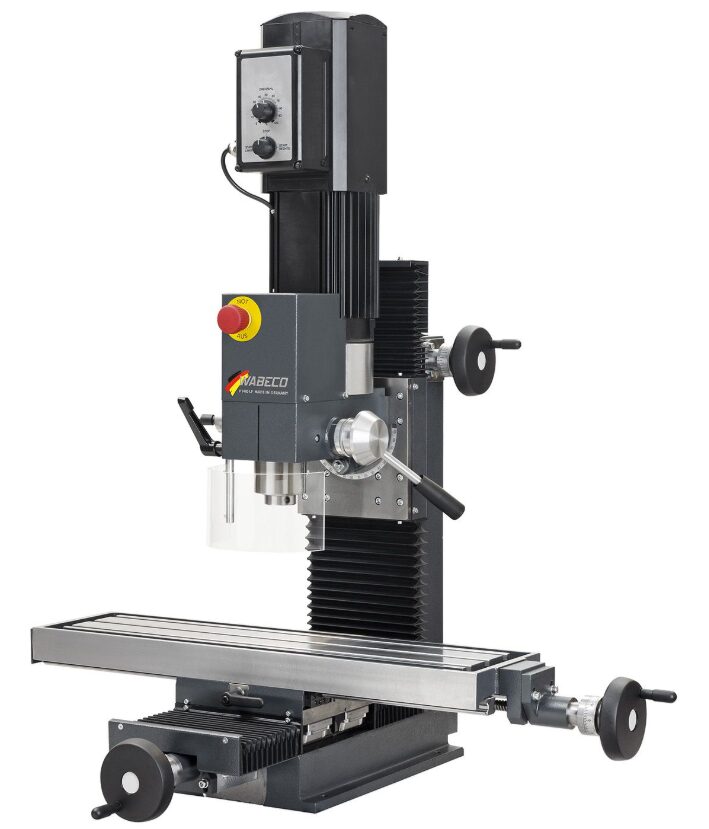

cc f1410 lf hs krs profi iso30

Highlights

  • Made in Germany
  • Manual and CNC operation in one machine
  • nccad PROFI CNC controller and milling software
  • Maintenance-free linear guideways on all axes
  • Precision ball screws on all axes
  • MT2 tool holder
  • 1.4 kW electronically variable speed motor
  • Variable spindle speed from 140–3,000 rpm
  • 500 mm X-axis travel
  • 200 mm Y-axis travel
  • 280 mm Z-axis travel
  • 700 x 180 mm clamping table
  • High-performance stepper motors
  • Built to DIN 8615 precision standards
  • 2-year warranty

Machine Overview

The CC-F1420 LF HS KRS PROFI MT2 combines conventional milling with CNC machining in one versatile machine. Designed for professional workshops, education and prototype manufacturing, it offers precision machining, smooth operation and intuitive CNC programming using the nccad PROFI control system.

CNC Control

The machine is supplied with the nccad PROFI CNC controller and milling software, allowing seamless operation in both manual and CNC modes.

  • nccad PROFI CNC controller and milling software
  • Manual and CNC operation
  • Easy transition between operating modes
  • Suitable for training and production environments

Main Drive Motor

The electronically controlled spindle drive delivers smooth speed adjustment with excellent torque throughout the speed range, providing the flexibility needed for both heavy-duty cutting and precision machining.

  • 1.4 kW single-phase motor
  • 230 V, 50/60 Hz power supply
  • Electronically variable speed from 140–3,000 rpm
  • Closed-loop speed control
  • Overload protection
  • High torque throughout the speed range
  • Potentiometer speed adjustment

Linear Guideways

Maintenance-free linear guideways provide smooth movement, exceptional rigidity and outstanding machining accuracy across all axes.

  • Linear guideways on all axes
  • Maintenance-free operation
  • Hardened and ground guideways
  • Preloaded ball guide system
  • High positioning accuracy
  • Excellent rigidity
  • Four protective bellows

Ball Screws

Precision ball screws deliver exceptional positioning accuracy, higher travel speeds and virtually backlash-free movement, making them ideal for demanding CNC machining applications.

  • Ball screws on all axes
  • High positioning accuracy
  • Wear-resistant design
  • Long service life
  • Backlash-free operation
  • Higher rapid traverse speeds
  • Suitable for synchronous and climb milling
  • Reading accuracy of the scale rings: 0.05 mm
  • Counterbalance adjustment on the Z-axis

Spindle and Tool Holder

The MT2 spindle is supported by precision adjustable anti-friction bearings and driven by a wide toothed belt for smooth, quiet and slip-free performance.

  • MT2 tool holder with M10 drawbar thread
  • True spindle run-out accuracy of 0.01 mm
  • Precision anti-friction spindle bearings
  • Wide toothed belt drive
  • Quick tool clamping and release system

Milling Head

  • Swivels from -90° to +90°
  • Large angle scale for accurate positioning
  • Precision locating pin for vertical alignment
  • Protective spindle guard

Quill and Fine Feed

  • 55 mm quill travel
  • Integrated drilling depth stop
  • Full-surface quill clamping
  • Fine feed on the Z-axis

Machine Construction

  • Rigid ribbed grey cast iron column and base
  • Axis locking system for improved surface finish
  • Manufactured to DIN 8615 precision standards

High-Performance Stepper Motors

The CNC system is equipped with maintenance-free stepper motors that provide reliable positioning accuracy and consistent axis movement.

  • Installed on X, Y and Z axes
  • Maintenance-free operation
  • High feed and acceleration rates
  • High holding torque

Machine Control Panel

  • Integrated machine operating controls
  • Designed for both CNC and manual operation

Limit Switches

  • Mechanical limit switches on X, Y and Z axes
  • Improved operational safety and positioning control

Warranty

  • 2-year warranty (excluding wearing parts)
  • Long-term spare parts availability guaranteed

Machine Performance

The machine is designed for machining steel, non-ferrous metals and plastics while maintaining excellent precision and smooth operation.

  • Suitable for precision milling applications
  • Capable of milling steel using a Ø10 mm cutter with approximately 10 mm depth of cut
  • Multiple fault monitoring system
  • Low-noise belt drive

Working Range

  • X-axis travel: 500 mm
  • Y-axis travel: 200 mm
  • Z-axis travel: 280 mm
  • Quill stroke: 55 mm
  • Distance from table to spindle: 60–340 mm
  • Spindle reach: 185 mm

Clamping Table

  • Table size: 700 x 180 mm
  • Three T-slots
  • T-slot width: 12 mm
  • T-slot spacing: 50 mm

Rapid Traverse

  • X-axis rapid traverse: 30–1,200 mm/min
  • Y-axis rapid traverse: 30–1,200 mm/min
  • Z-axis rapid traverse: 30–800 mm/min

Dimensions & Weight

  • Machine dimensions: W940 × D890 × H770 mm
  • Weight: 146 kg
