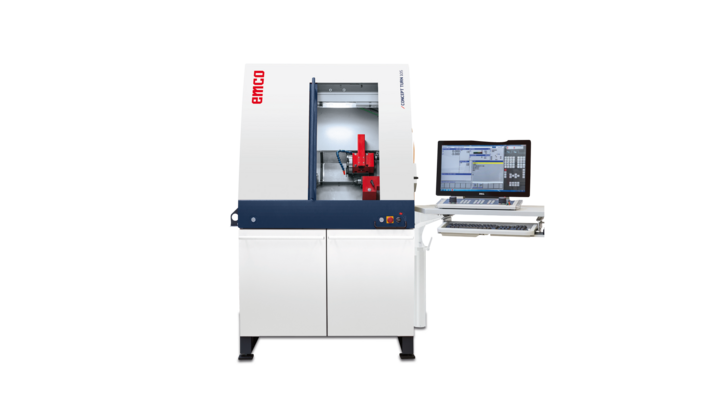

CONCEPT TURN 105
CNC TURNING CENTERS
With interchangeable control units; Part size up to 220 mm (8.66”) diameter; bar stock capacity up to 45 mm (1.77”)
EQUIPMENT
- Stable, gray cast-iron inclined-bed construction
- Micro processor-controlled position monitoring
- Automatic referencing
- Industry-standard, stable, gray cast-iron inclined-bed construction
- Optimum guide ratio for the slides for maximum stability and precision
- Constant cutting speed
- Backlash-free storage of the Work spindle in precise, lifetime-lubricated tapered roller bearings
TECHNICAL DATA
WORK AREA
| Travel in X/Y/Z | 55 / – / 172 mm |
| Bar diameter | 18 mm |
| Max. turning diameter | 75 mm |
| Max. part length with tailstock | 121 mm |
| Swing over bed | 180 mm |
| Tool cross-section for outer machining | 12 x 12 mm |
| Tool cross-section for inner machining | Ø 16 |
| Rapid motion speeds in X/Y/Z | 5 m/min |
| Work feed X/Y/Z | 0-5 m/min |
| Feed force in X/Y/Z | 2000 N |
MAIN SPINDLE
| Max. speed | 4000 rpm |
| Spindle nose | EMCO |
| Max. drive power | 1,9 kW |
| Max. torque | 14 Nm |
TAILSTOCK
| Quill travel | 120 mm |
TOOL TURRET
| Number of tools | 8 |
GENERAL DATA

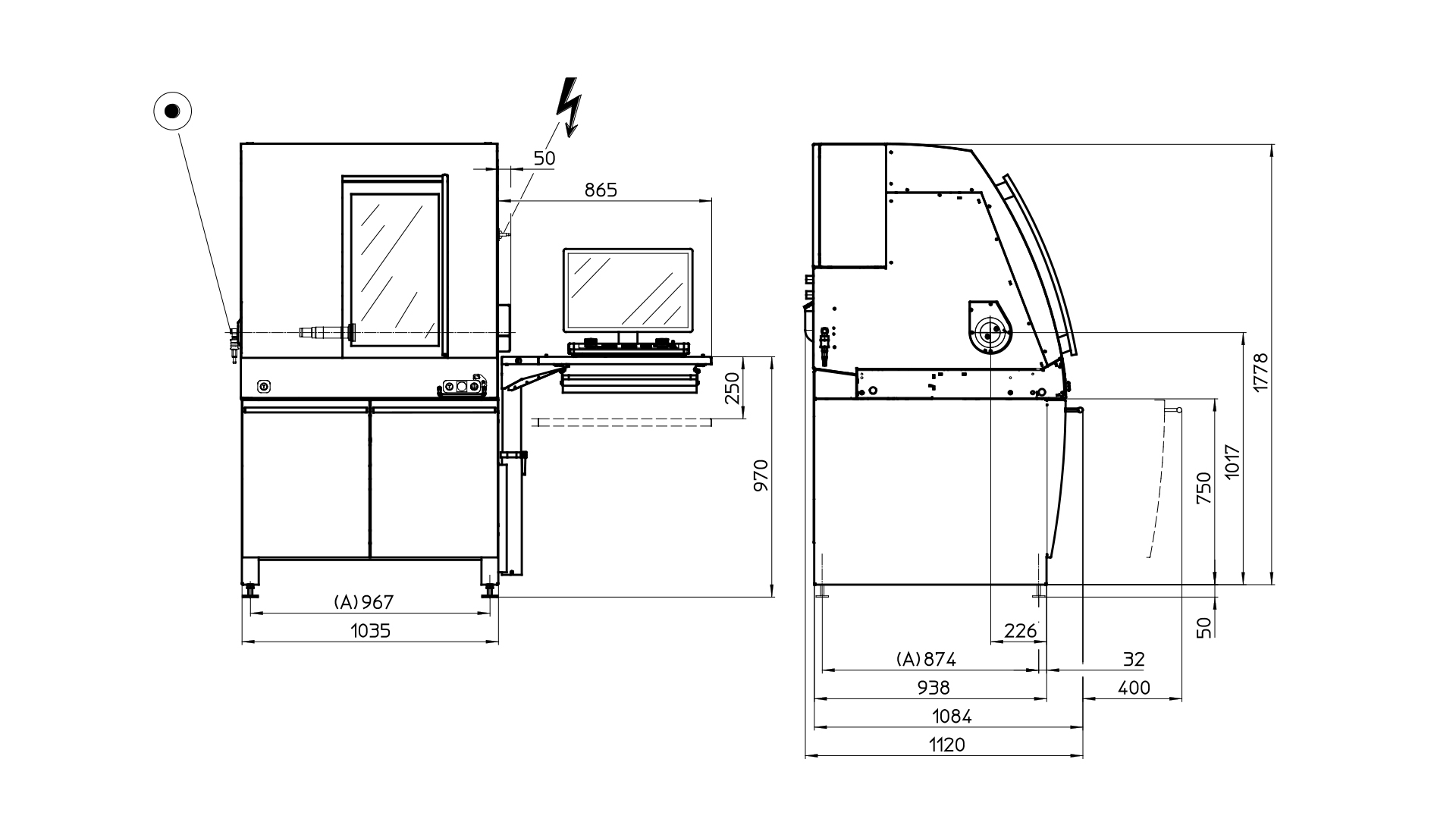

| Dimensions (LxWxH) | 1135 x 1100 x 1030 mm |
| Machine weight | 350 kg |
HIGHLIGHTS
- Clockwise – counterclockwise spindle rotation
- Industry-standard, stable gray cast iron construction
- Optimum guide ratio for the slides for maximum stability and precision
- Automatic referencing
- Backlash-free storage of the work spindle in precise, life tapered roller bearings
- Fully covered work area
- Constant cutting speed
- Micro processor-controlled monitoring position
