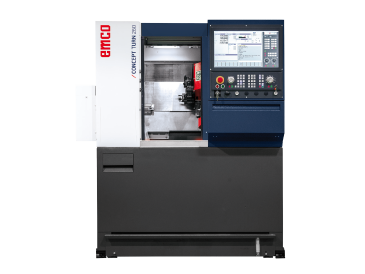

CONCEPT TURN 260

CNC TURNING CENTERS

With interchangeable control units; Part size up to 220 mm (8.66”) diameter; bar stock capacity up to 45 mm (1.77”)

EQUIPMENT

  • Integrated industrial PC with network and USB interface (front)
  • Programmable part collecting device
  • Easy2control user interface with 21,5″ touchscreen
  • Safety technology CE compliant
  • Thermostable head stock with high drive power and C axis
  • Various clamping device and tool holder packages
  • DNC-Robotic Interface
  • 12 x tool magazine with up to 6 driven tools
  • Synchronized main spindle C axis with up to 1000 rpm
  • State of the art drive technology, servomotors with absolut encoders

TECHNICAL DATA

WORK AREA

Travel in X/Y/Z 100/-/300 mm
Bar diameter 25.4 mm
Max. turning diameter 85 mm
Max. part length with tailstock 255 mm
Swing over bed 250 mm
Tool cross-section for outer machining 12 x 12 mm
Tool cross-section for inner machining Ø 16
Rapid motion speeds in X/Y/Z 15 / – / 24 m/min
Work feed X/Y/Z 0 – 12 m/min
Feed force in X/Y/Z 3000 / – / 3500 N

MAIN SPINDLE

Max. speed 6300 rpm
Spindle nose Ø 70 h5
Max. drive power 5.5 kW
Max. torque 35 Nm

TAILSTOCK

Quill travel 120 mm

TOOL TURRET

Number of tools 12 / VDI 16
Driven tools 6
Max. speed 6000 rpm
Max. drive power 1,2 kW
Max. torque 4 Nm

GENERAL DATA

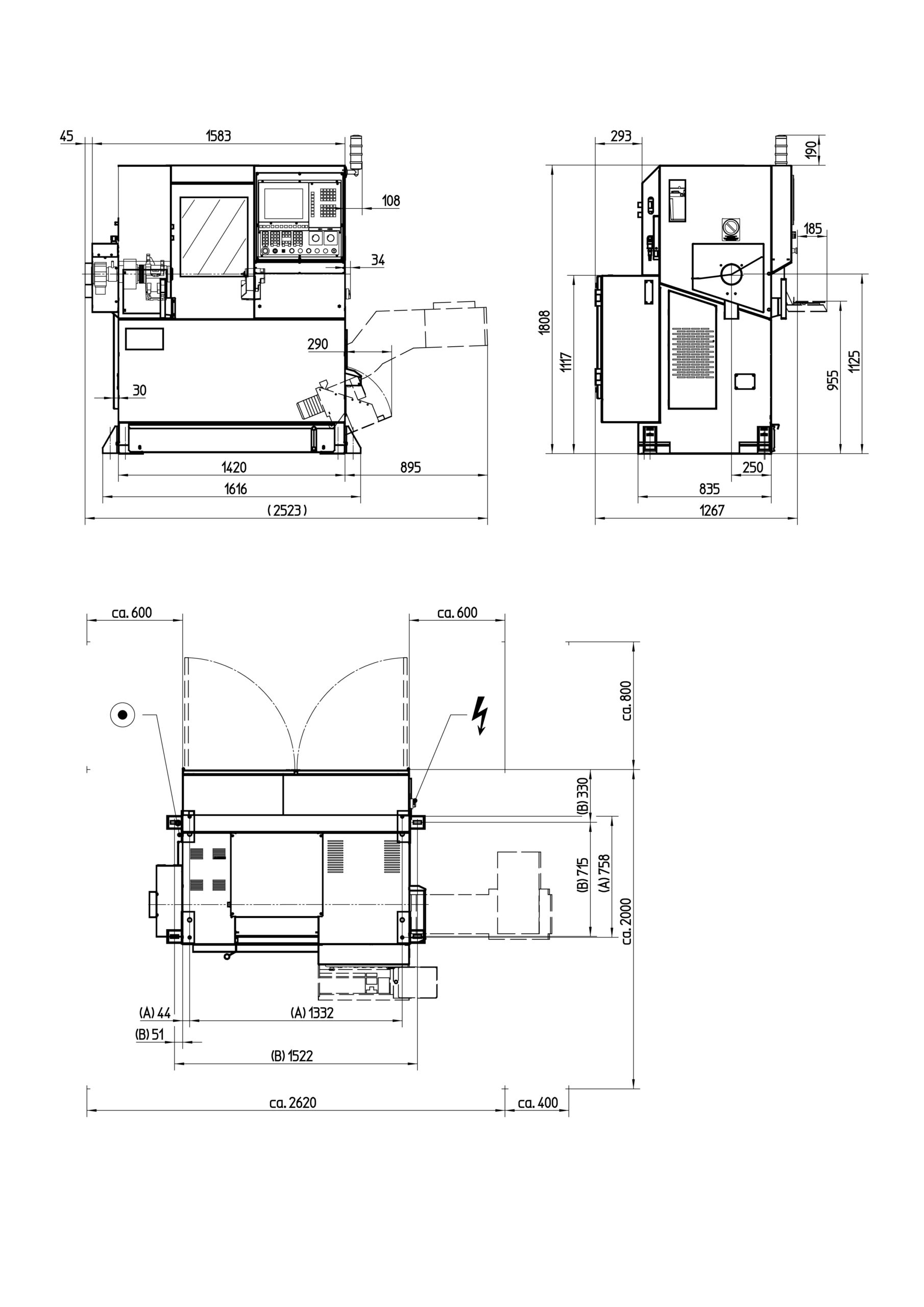

Dimensions (LxWxH) 1700 x 1270 x 1820 mm
Machine weight 1100 kg

HIGHLIGHTS

  • Integrated industrial PC with 21,5″ touchscreen (MOC-Touch)
  • Stable, industry-standard gray cast iron construction
  • High machining precision
  • Extraordinary dynamics
  • Many automation possibilities
  • Easy2control user interface
  • Various clamping devices and tool holder packages
  • Bar-stock diameter 25 mm: with bar-stock loader ideal for small part production
  • Thermostability for highest precision and contour fidelity
  • Interchangeable controls (WinNC)
  • MOC: integrated PC
  • Digital drives with high driven power
  • Driven tools with high machining power for drilling, thread and milling operations
