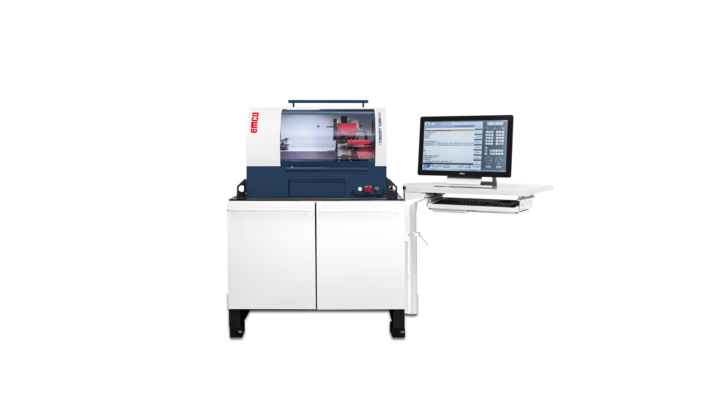

CONCEPT TURN 60

CNC TURNING CENTERS

With interchangeable control units; Part size up to 220 mm (8.66”) diameter; bar stock capacity up to 45 mm (1.77”)

CONCEPT TURN 60

EQUIPMENT

  • New design/ new colour: Target date upon request
  • Clockwise/counterclockwise spindle rotation
  • Safety technology according to the latest lathes standard
  • Automatic refrencing
  • Most compact table-top CNC turning machine
  • Profile rail guides (linear guides)
  • Infinitely adjustable main drive
  • High resolution axis motors
  • Industry-standard, stable, gray cast-iron inclined-bed construction
  • Premium industrial components
  • Automatic 8-position tool turret
  • Made in the Heart of Europe

TECHNICAL DATA

WORK AREA

  • Travel in X/Y/Z 60/-/280 mm
  • Bar diameter 15 mm
  • Max. part length with tailstock 60 mm
  • Max. part length 215 mm
  • Swing over bed 130 mm
  • Tool cross-section for outer machining 12 x 12
  • Tool cross-section for inner machining Ø 10
  • Rapid motion speeds in X/Y/Z 3/-/3 m/min
  • Work feed X/Y/Z 0 – 2 m/min
  • Feed force in X/Y/Z 1000 N

MAIN SPINDLE

  • Max. speed 300 – 4200 rpm
  • Spindle nose EMCO
  • Max. drive power 1,1 kW
  • Max. torque 10 Nm

TAILSTOCK

  • Quill travel 35 mm

TOOL TURRET

  • Number of tools 8

GENERAL DATA

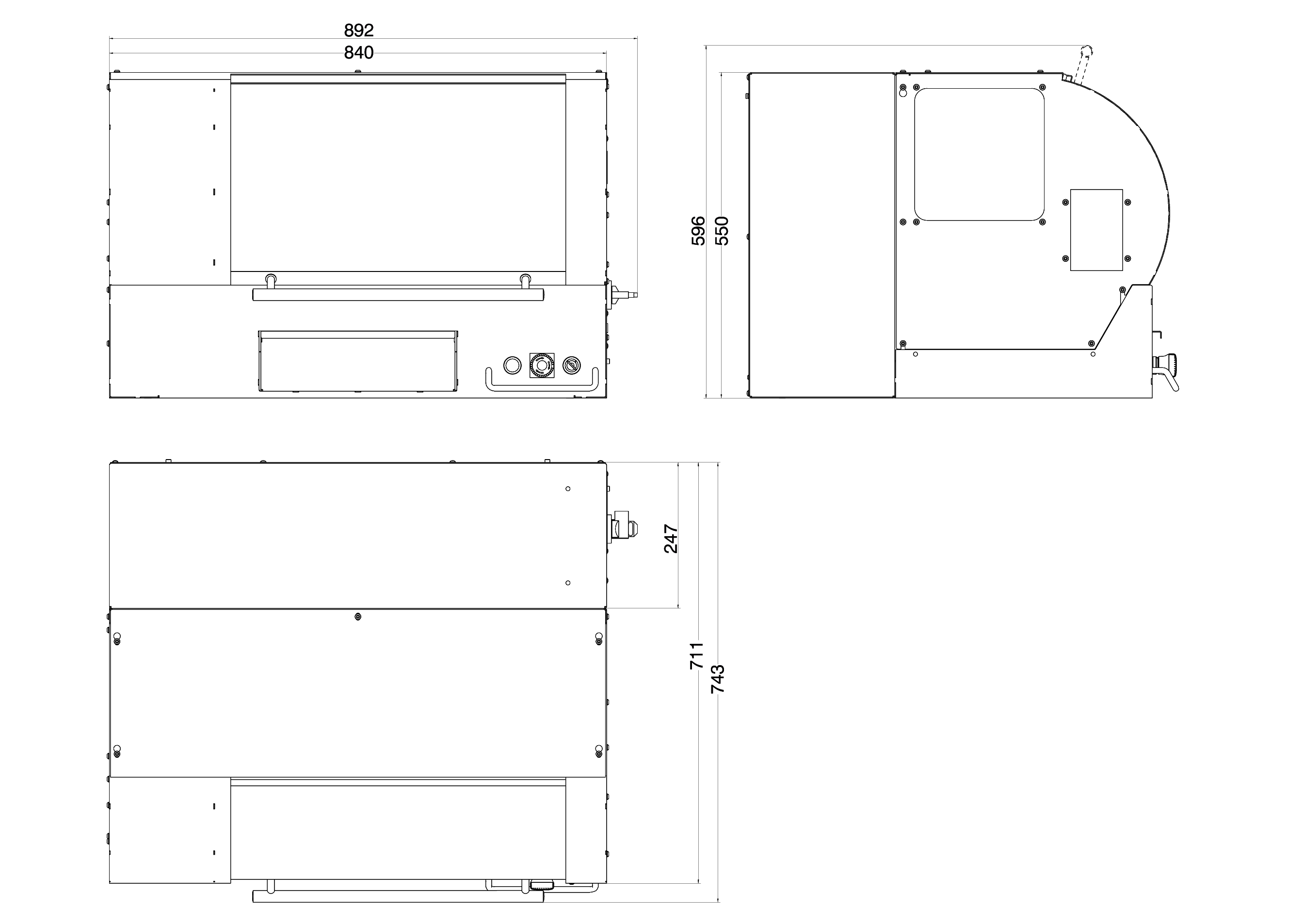

  • Dimensions (LxWxH) 895 x 745 x 550 mm

HIGHLIGHTS

  • Clockwise – counterclockwise spindle rotation
  • Industry-standard, stable gray cast iron construction
  • Optimum guide ratio for the slides for maximum stability and precision
  • Automatic referencing
  • Backlash-free storage of the work spindle in precise, life tapered roller bearings
  • Fully covered work area
  • Constant cutting speed
  • Micro processor-controlled monitoring position
