Highlights
- Made in Germany precision lathe
- Steel cylindrical guideways with 10-year warranty
- 1.4 kW variable speed motor
- Spindle speed range: 30 – 2300 rpm
- Main spindle bore: 30 mm
- Centre distance: 500 mm
- Centre height: 110 mm
- Maximum turning diameter: 210 mm
- 3-jaw chuck Ø125 mm included
- Suitable for metal, plastic and wood machining
Machine Description

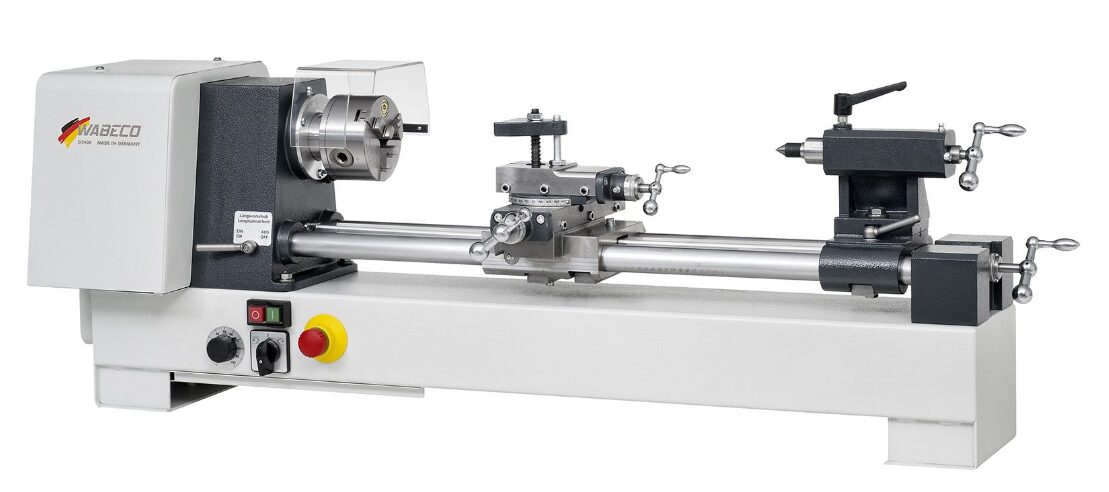

The WABECO D2400 H30 combines precision engineering with an extended bed length and larger spindle capacity, making it ideal for machining longer workpieces and larger diameter bar stock.
Built around precision-ground steel cylindrical guideways, the machine provides exceptional rigidity, excellent swarf removal and long-term machining accuracy. Its larger spindle bore and chuck capacity offer increased flexibility for a wide range of turning applications.
Steel Cylindrical Guideways
The machine features precision-ground cylindrical guideways manufactured from solid high-quality steel. This proven design offers excellent rigidity, outstanding durability and reliable long-term performance.
- Precision-ground solid steel guideways
- Excellent rigidity and stability
- Optimised swarf removal
- 10-year warranty on cylindrical guideways
Lead Screw & Feed System
The D2400 H30 is equipped with precision threaded feed screws and an integrated lead screw drive for automatic feed operations.
- Automatic longitudinal feed: 0.085 mm/rev
- Tumbler gear for left and right-hand threads
- Integrated overload clutch protection
- Thread cutting preparation as standard
- Optional change gear set for metric and imperial threading
Optional thread cutting capability allows production of metric threads from 0.25 mm to 6.0 mm pitch and imperial threads from 10 to 36 TPI.
Headstock & Drive System
The headstock incorporates two adjustable precision DIN tapered roller bearings, ensuring excellent spindle stability and machining accuracy.
An intermediate gear drive and quiet belt transmission provide smooth power delivery while minimising operating noise.
Tool Slide Assembly
The precision tool slide system features adjustable dovetail guideways with backlash-free adjustment and finely graduated handwheels for accurate machining control.
- Cross slide travel: 110 mm
- Longitudinal slide travel: 58 mm
- 360° swivelling compound slide
- Maximum tool height: 20 mm
- Scale ring accuracy: 0.05 mm
- Integrated swarf protection scrapers
Tailstock
The tailstock features rapid positioning and fine adjustment capabilities for accurate support of longer workpieces and drilling operations.
- MT2 Morse taper quill
- Quill travel: 45 mm
- Lateral adjustment: ±10 mm
- Quick adjustment system
Machine Accuracy
- Spindle nose runout: 0.005 mm
- Cylindrical turning at 100 mm cantilever: 0.01 mm
- Cylindrical turning over 300 mm between centres: ±0.015 mm
- Manufactured to DIN 8606 standards
Dimensions & Weight
- Machine dimensions: 1200 x 410 x 420 mm
- Machine weight: 65 kg
Demonstration Machine
This demonstration machine is approximately four weeks old and has been geometrically inspected and supplied with a test report. As demonstration machines are unique items, availability is subject to prior sale.
Warranty & Support
- 5-year manufacturer warranty (excluding wear parts)
- 10-year warranty on steel cylindrical guideways
- Long-term spare parts availability guaranteed
