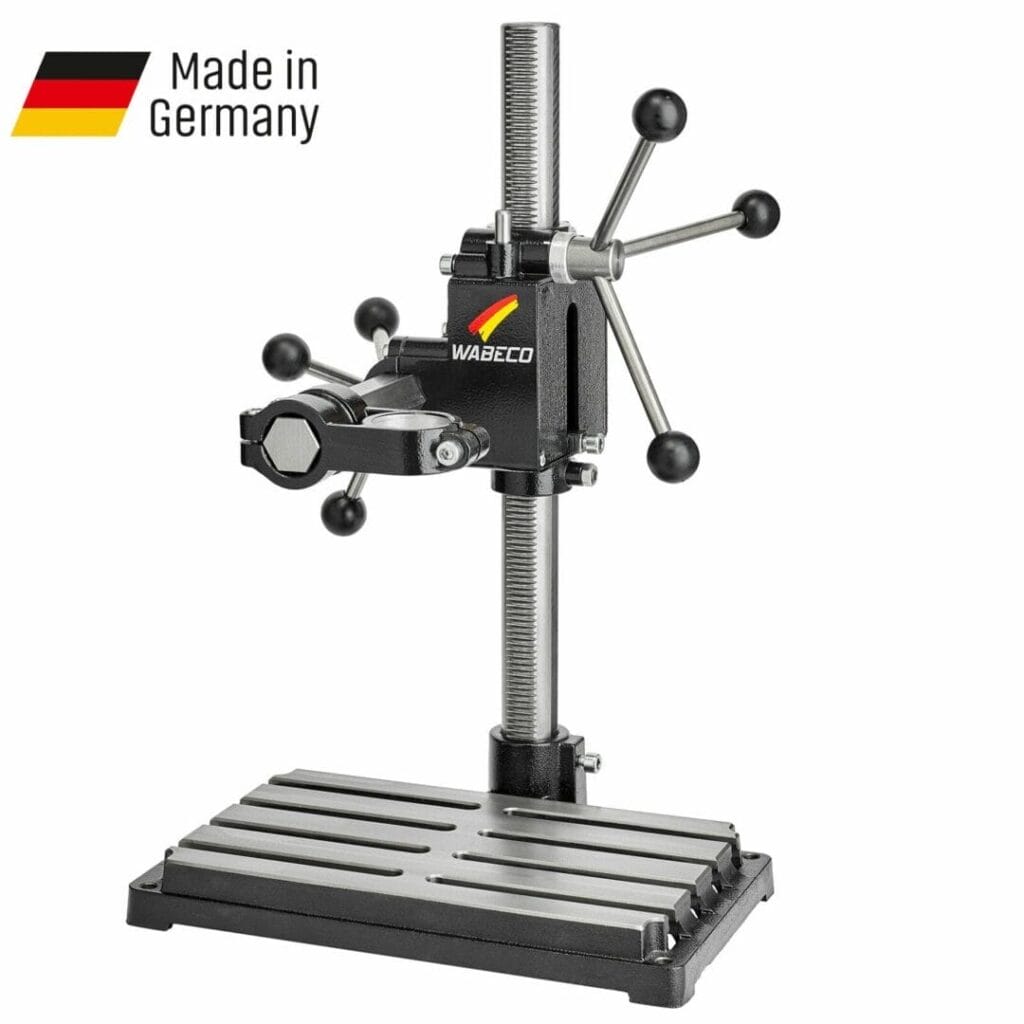

Drilling Milling Stand BF1240-3SD with 3-Spoke Hub Z- and Y-Axis

The BF1240-3SD drilling and milling stand has two infeed axes for vertical and horizontal drilling and milling work, with factory-installed three-spoke hubs on the Z- and Y-axes for convenient feed control. Its rotating steel column allows machining from all sides and accommodates larger workpieces, providing a flexible, space-saving alternative to table, pillar and column drilling machines.

bf1240 3sd with 3 spoke hub z and y axis

Features

Two infeed axes

  • For vertical and horizontal drilling and milling work
  • Z-axis: vertical infeed axis for drilling work
  • Y-axis: horizontal infeed axis for milling work

Rotating column

  • The steel column can be rotated through 360° in the base plate and locked in any position, enabling machining from all sides and the machining of larger workpieces

Space-saving design

  • Flexible and space-saving alternative to table drilling machines, pillar drilling machines and column drilling machines

Precise drilling and milling

  • The workpiece can be positioned precisely under the tools

Design

  • Steel column with a total height of 500 mm
  • Hexagonal steel boom with a total length of 350 mm

Working range

  • Z-axis travel: 250 mm
  • Y-axis travel: 175 mm

Equipment

Three-spoke hubs on the Z- and Y-axes

  • Convenient infeed of the Z- and Y-axes using three feed levers
  • Vertical infeed on the Z-axis
  • Horizontal infeed on the Y-axis
  • Adjustable scale rings
  • Factory installed

Applications

  • Drilling, milling, woodturning and turning
  • Processing metal, wood and plastics

Technical Data

Working range

  • Vertical travel Z-axis without retaining spring: 250 mm
  • Vertical drill stroke with retaining spring: 55 mm
  • Transverse travel Y-axis: 175 mm

Solid steel column

  • Total height: 500 mm
  • Made of solid components: Included
  • With milled toothing Ø: 35 mm
  • Can be rotated through 360° in the base plate: Included

Hexagonal steel boom

  • Total length: 350 mm
  • Made of solid components: Included
  • With milled toothing: 30 mm

Guide housing

  • 2 re-adjustable guide rollers: Included
  • Depth stop for always drilling workpieces to exactly the same depth: Included
  • Feed lever Z-axis with adjustable scale ring: Included
  • Feed lever Y-axis with adjustable scale ring: Included
  • Lockable Z- and Y-axis with 2 clamping screws: Included

Machine support

  • For mounting drive units with European standard Ø 43 mm: Included
  • Swivelling through 360° with lock every 15°: Included

Base plate

  • Made of grey cast iron: Included
  • Surface-milled clamping surface: 300 x 180 mm
  • Number of slots: 4
  • Slot width suitable for 10 mm T-slot nuts or M10 hexagon bolts: Included

Weight

  • Weight without packaging: 14.1 kg
