Drilling Milling Stand BF1242 with Milling Work Table

The BF1242 drilling and milling stand with milling work table has two infeed axes for vertical and horizontal drilling and milling work. The supplied 180 mm diameter table has adjustable height and allows workpieces to be rotated and swivelled for angled drilling, chamfer milling and circular machining. The stand’s rotating steel column allows machining from all sides and accommodates larger workpieces, providing a flexible, space-saving alternative to table, pillar and column drilling machines.

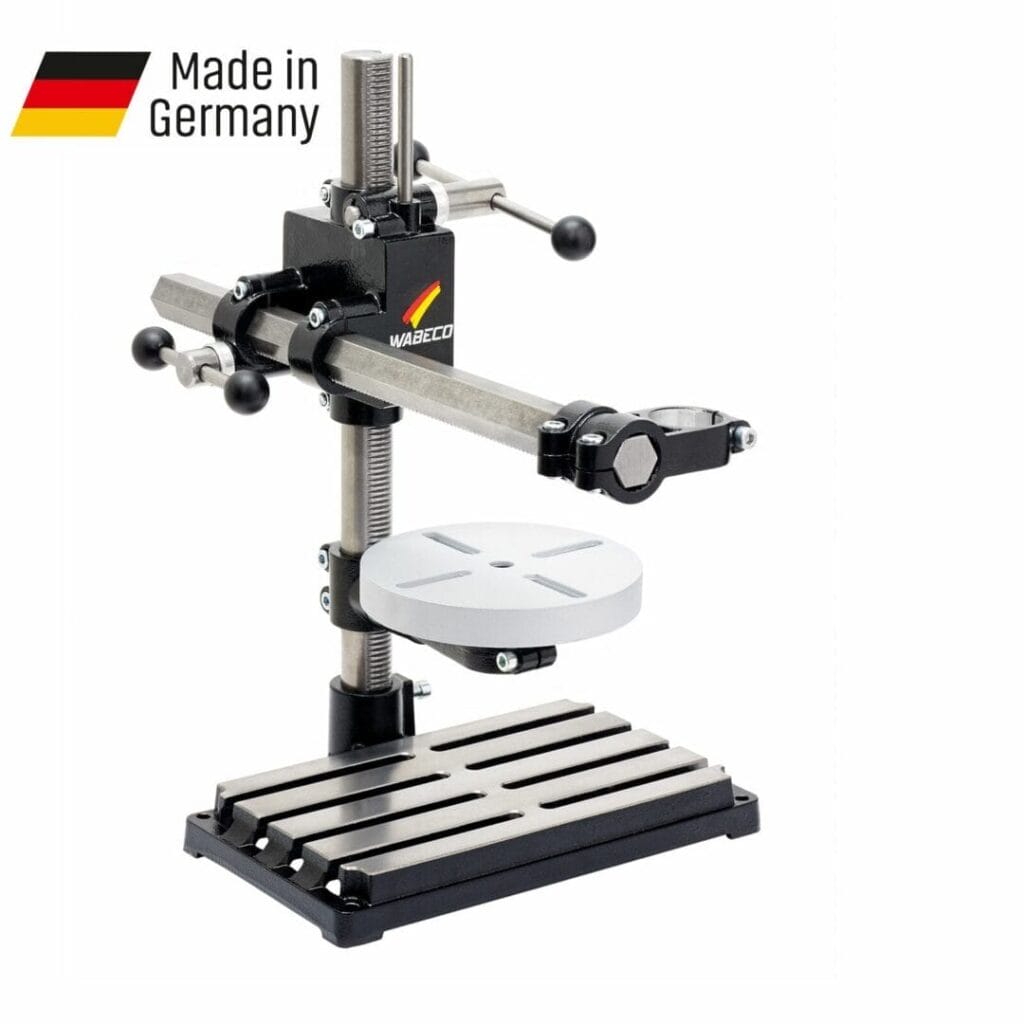

bf1242 with milling work table featured

Features

Two infeed axes

  • For vertical and horizontal drilling and milling work
  • Z-axis: vertical infeed axis for drilling work
  • Y-axis: horizontal infeed axis for milling work

Rotating column

  • The steel column can be rotated through 360° in the base plate and locked in any position, enabling machining from all sides and the machining of larger workpieces

Space-saving design

  • Flexible and space-saving alternative to table drilling machines, pillar drilling machines and column drilling machines

Precise drilling and milling

  • The workpiece can be positioned precisely under the tools

Design

  • Steel column with a total height of 500 mm
  • Hexagonal steel boom with a total length of 500 mm

Working range

  • Z-axis travel: 250 mm
  • Y-axis travel: 325 mm

Equipment

Milling work table

  • Table diameter: 180 mm
  • Adjustable height
  • For rotating and swivelling workpieces
  • Milling work table can be rotated through 360° around the steel column
  • Milling work table can be swivelled through 360°
  • Clamping table with four slots can be rotated through 360° in the mount

Applications

  • Drilling, milling, woodturning and turning
  • Processing metal, wood and plastics

Milling work table applications

  • Angled drilled holes, including 45° drilled holes
  • Angled surfaces, including chamfer milling
  • Circular machining

Technical Data

Working range

  • Vertical travel Z-axis without retaining spring: 250 mm
  • Vertical drill stroke with retaining spring: 55 mm
  • Transverse travel Y-axis: 325 mm

Solid steel column

  • Total height: 500 mm
  • Made of solid components: Included
  • With milled toothing Ø: 35 mm
  • Can be rotated through 360° in the base plate: Included

Hexagonal steel boom

  • Total length: 500 mm
  • Made of solid components: Included
  • With milled toothing: 30 mm

Guide housing

  • 2 re-adjustable guide rollers: Included
  • Depth stop for always drilling workpieces to exactly the same depth: Included
  • Feed lever Z-axis with adjustable scale ring: Included
  • Feed lever Y-axis with adjustable scale ring: Included
  • Lockable Z- and Y-axis with 2 clamping screws: Included

Machine support

  • For mounting drive units with European standard Ø 43 mm: Included
  • Swivelling through 360° with lock every 15°: Included

Base plate

  • Made of grey cast iron: Included
  • Surface-milled clamping surface: 300 x 180 mm
  • Number of slots: 4
  • Slot width suitable for 10 mm T-slot nuts or M10 hexagon bolts: Included

Weight

  • Weight without packaging: 15.0 kg

Milling work table

  • Table diameter: 180 mm
  • Height: Adjustable
  • Rotation around steel column: 360°
  • Swivel range: 360°
  • Clamping table rotation in mount: 360°
  • Number of clamping table slots: 4
