Drilling Milling Stand BF1243 with Machine Vice V1

The BF1243 drilling and milling stand with machine vice V1 has two infeed axes for vertical and horizontal drilling and milling work. The supplied quick-adjustment machine vice holds workpieces securely. The stand’s rotating steel column allows machining from all sides and accommodates larger workpieces, providing a flexible, space-saving alternative to table, pillar and column drilling machines.

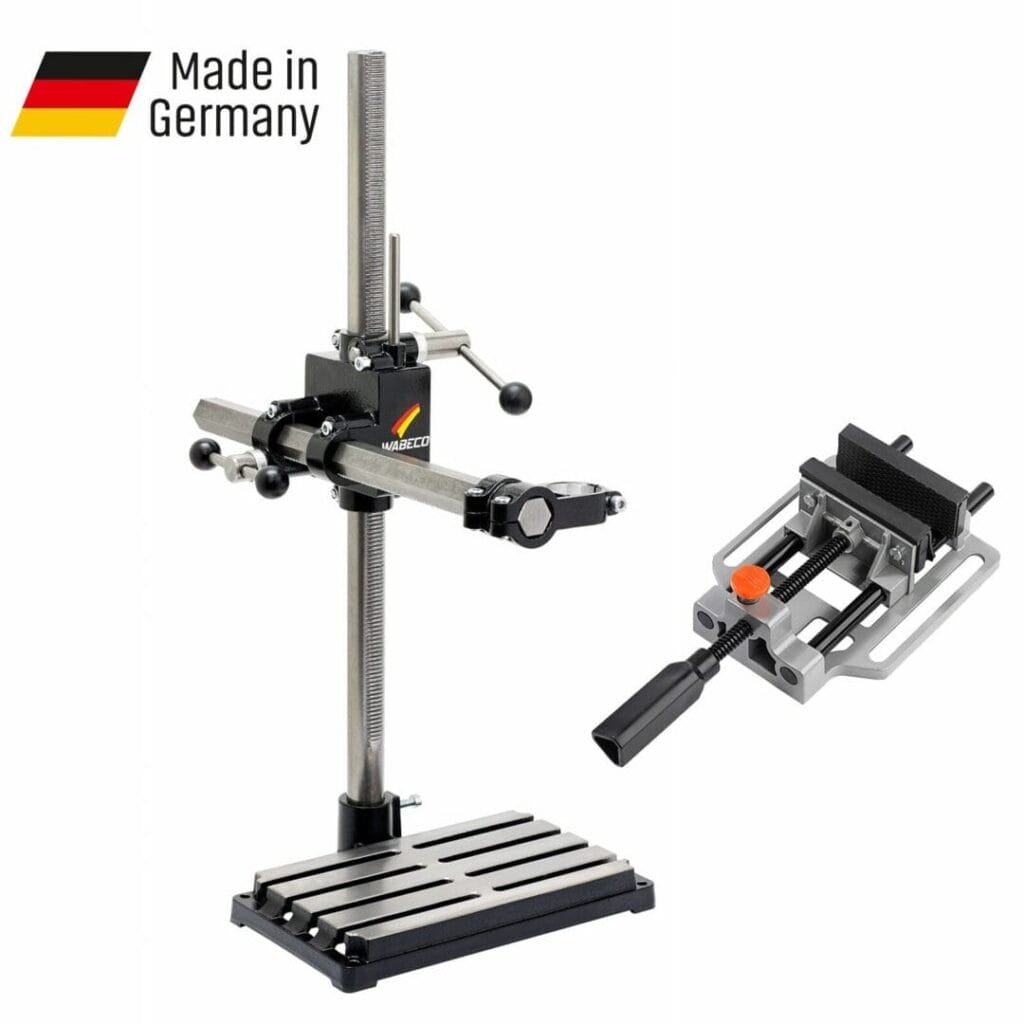

bf1243 with machine vice v1 featured

Features

Two infeed axes

  • For vertical and horizontal drilling and milling work
  • Z-axis: vertical infeed axis for drilling work
  • Y-axis: horizontal infeed axis for milling work

Rotating column

  • The steel column can be rotated through 360° in the base plate and locked in any position, enabling machining from all sides and the machining of larger workpieces

Space-saving design

  • Flexible and space-saving alternative to table drilling machines, pillar drilling machines and column drilling machines

Precise drilling and milling

  • The workpiece can be positioned precisely under the tools

Design

  • Steel column with a total height of 750 mm
  • Hexagonal steel boom with a total length of 500 mm

Working range

  • Z-axis travel: 500 mm
  • Y-axis travel: 325 mm

Equipment

Machine vice V1 with quick adjustment

  • For clamping workpieces
  • Double pillar guide
  • Rubber protective jaws
  • Horizontal and vertical V-grooves for round material
  • Open base plate for clamping or through-drilling workpieces
  • Trapezoidal thread spindle

Applications

  • Drilling, milling, woodturning and turning
  • Processing metal, wood and plastics

Technical Data

Working range

  • Vertical travel Z-axis without retaining spring: 500 mm
  • Vertical drill stroke with retaining spring: 55 mm
  • Transverse travel Y-axis: 325 mm

Solid steel column

  • Total height: 750 mm
  • Made of solid components: Included
  • With milled toothing Ø: 35 mm
  • Can be rotated through 360° in the base plate: Included

Hexagonal steel boom

  • Total length: 500 mm
  • Made of solid components: Included
  • With milled toothing: 30 mm

Guide housing

  • 2 re-adjustable guide rollers: Included
  • Depth stop for always drilling workpieces to exactly the same depth: Included
  • Feed lever Z-axis with adjustable scale ring: Included
  • Feed lever Y-axis with adjustable scale ring: Included
  • Lockable Z- and Y-axis with 2 clamping screws: Included

Machine support

  • For mounting drive units with European standard Ø 43 mm: Included
  • Swivelling through 360° with lock every 15°: Included

Base plate

  • Made of grey cast iron: Included
  • Surface-milled clamping surface: 300 x 180 mm
  • Number of slots: 4
  • Slot width suitable for 10 mm T-slot nuts or M10 hexagon bolts: Included

Weight

  • Weight without packaging: 16.7 kg

Machine vice V1

  • Jaw width: 100 mm
  • Clamping width: 100 mm
  • Jaw height: 35 mm
  • Vice weight: 1.6 kg
