ECOMAT E-200 MC

UNIVERSAL TURNING MACHINES WITH CYCLE CONTROL

Precision cycle controlled lathes Center height: 200 to 510 mm (6.30 to 20.08”)Center distance: 1000 to 6000 mm (39.37 to 236.22”)

EQUIPMENT

  • New design/ new colour: Target date upon request
  • Fully covered work area with 2 sliding chip protection doors
  • Mounted ball screws in X and Z axis
  • Coolant device
  • Electric central lubrication
  • Sinumerik 828D
  • Manual tailstock

TECHNICAL DATA

WORK AREA

Travel in X/Y/Z 220/-/900 mm
Spindle bore hole 53/50 mm
Distance between centers 1000 mm
Distance above centers 200 mm
Rapid motion speeds in X/Y/Z 10 m/min
Feed force in X/Y/Z 4 kN

MAIN SPINDLE

Max. speed 4000 rpm
Spindle nose Size 5; DIN 55029
Max. drive power 7.5 / 10 kW
Max. torque 108 Nm

TAILSTOCK

Quill diameter 50 mm
Quill travel 120 mm
Inner quill taper MT3

GENERAL DATA

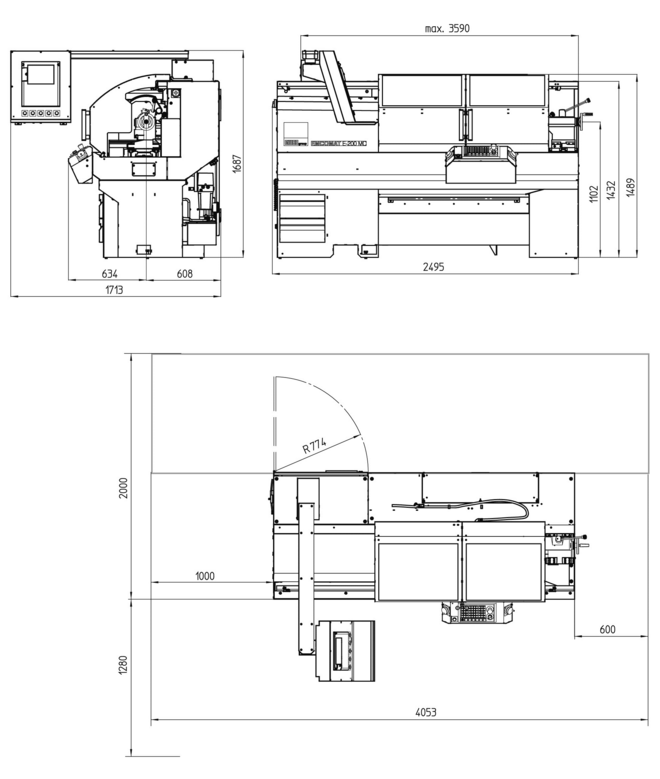

Dimensions (LxWxH) 2320 x 1730 x 1700 mm
Machine weight 1500 kg

HIGHLIGHTS

  • High cutting power
  • Electronic handwheels are available for manual operation of X and Z axis
  • High quality casting with strong ribs for low-vibration machining operations
  • Made in the Heart of Europe
  • Fully automatic central lubrication of the X and Z slides and the recirculation ball spindles
