Highlights
- 450 x 350 x 400 mm axis travels
- Vertical and horizontal milling capability
- Rigid vibration-damping cast iron machine frame
- Powerful 10 kW spindle drive
- Spindle speed range from 10 to 5,000 rpm
- Precision linear guideways on all axes
- Sinumerik 828D or Heidenhain TNC 620 CNC control options
- Stepless automatic feed in X, Y and Z axes
- Integrated coolant system
- Ideal for toolmaking, education and production machining
Machine Overview

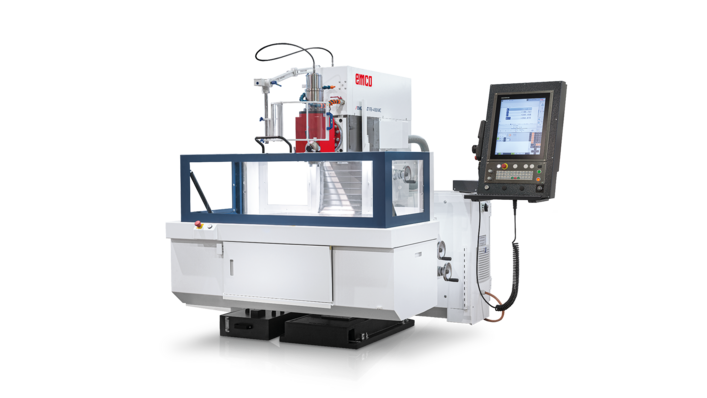

The Emcomat FB-450 MC has been developed to provide maximum flexibility and productivity within a compact machine footprint. Its ability to switch between vertical and horizontal milling operations makes it suitable for a wide range of machining applications, from prototype manufacture and toolmaking through to production-oriented machining tasks.
Built around a heavy-duty cast iron machine stand and equipped with advanced CNC controls, the FB-450 MC delivers consistent precision, excellent surface finishes and long-term reliability.
Machine Construction
The machine features a rigid cast iron construction designed to absorb vibration and maintain machining accuracy even during demanding operations.
- Compact cast iron machine stand
- Excellent vibration damping characteristics
- Hardened and ground shafts and gears
- Integrated spindle brake
- Fully enclosed guarding system
Linear Guideway System
Precision linear guideways provide smooth motion, high positioning accuracy and exceptional rigidity across all machine axes.
- Linear guideways in X, Y and Z axes
- High repeatability and positioning precision
- Reduced friction and wear
- Improved machining performance and surface finish quality
Vertical and Horizontal Milling Capability
The FB-450 MC combines vertical and horizontal milling functionality in a single machine, providing exceptional machining flexibility.
Vertical Milling
- Swivelling vertical milling head
- Manual quill feed for drilling operations
- Ideal for angled and complex machining tasks
- End-switch controlled swivel mechanism
Horizontal Milling
- Horizontal milling spindle with DIN 69871 SK40 interface
- Suitable for heavy-duty milling operations
- Improved rigidity for demanding machining applications
Feed System
- Automatic stepless feed in X, Y and Z axes
- Feed rates from 10 to 2,000 mm/min
- Rapid traverse speed up to 5,000 mm/min
- High feed force for productive machining
Safety Features
- Retractable workspace guard
- Large front chip shield
- Protective covers for operator safety
- Mechanical safety handwheels with scale rings
- Integrated spindle braking system
Coolant System
An integrated coolant system supports efficient chip evacuation, improved tool life and enhanced machining performance during extended production runs.
Typical Components Produced
- Steel gear wheels
- Pneumatic distributors
- Drilling flanges
- Prototype components
- Precision machined production parts
Dimensions and Weight

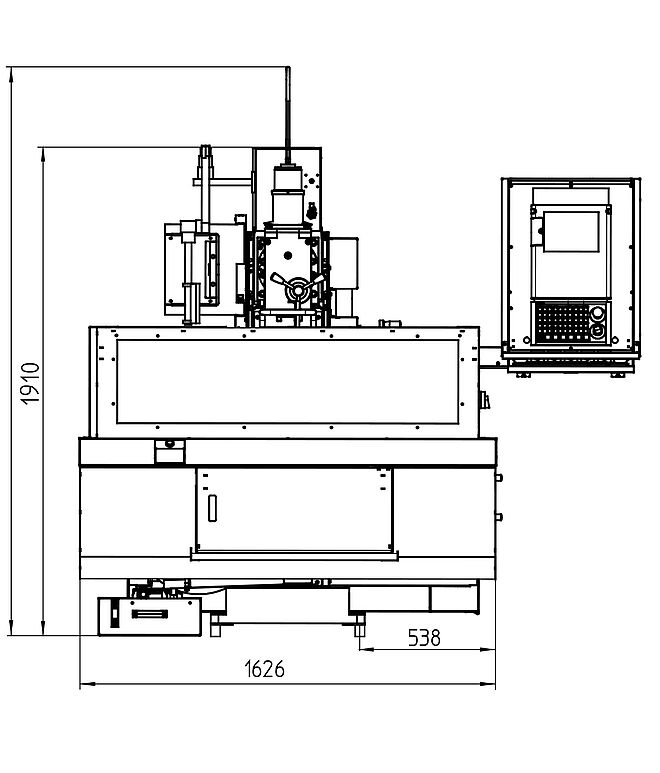

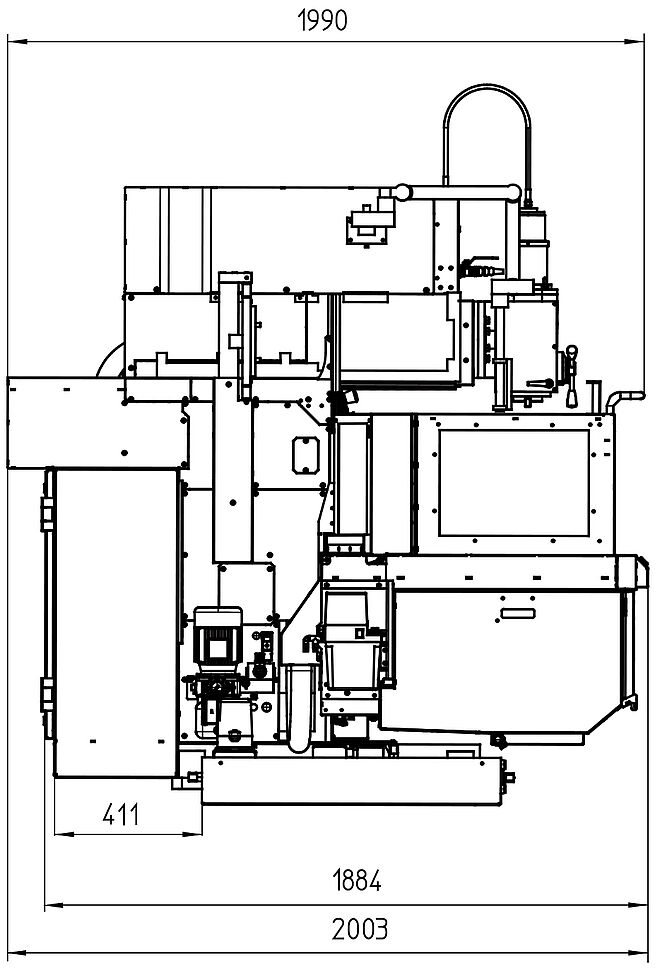

- Machine dimensions: 1,980 x 2,030 x 1,990 mm
- Machine weight: 2,270 kg
Summary
The Emcomat FB-450 MC combines CNC precision, vertical and horizontal milling flexibility, advanced control systems and a robust cast iron construction in a compact machine platform. With powerful spindle performance, precision linear guideways and professional CNC control options, it is ideally suited for toolmaking, prototype development, production machining and educational applications.
