EMCOTURN E25

Modular CNC turning machines for economic machining of chuck, shaft and bar stock parts; bar sizes 25-95mm.

EMCOTURN E25

EQUIPMENT

  • Main spindle with large speed range Tool turret with 12 VDI16 tool stations
  • Driven tools C axis for main spindle Manual tailstock with automatic quill
  • State-of-the-art drive and control technology Sinumerik 828D or Fanuc 0iTD with dialogue programming system

TECHNICAL DATA

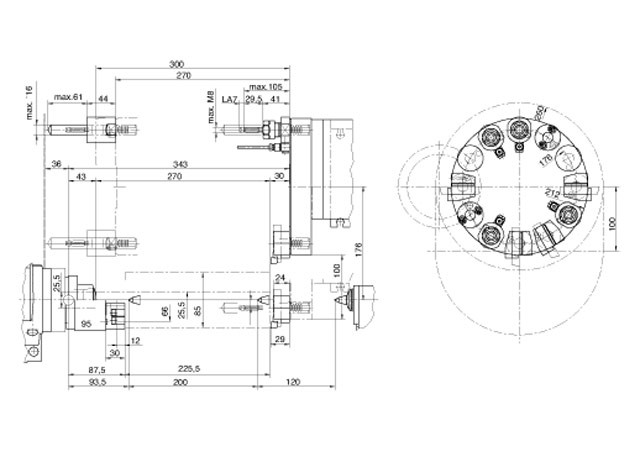

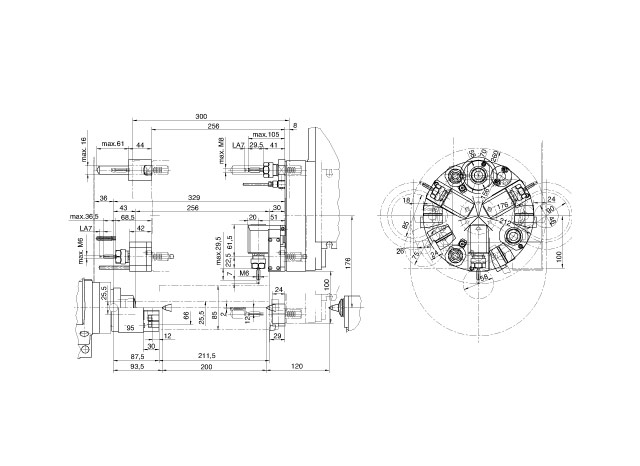

WORK AREA

Travel in X/Y/Z 100 / – / 300 mm
Bar diameter 25.5 mm
Max. turning diameter 85 mm
Swing over bed 250 mm

MAIN SPINDLE

Max. speed 6300 rpm
Spindle nose ø70mm h5
Max. drive power 5.5 kW
Max. torque 35 Nm

TAILSTOCK

Automatic tailstock nein
Travel (automatic) 120 mm
Quill travel 120 mm

TOOL TURRET

VDI size 16
Number of tools 12
Driven tools 6
Max. speed 6000 rpm
Max. drive power 1.2 kW
Max. torque 4 Nm

GENERAL DATA

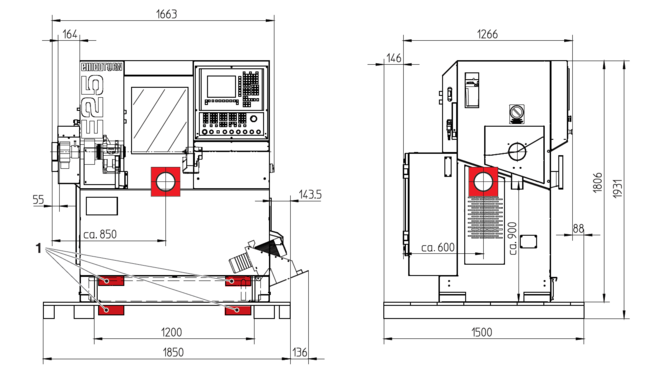

Dimensions (LxWxH) 1700 x 1270 x 1820 mm
Machine weight 1100 kg

HIGHLIGHTS

  • Extremely compact machine dimensions
  • Precision Headstock with excellent concentricity properties
  • Prestressed roller guideways in all axes
  • Dynamic servo motors for economic chipping
