Highlights
- Made in Germany precision milling machine
- Extended 500 mm X-axis travel
- Rigid dovetail guideways on all axes
- ISO30 spindle taper (DIN 2080)
- 1.4 kW variable speed motor
- Spindle speed range: 140 – 3000 rpm
- 500 x 150 x 280 mm axis travel
- 700 x 180 mm clamping table
- Suitable for milling, drilling and precision machining applications
Machine Description

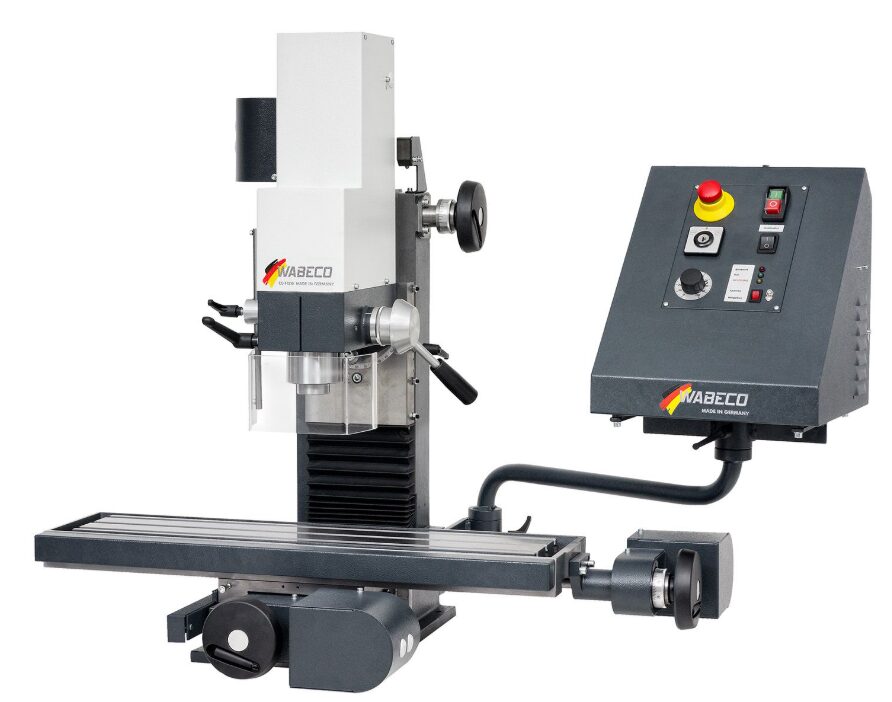

The WABECO F1210 ISO30 combines a generous working area with exceptional machining precision. The ISO30 spindle system provides increased rigidity and professional tooling compatibility, making the machine ideal for demanding milling operations while maintaining outstanding accuracy.
Built using high-quality cast iron construction and precision-engineered components, the F1210 ISO30 offers smooth operation, excellent stability and long-term reliability.
Dovetail Guideways
Precision dovetail guideways provide excellent rigidity and repeatable machining accuracy across all axes.
- Dovetail guideways on X, Y and Z axes
- Backlash-free adjustable design
- High workpiece accuracy
- Two protective bellows for guideway protection
Feed Screw System
The machine is equipped with precision trapezoidal thread spindles designed for smooth and accurate positioning.
- Trapezoidal feed screws on all axes
- Adjustable bronze double nuts
- Scale ring accuracy: 0.05 mm
Optional ball screw upgrades are available, providing enhanced positioning accuracy, backlash-free operation and extended service life.
Spindle & Tool Holder
The ISO30 spindle system provides exceptional rigidity and compatibility with a wide range of professional milling tooling.
- ISO30 spindle taper (DIN 2080)
- M12 drawbar thread
- Spindle runout accuracy: 0.01 mm
- Optional clockwise and counter-clockwise spindle rotation
- Suitable for thread-cutting applications
Milling Head
The milling head can be positioned for a wide range of machining operations.
- Swivels from -90° to +90°
- Large angle scale for easy setup
- Precision locating pin system
- Integrated safety guard
Quill & Fine Feed System
The precision quill assembly makes the machine equally suitable for drilling and milling operations.
- 55 mm quill stroke
- Integrated drilling depth stop
- Full-surface quill clamping system
- Fine feed mechanism on the Z-axis
- Quill scale accuracy: 0.1 mm
Machine Construction
The F1210 ISO30 is built from high-quality ribbed grey cast iron to maximise rigidity and vibration damping.
- Cast iron column and base
- Precision anti-friction spindle bearings
- Wide toothed belt drive
- Smooth and quiet operation
- Axis locking system for improved surface finish
Machine Accuracy
- Manufactured to DIN 8615 standards
- Spindle runout accuracy: 0.01 mm
- Scale ring accuracy: 0.05 mm
- Quill scale accuracy: 0.1 mm
Dimensions & Weight
- Machine dimensions: 900 x 625 x 700 mm
- Machine weight: 101 kg
Demonstration Machine
This demonstration machine is approximately four weeks old and has been geometrically inspected and supplied with a test report. As demonstration machines are individual items, availability is subject to prior sale.
Warranty & Support
- 5-year manufacturer warranty (excluding wear parts)
- Long-term spare parts availability guaranteed
