Highlights
- Made in Germany precision milling machine
- High-performance 2.5 kW servo motor
- Variable spindle speed range from 100 to 7500 rpm
- 500 mm X-axis travel
- Rigid dovetail guideways on all axes
- MT2 spindle taper with M10 drawbar thread
- 700 x 180 mm clamping table
- Suitable for milling, drilling, engraving and precision machining
- Thread cutting capability with forward and reverse spindle rotation

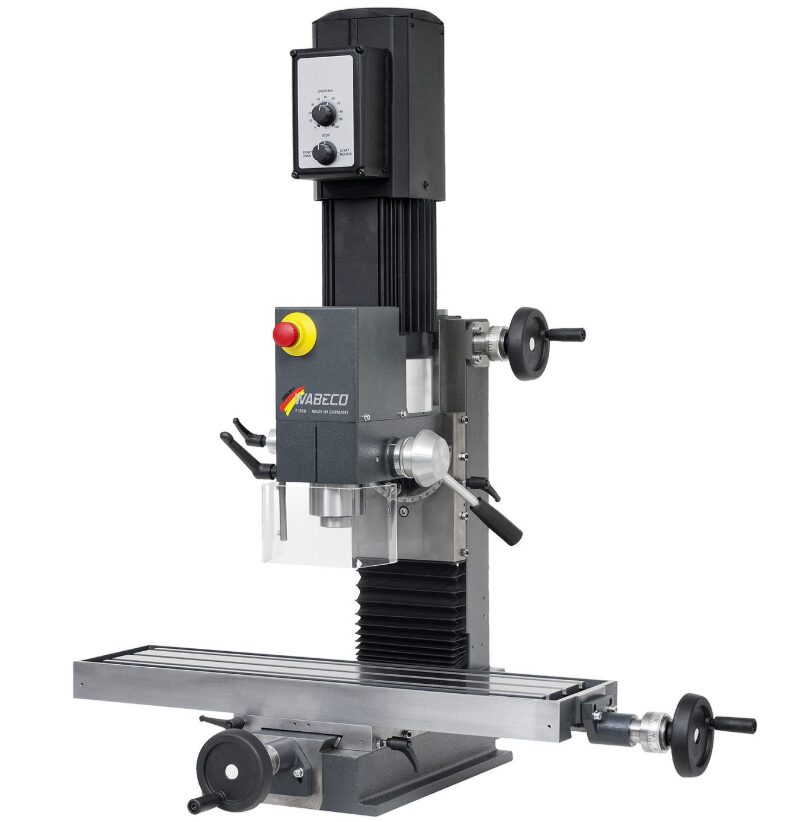

Machine Description
The WABECO F1220 HS MT2 combines an extended machining area with a powerful high-speed spindle drive, making it ideal for precision milling, drilling and engraving applications. The brushless servo motor provides outstanding torque throughout the entire speed range while maintaining smooth and accurate spindle control.
Engineered and manufactured in Germany, the machine offers exceptional build quality, long-term reliability and outstanding machining precision.
Dovetail Guideways
Precision dovetail guideways provide excellent rigidity and smooth movement, ensuring exceptional machining accuracy across all axes.
- Dovetail guideways on X, Y and Z axes
- Adjustable backlash-free design
- High rigidity and stability
- Two protective bellows for guideway protection
Feed Screw System
The machine is equipped with precision trapezoidal thread spindles for accurate positioning and reliable long-term operation.
- Trapezoidal feed screws on all axes
- Adjustable bronze double nuts
- Scale ring accuracy: 0.05 mm
Optional ball screw upgrades are available for applications requiring enhanced positioning accuracy, reduced backlash and improved efficiency.
Spindle & Tool Holder
The MT2 spindle system offers excellent versatility and compatibility with a wide range of tooling.
- MT2 spindle taper
- M10 drawbar thread
- Spindle runout accuracy: 0.01 mm
- Forward and reverse spindle rotation
- Suitable for thread cutting operations
High-Speed Performance
The advanced high-speed spindle system allows the machine to handle both heavy-duty milling operations and fine engraving applications with equal precision.
- Speed range from 100 to 7500 rpm
- Excellent low-speed torque
- Outstanding performance when machining difficult materials
- Suitable for small cutters and engraving tools
Milling Head
- Head swivels from -90° to +90°
- Large angle scale for easy setup
- Precision indexing system
- Integrated safety guard
Quill & Fine Feed System
The quill assembly provides excellent drilling and milling capabilities.
- 55 mm quill stroke
- Integrated drilling depth stop
- Full-surface quill clamping
- Fine Z-axis feed mechanism
- Quill scale accuracy: 0.1 mm
Machine Construction
The F1220 HS MT2 is constructed from high-quality ribbed grey cast iron to provide excellent vibration damping and machining stability.
- Cast iron column and base
- Precision spindle bearing system
- Wide toothed belt drive
- Smooth and quiet operation
- Axis locking system for improved surface finish
Machine Accuracy
- Manufactured to DIN 8615 standards
- Spindle runout accuracy: 0.01 mm
- Scale ring accuracy: 0.05 mm
- Quill scale accuracy: 0.1 mm
Dimensions & Weight
- Machine dimensions: 900 x 625 x 900 mm
- Machine weight: 112 kg
Demonstration Machine
This demonstration machine is approximately four weeks old and has been geometrically measured and supplied with a test report. As demonstration machines are individual units, availability is subject to prior sale.
Warranty & Support
- 5-year manufacturer warranty (excluding wear parts)
- Long-term spare parts availability guaranteed
