Highlights
- Made in Germany premium milling machine
- High-speed spindle with 100 – 7,500 rpm range
- Powerful 2.5 kW brushless servo motor
- Maintenance-free linear guideways on all axes
- MT2 spindle taper with M10 drawbar
- 500 mm X-axis travel
- 200 mm Y-axis travel
- 700 x 180 mm clamping table
- Ideal for milling, drilling, engraving and precision machining
Machine Description

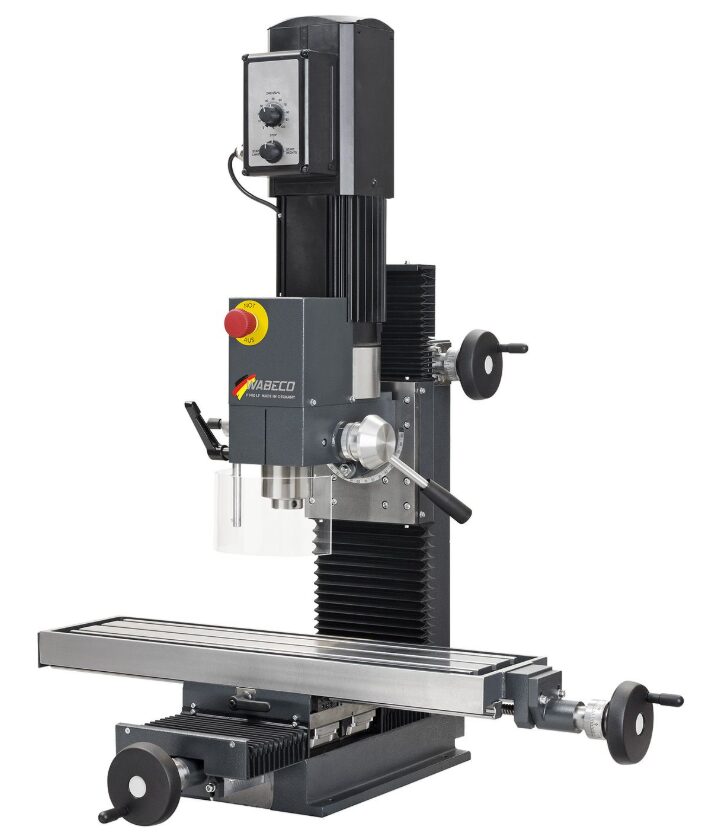

The WABECO F1420 LF HS MT2 is designed for users who require exceptional precision, increased machining speeds and enhanced performance. The advanced linear guideway system provides outstanding rigidity and smooth movement, while the high-speed servo-driven spindle allows efficient machining of metals, plastics and non-ferrous materials.
Its high spindle speed makes the machine particularly suitable for small tooling, engraving work and detailed machining applications, whilst maintaining the torque required for heavier cutting operations.
Linear Guideway System
The precision linear guide system provides exceptional machining stability and positioning accuracy.
- Linear guideways on all axes
- Maintenance-free operation
- Hardened and ground guide rails
- Backlash-free ball guide technology
- High rigidity and accuracy
- Four protective bellows for guide protection
Feed Screw System
Precision trapezoidal thread spindles ensure accurate positioning and long-term reliability.
- Trapezoidal feed screws on all axes
- Adjustable bronze double nuts
- Scale ring accuracy: 0.05 mm
- Z-axis counterbalance adjustment system
Optional ball screw upgrades are available for applications requiring enhanced positioning precision and minimal backlash.
MT2 Spindle System
- MT2 spindle taper
- M10 drawbar thread
- Spindle runout accuracy: 0.01 mm
- Clockwise and counter-clockwise spindle rotation
- Suitable for thread cutting operations
High-Speed Performance
The F1420 LF HS MT2 has been specifically designed for applications requiring elevated spindle speeds and precision control.
- Maximum spindle speed of 7,500 rpm
- Ideal for small diameter cutters
- Suitable for engraving work
- Excellent surface finish capability
- Brushless motor technology for reduced maintenance
Milling Head
- Head swivels from -90° to +90°
- Large angle scale for accurate positioning
- Precision indexing system
- Integrated safety guard
Quill & Fine Feed System
- 55 mm quill stroke
- Integrated drilling depth stop
- Full-surface quill clamping system
- Fine Z-axis feed control
- Quill scale accuracy: 0.1 mm
Machine Construction
The machine is built around a robust cast iron structure designed to minimise vibration and maximise machining precision.
- Ribbed grey cast iron column and base
- Large precision spindle bearings
- Wide toothed belt drive system
- Smooth and quiet operation
- Axis locking system for improved surface finish quality
Machine Accuracy
- Manufactured to DIN 8615 standards
- Spindle runout accuracy: 0.01 mm
- Feed scale accuracy: 0.05 mm
- Quill scale accuracy: 0.1 mm
Dimensions & Weight
- Machine dimensions: 940 x 890 x 900 mm
- Machine weight: 127 kg
Demonstration Machine
This demonstration machine is approximately four weeks old and has been geometrically measured and supplied with a test report. As demonstration machines are individual units, availability is subject to prior sale.
Warranty & Support
- 5-year manufacturer warranty (excluding wear parts)
- Long-term spare parts availability guaranteed
