Software

Fanuc Series 31i

The Fanuc Series 31i is part of the interchangeable EMCO WinNC control system. It allows users to learn and practise common industrial CNC controls on an EMCO Concept machine or at a programmer’s workstation.

The software closely replicates the operation and functionality of the original Fanuc control. Comprehensive machining cycles simplify NC program creation, while Manual Guide i supports clear, step-by-step programming.

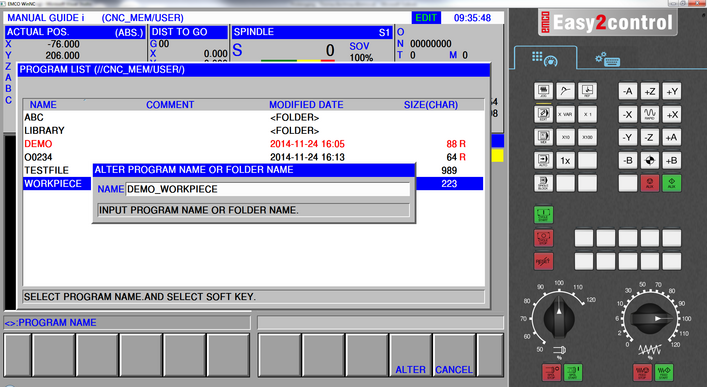

fanuc series 31i featured image

Highlights

  • Manual Guide i work-step programming
  • DIN/ISO programming
  • 2D graphical simulation with automatic zoom
  • Fanuc-style G-code editor
  • Contour editor
  • Macro programming
  • Comprehensive machining cycles
  • Machine-based and PC-based operation

Functions

Workpiece program data transfer

  • Imports and exports workpiece program files containing main programs, subprograms and associated tool data
  • Supports workpiece data, R parameters and zero offsets

Contour processor with graphic simulation

  • Graphically displays the programmed workpiece contour during program creation

Manual Guide editor

  • Integrated editor with supporting cycles and visual guidance for easier operation and programming

Preliminary block run

  • Allows completed NC code blocks to be skipped

Intermediate memory storage

  • Allows stored data to be reused during the programming process

Dry run

  • Helps identify and correct programming errors and potential collisions before machining begins

Automatic measurement of position offsets

  • Measured position offsets are transferred when touching the workpiece

Automatic tool measurement

  • Tool offsets are determined by touching the reference workpiece

Diagnostics

  • Displays alarms, signals, software versions and customer information

Context-sensitive help

  • Opens the relevant manual page on screen when the help button is pressed

Options & Accessories

Offline programming station

  • Optional offline programming station with 3D graphical simulation and automatic zoom

Licences

Homeschooling licence

  • Extension of the multiple licence for distance learning
  • Allows any number of students to install the programming software off-site
  • Valid for five years, covering more than one teaching cycle

Machine licence

  • Control software for all EMCO Concept machines

Multiple licence

  • Designed for the external programming of CNC-controlled machine tools
  • Can be installed on an unlimited number of PC workstations or across a network within the registered institution

Single licence

  • External programming station for all EMCO Concept machines

Applications

  • CNC control training
  • NC program creation and editing
  • Manual Guide i work-step programming
  • DIN/ISO programming
  • Contour and macro programming
  • Turning and milling simulation
  • Cylindrical and face-side milling
  • Cylindrical and face-side drilling
  • External NC programming
  • Distance learning

Software Specifications

  • Control system: EMCO WinNC Fanuc Series 31i
  • Programming methods: Manual Guide i and DIN/ISO
  • Standard simulation: 2D graphical simulation with automatic zoom
  • Optional simulation: 3D graphical simulation with automatic zoom
  • Axis support: Fourth-axis and fourth/fifth-axis machining
  • Integration: Compatible with EMCONNECT for WinNC
  • Compatible machines: EMCO Concept machines

Languages

  • German
  • English
  • French
  • Italian
  • Spanish
  • Dutch
  • Czech
  • Polish
  • Russian
  • Swedish
  • Chinese
  • Additional languages available on request

PDF Downloads

EMCO WinNC for Fanuc31i Turn
EMCO WinNC for Fanuc31i Mill
