Software

Heidenhain TNC 640

The Heidenhain TNC 640 is part of the EMCO WinNC range of interchangeable CNC controls. The software can be installed on a standard PC, with operation and functionality closely matching the original Heidenhain control.

A faithful reproduction of the user interface and training-relevant functions provides practical CNC programming experience. Extensive machining cycles also simplify the creation of NC profile programs.

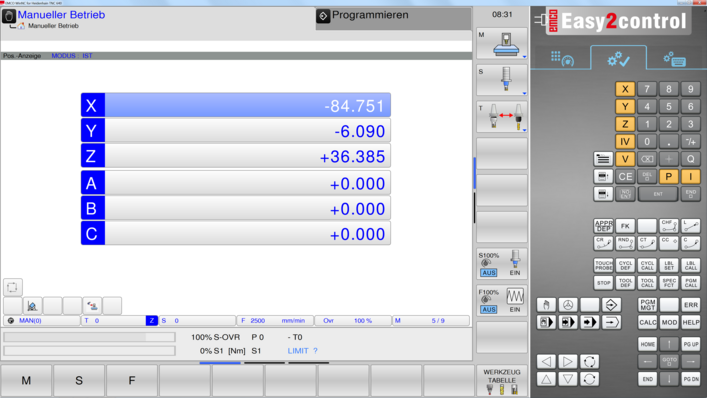

heidenhain tnc 640 featured image

Highlights

  • Faithful reproduction of the original Heidenhain TNC 640 control
  • User interface and functions designed for industrial CNC training
  • Extensive machining cycles
  • Simplified creation of NC profile programs
  • Installation on a standard PC
  • Compatible with EMCONNECT for WinNC

Functions

Automatic measurement of position offsets

  • Measured position offsets are transferred when touching the workpiece

Preliminary block run

  • Allows completed NC code blocks to be skipped

Automatic tool measurement

  • Tool offsets are determined by touching the reference workpiece

Dry run

  • Helps identify and correct programming errors and potential collisions before machining begins

Editor with cycles and help images

  • Integrated editor with machining cycles and visual guidance for easier operation and programming

Context-sensitive help

  • Opens the relevant manual page on screen when the help button is pressed

Preset table

  • Manages position offsets for convenient and efficient machine setup

Contour processor with graphic simulation

  • Supports free contour programming with a graphical representation and selection options

Licences

Homeschooling licence

  • Extension of the multiple licence for distance learning
  • Allows any number of students to install the programming software off-site
  • Valid for five years, covering more than one teaching cycle

Machine licence

  • Control software for all EMCO Concept machines

Single licence

  • External programming station for all EMCO Concept machines

Applications

  • CNC control training
  • NC profile programming
  • Free contour programming
  • Graphic program simulation
  • Machine setup and position offset management
  • External NC programming
  • PC-based programming
  • Distance learning

Software Specifications

  • Control system: EMCO WinNC Heidenhain TNC 640
  • Installation: Standard commercially available PC
  • Programming support: Extensive machining cycles and free contour programming
  • Simulation: Graphical contour representation
  • Integration: Compatible with EMCONNECT for WinNC
  • Compatible machines: EMCO Concept machines

PDF Downloads

EMCO WinNC for Heidenhain TNC640 Mill
