HYPERTURN 100 POWERMILL

The diverse EMCO turning machine series offer professional solutions for every demand.

EQUIPMENT

  • Main spindle for turning and milling operations
  • Additionally equipped with a 3-positions pick-up magazine for boring bars and tools featuring large dimensions
  • Milling spindle for flexible turning, drilling and milling operations
  • EMCONNECT – Digital Process Assistant
  • Flexible Milling Spindle with 12000 rpm

  • Up to 100 tool magazine positions

TECHNICAL DATA

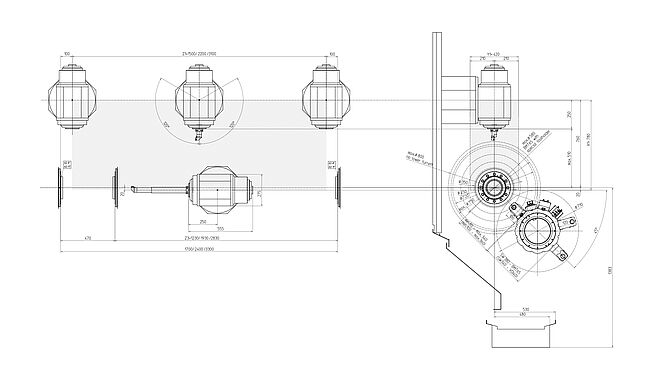

WORK AREA

Travel in X/Y/Z 780 (+760/-20) // 420 // 1500 / 2200 / 3100mm
Max. turning diameter 750 mm (with Milling spindle)
Swing over bed 800 mm
Rapid motion speeds in X/Y/Z 30 / 40 / 20 m/min
Feed force in X/Y/Z 1640 / 1640 / 1640 N

TOOL CHANGE

Number of tool stations 40 / 100
Max. tool diameter 90 mm

MAIN SPINDLE

Max. speed 3500 // 2500 rpm
Spindle nose A2-8″ // A2-11″
Max. drive power 33 / 53 kW
Max. drive power 800 // 4400 Nm

GENERAL DATA

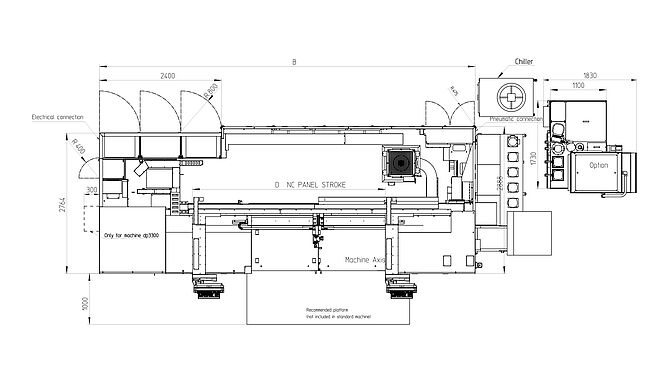

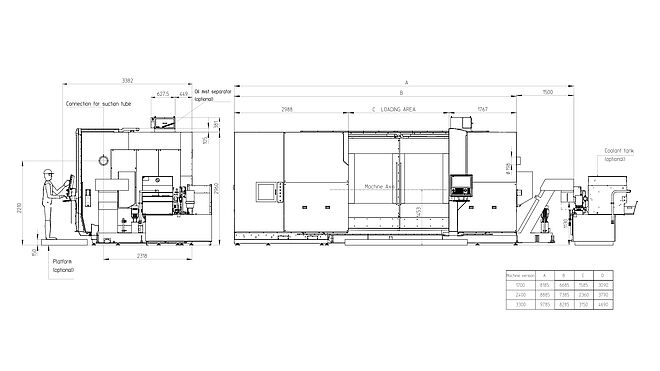

Dimensions (LxWxH) 8100 / 8800 / 9600 x 3200 x 3000 mm
Machine weight 25000 – 35000 kg
