HYPERTURN 200 POWERMILL

The diverse EMCO turning machine series offer professional solutions for every demand.

HYPERTURN 200 POWERMILL

EQUIPMENT

  • Main spindle for turning and milling operations
  • Up to 200 tool magazine positions
  • Milling spindle for flexible turning, drilling and milling operations:
  • Additionally equipped with a 3-positions pick-up magazine for tools
  • two versions of milling spindles available – either with high torque (6.500 rpm 630 Nm) or high spindle speed (10.000 rpm / 340 Nm)
  • EMCONNECT – Digital Process Assistant

TECHNICAL DATA

WORK AREA

Travel in X/Y/Z 915 // +/-300 // 3100-4100-5100-6100
Max. turning diameter 1000 mm
Max. part length with tailstock 3200 / 4200 / 5200 / 6200
Swing over bed 1050 mm
Distance between centers 3200 / 4200 / 5200 / 6200
Rapid motion speeds in X/Y/Z 30 / 30 / 30 m/min
Feed force in X/Y/Z 3000 / 2000 / 3000 N

MAIN SPINDLE

Max. speed 1800 U/min
Spindle nose A2-15”
Max. drive power 84 kW
Max. torque 6410 Nm

COUNTER SPINDLE

Max. speed 1800 U/min
Spindle nose A2-15”
Max. drive power 84 kW
Max. torque 6410 Nm

TOOL CHANGE

Number of tool stations 50/100/200
Max. tool diameter 120/240 mm

MILLING SPINDLE

Max. speed 6500 (10000) U/min
Max. torque 630 (340) Nm

GENERAL DATA

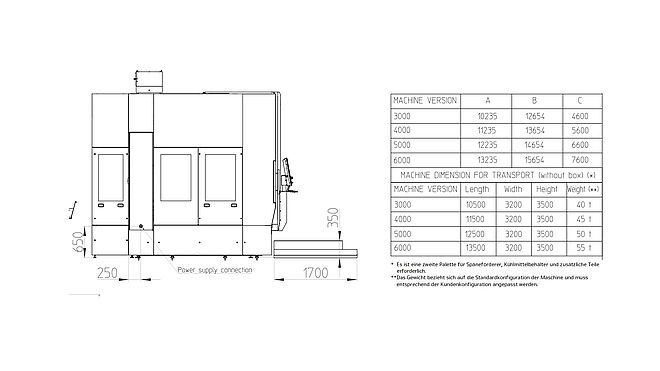

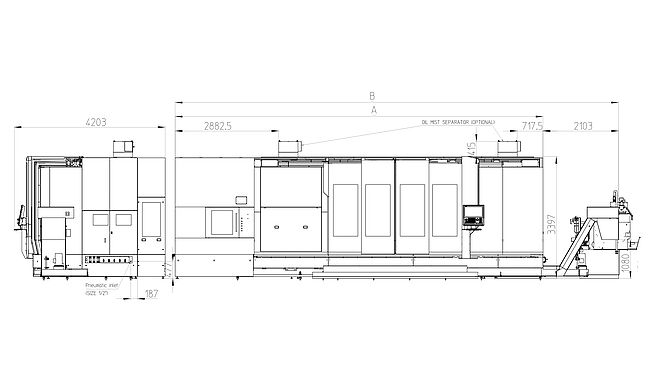

Dimensions (LxWxH) 12400-13400-14400-15400 x 4000 x 3400 mm
Machine weight 30000 – 45000 kg abhängig von Typ/Zubehör

HIGHLIGHTS

  • Very large working space for the complete machining of large workpieces up to a turning diameter of 1000 mm with a maximum length of 6100 mm
  • Multitasking-control/Multi-technology SINUMER IK 840D sl
  • One or more NC-steady rest
  • Dynamic and precise B-axis with high torque and power
  • Main spindle and Counter Spindle for highperformance processing with vibration-damped boring bars up to 1000 mm, including a special magazine (optional)
  • Two versions of milling spindles with 6500 or 10000 rpm, with HSK-T 100 or PSC80 ( Capto C8)
  • Automatic tool pre setting and workpiece measuring touch probe

DOWNLOADS

12_21_CNC_MULTITASKING_MACHINE_HYPERTURN200PM_SEO.PDF
