HYPERTURN 65

The diverse EMCO turning machine series offer professional solutions for every demand.

Hyperturn 45

EQUIPMENT

  • 2 spindles
  • Up to 3 independent Y axes
  • 3 tool turrets
  • Automation with EMCO bar- or Gantry Loader
  • Up to 36 driven tools at two or three tool turrets
  • EMCONNECT – Digital Process Assistant (Siemens 840D sl)

TECHNICAL DATA

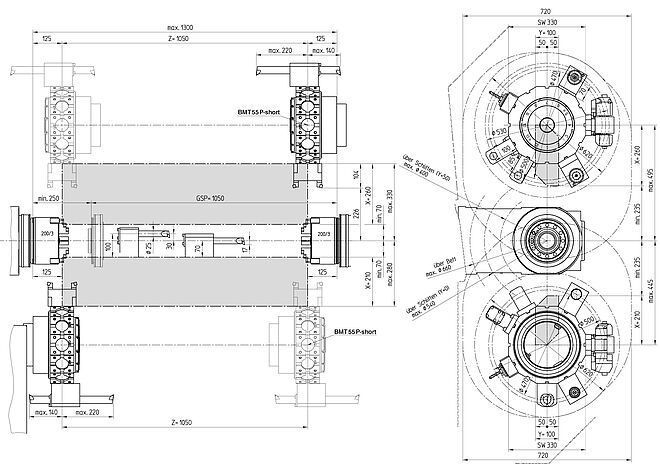

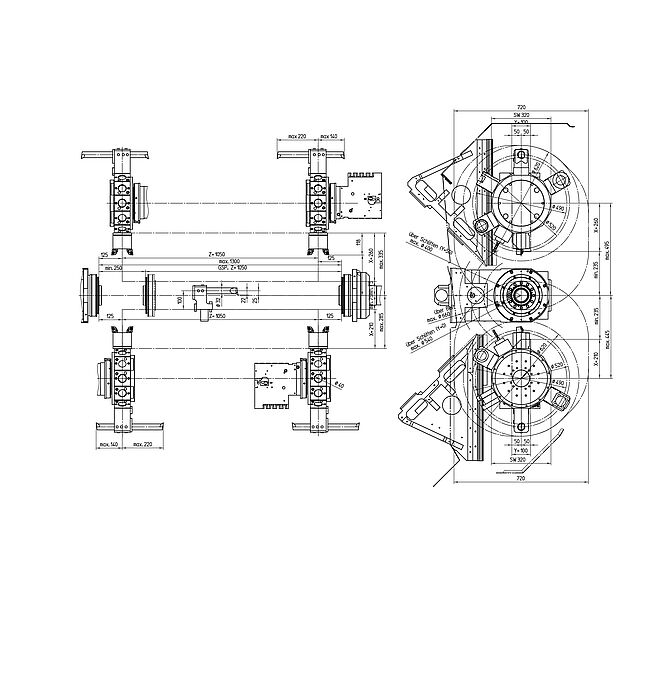

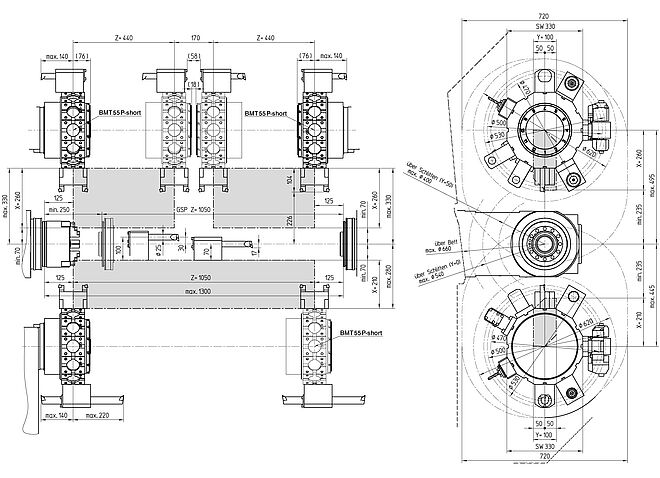

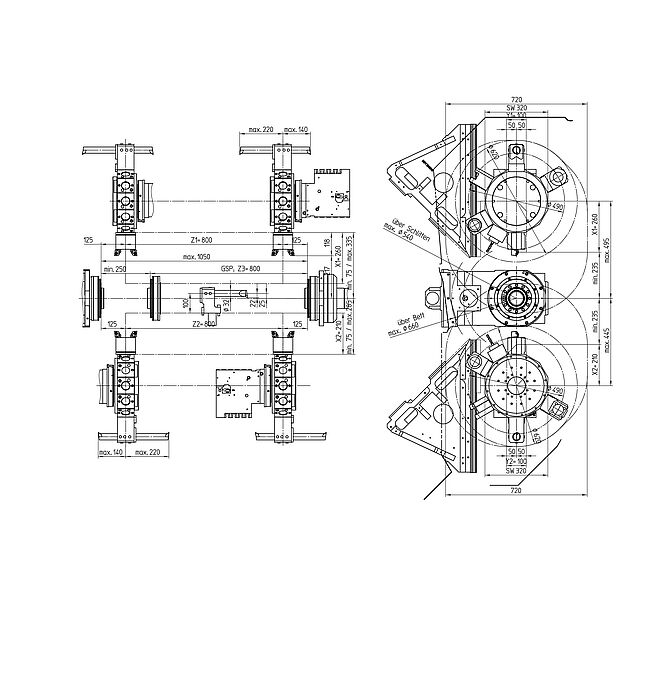

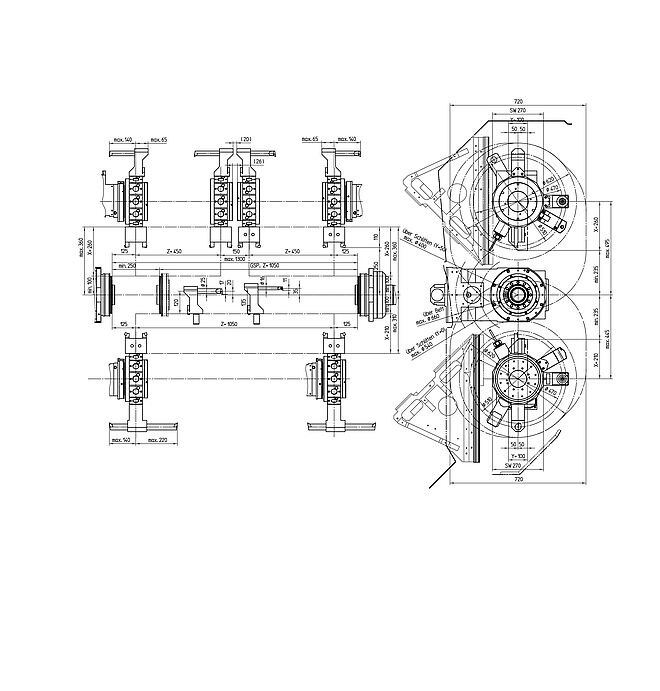

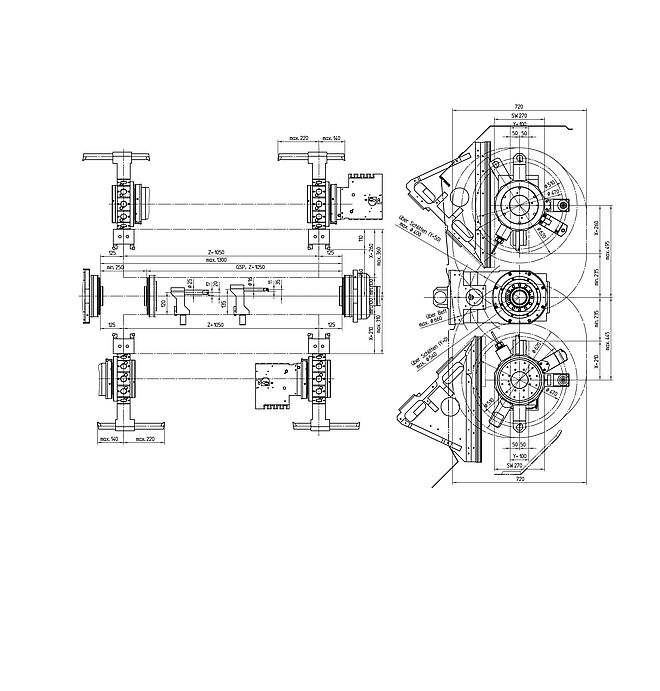

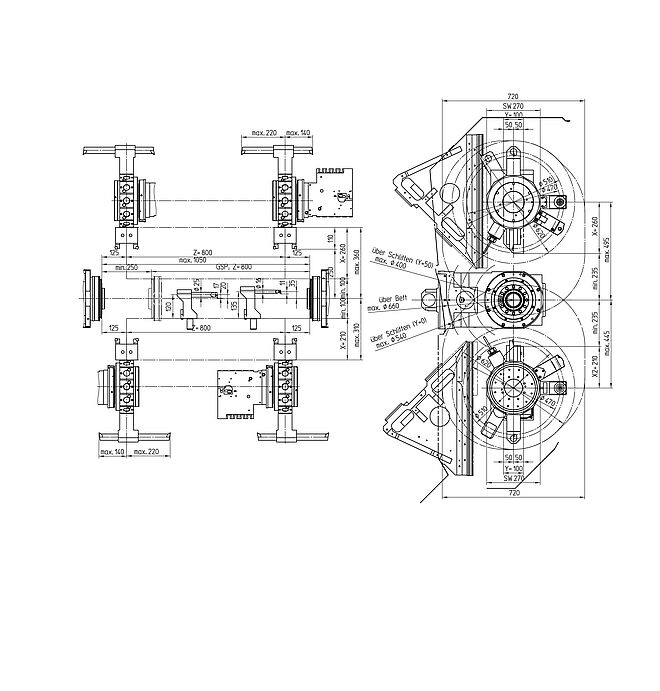

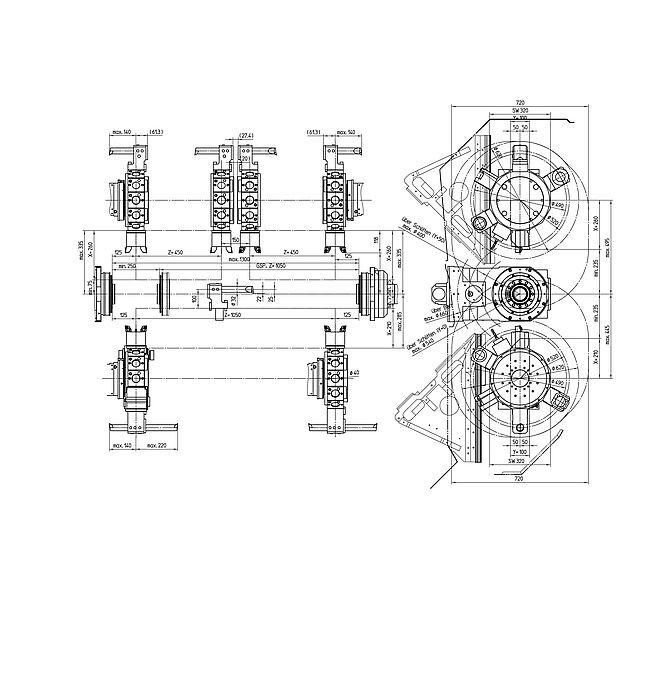

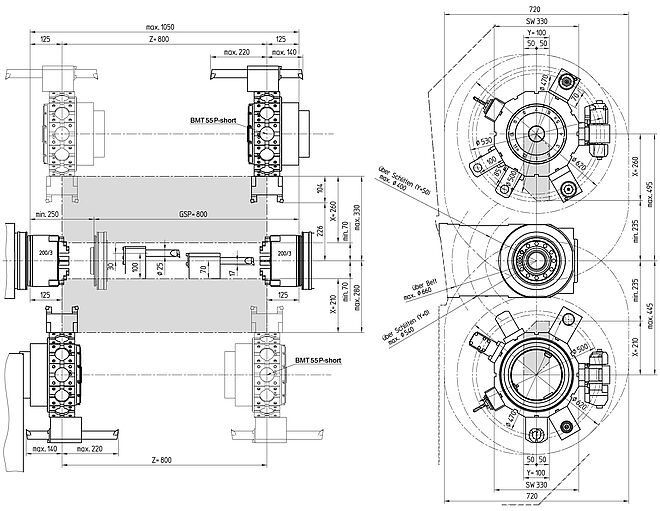

WORK AREA

Travel in X/Y/Z f.e. HT 65 DT-1000: X1/X2:260/210, Z1/Z2/Z3:800/800/800, Y1/Y2:100(+/-50) mm
Bar diameter 65 (76,2 / 95) mm
Max. turning diameter 500 mm
Swing over bed 660 mm
Rapid motion speeds in X/Y/Z 30 / 12 / 30 m/min

MAIN SPINDLE

Max. speed 5.000 rpm
Max. drive power 21 / 29 kW
Max. torque 200 / 250 Nm

COUNTER SPINDLE

Max. speed 5.000 U/min
Max. drive power 21 / 29 kW
Max. torque 200 / 250 Nm

TOOL TURRET

VDI size 30 (40 option)
Number of tools 3×12
Driven tools 3×12
Max. speed 5.000 U/min
Max. drive power 6,7 kW
Max. torque 25 Nm

GENERAL DATA

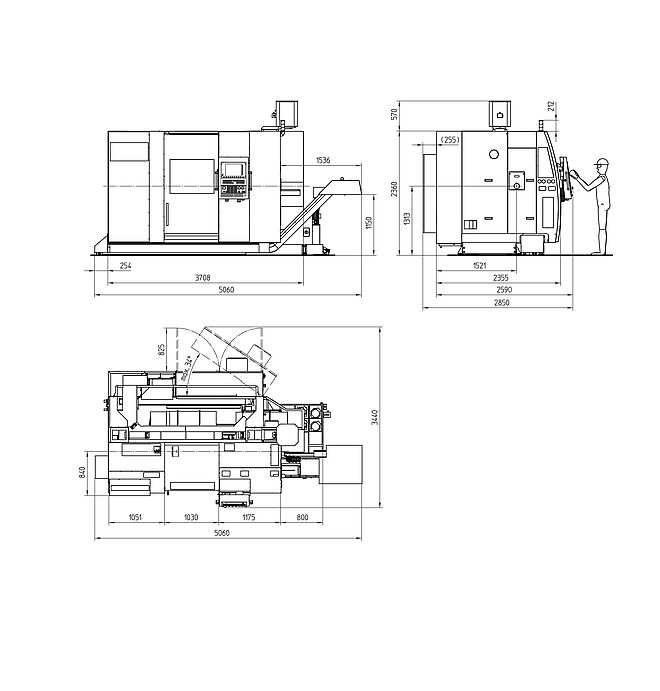

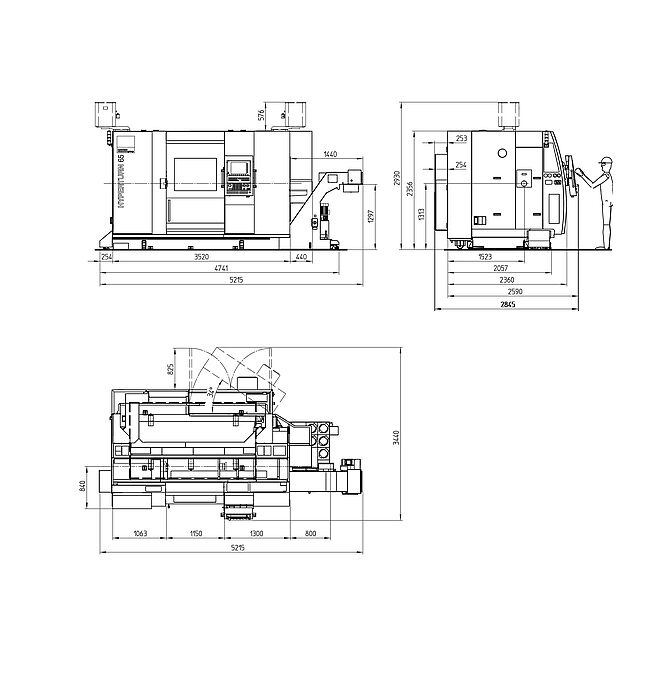

Dimensions (LxWxH) HT 65-1000 DT:5060 x 2850 x 2360, HT 65-1300 TT: 5300 x 2850 x 2360 mm
Machine weight HT 65-1000 DT: 8700 kg, HT 65-1300 TT: 9250 kg

HIGHLIGHTS

  • Up to 30% more productivity for bar stock machining
  • 3 independent Y-axes for unrestricted milling
  • Sinumerik 840D-sl for high-performance drive and controls
  • Increased flexibility through use of a 3rd tool turret
  • 2 integrated, water-cooled spindle motors
  • Up to 48 milling tools for complete machining
  • Optimum chip flow and user-friendly work area
