HYPERTURN 95

The diverse EMCO turning machine series offer professional solutions for every demand.

HYPERTURN 95

EQUIPMENT

  • 2 spindles
  • Powerful milling spindle
  • C-axis for main and counter spindle
  • Driven tools on both turrets
  • 2 tool turrets

TECHNICAL DATA

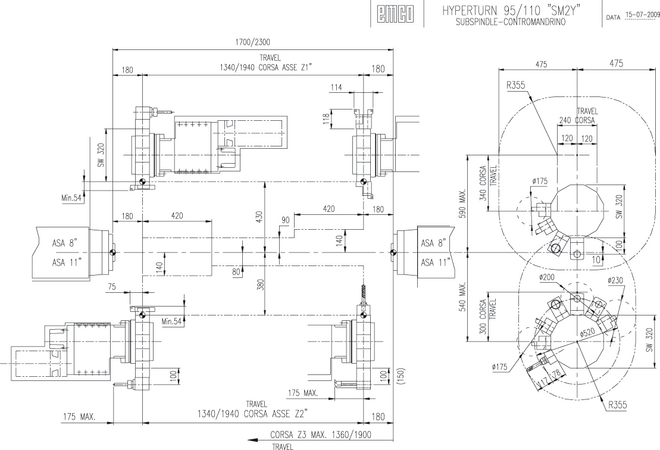

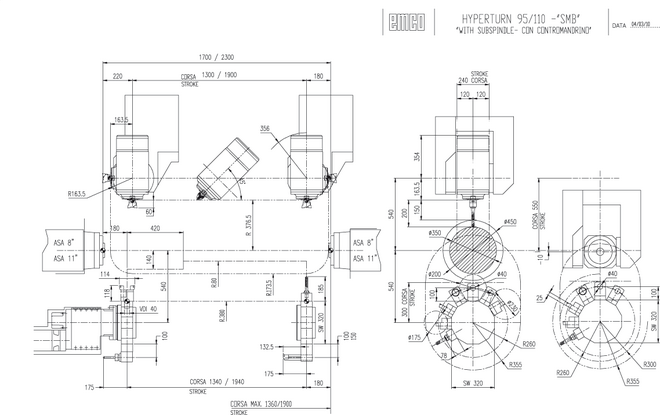

WORK AREA

Travel in X/Y/Z With B axis (X1/X2/Z1/Z2): +540/-10 / 300 / 1300/1900 / 1340/1940; with tool turret (X1/X2/Z1/Z2): 340 / 300 / 1340/1940 / 1340/1940
Max. spindle diameter 95 mm
Spindle bore hole 106 mm
Max. turning diameter 710 mm
Swing over bed 720 mm
Distance between centers 1700/2300 mm
Rapid motion speeds in X/Y/Z 1181 / 590 / 1181 ipm

MAIN SPINDLE

Max. speed 3500 rpm
Spindle nose A2-8
Max. drive power 33 kW
Max. torque 800 Nm

COUNTER SPINDLE

Max. speed 3500 rpm
Spindle nose A2-8
Max. drive power 33 kW
Max. torque 800 Nm

TAIL STOCK

Quill diameter 150 mm
Inner cone MT 5
Travel (automatic) 1100 / 1600 mm
Quill travel 150 mm

TOOL TURRET

VDI size 40 mm
Number of tools 12
Driven tools 12
Max. speed 4000 rpm
Max. drive power 10.5 kW
Max. torque 40 Nm

TOOL TURRET 2

VDI size 40 mm
Number of tools 12
Driven tools 12
Max. speed 4000 rpm
Max. drive power 10.5 kW
Max. torque 40 Nm

MILLING SPINDLE

Number of tools 40 (80 optionally)
Swivel area 210°
Max. speed 7000 rpm (12,000 optionally)
Max. drive power 21.5 kW
Max. torque 128 Nm

GENERAL DATA

Dimensions (LxWxH) 8705 x 3160 x 2890 mm
Machine weight 16500 kg

HIGHLIGHTS

  • Main and counter spindle for complex complete machining
  • Large work area for optimal ergonomics and a wider range of parts
  • Stable and precise C-axis for accurate contour milling and
  • Dynamic B-axis with “PowerMill” milling spindle for maximum flexibility
  • Two tool turrets with VDI rapid change system, high pressure and/or
  • Machine cover: New interior and exterior design
  • Milling-turning work
  • Full NC tailstock with integrated quill for complete machining of shafts
  • Hydraulic steady rest
  • State-of-the-art Siemens control unit Sinumerik 840D sl
  • Strong Y-axis with a large stroke
