Equipment
The machine is equipped with a high-performance ISO / BT motor spindle delivering up to 15000 rpm and 46 kW output, precision roller guide ways and directly driven ball screws supporting rapid traverse speeds up to 50 m/min. Flexible tool magazine systems are available with capacities from 40 to 120 tool stations. The machine is available with Siemens Sinumerik ONE or Heidenhain TNC 640 control systems alongside optional EMCONNECT digital process assistant integration.
Control Unit
The ergonomic operator panel is fully adjustable and can travel, rotate and reposition toward the work area, providing excellent accessibility and ideal working conditions for machine operators.
Options & Accessories
Measurement System
Optional tool and workpiece measuring systems reduce setup times and improve machining precision. Workpiece measurement is performed using radio probe technology for highly accurate in-machine inspection.

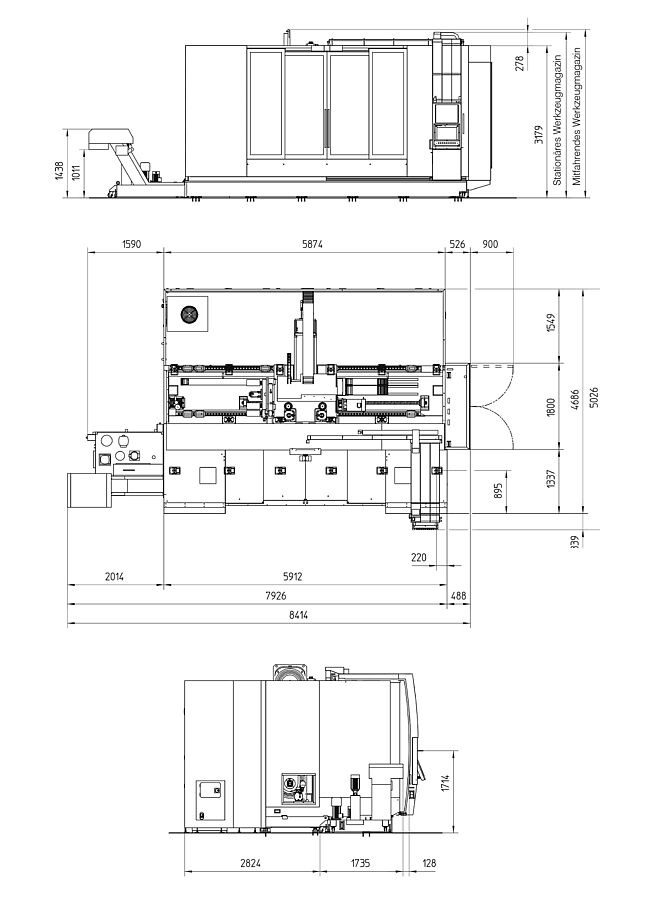

Large Work Area Configuration
The spacious machining area allows extensive customisation options including pendulum operation partitions, rotary tables, tailstocks and additional workholding systems.
Band Filter System with High-Pressure Coolant Pumps
Coolant pressures of 25, 40, 60 or 80 bar can be configured to optimise the performance of coolant-fed drilling and milling tools during demanding machining operations.
Software & Control
Sinumerik ONE with Operate
The Siemens Sinumerik ONE CNC system combines advanced machining performance with smart manufacturing integration, digital twin technology and highly efficient networking capabilities for modern production environments.
Integrated EMCONNECT functionality allows seamless switching between machine controls and digital production applications while displaying all relevant production data through a full-screen or sidebar interface.
The system delivers exceptional CNC performance, reduced commissioning times through virtual preparation and seamless integration into digital manufacturing workflows using integrated SIMATIC S7-1500F PLC technology.
Heidenhain TNC 640
The Heidenhain TNC 640 control system supports both milling and combined milling-turning operations and is particularly suited for high-speed cutting, multi-axis machining and complex Mill-Turn applications on machines with up to 18 axes.
Features include a 19-inch TFT colour display, optimised user interface, advanced machining cycles, innovative graphical simulation and highly responsive motion control.
EMCONNECT - Digital Process Assistant
EMCONNECT provides centralised access to machine data, operating modes and production systems through an intuitive 22-inch multi-touch dashboard interface designed to improve productivity, efficiency and workflow management.
The familiar CNC control environment remains unchanged while operators gain immediate access to machine status information, operating modes and production-relevant data through a touchscreen-optimised interface.
