Maxxturn 200

Equipment

• Main and counter spindle (optional) for turning and milling operations
• One or two tool turrets for flexible turning, drilling and milling operations
• Swing over bed up to 1000 mm
• Max. workpiece weight 6 t
• State-of-the-art dialog-supported Siemens control
• EMCONNECT - Digital Process Assistent (Sinumerik ONE)

Versions

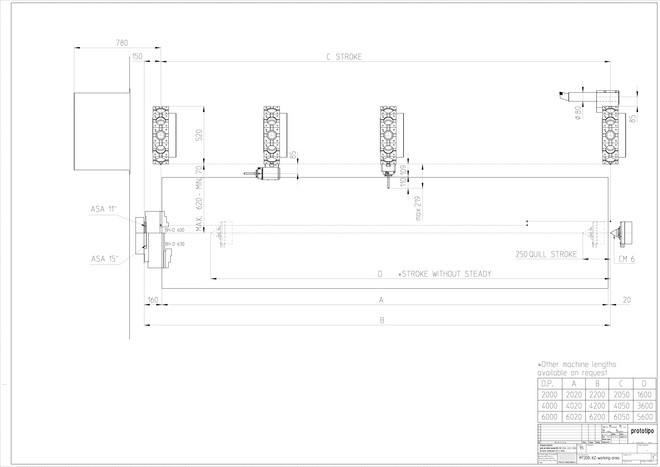

bed length 2 / 4 / 6 m with or without Y-axis

bed length 2 / 4 / 6 m, with or without Y-axis

bed length 2 / 4 / 6 m, with or without Y-axis

bed length 2 / 4 / 6 m, with or without Y-axis

bed length 2 / 4 / 6 m, with or without Y-axis

bed length 2 / 4 / 6 m, with or without Y-axis

Options / Accessories

In various sizes; for efficient precision machining, even of very long workpieces

A special 1000m-diameter chuck is available for flanged or light parts. For other applications a selection of chucks in various dimensions as well as swiveling chucks are available, too.

A perfectly dimensioned air filter with a flow rate of 2000m3/h is available as an option.

Chip conveyer with large coolant volume - easy to remove and clean.

Software / Control

The Sinumerik ONE is the universal and flexible CNC system. With a wide range of functionality, it is suitable for use in almost all technologies. The Sinumerik ONE sets standards in terms of dynamics, precision and integrability in networks.

With the Sinumerik ONE you rely on:

• highest performance and flexibility
• universal openness
• highly effective personal and machine protection

EMCONNECT is included in the standard machine. Switching between emcoNNECT apps and the control system is possible with a single click. All production-relevant data can be displayed in full-screen or sidebar view.

The new SINUMERIK ONE has been specially developed for smart manufacturing.

Digital twin is an integral part of the CNC control, virtual and real control merge and complement each other

Significant reduction in product development and time-to-market thanks to the digital first strategy

Improved networking and data communication capabilities

Significant reduction in the duration of real commissioning through virtual preparation for commissioning

Significantly increased CNC performance

Significantly shorter non-productive times and complete integration into the TIA Portal through the integrated SIMATIC S7-1500F PLC

This means that the SINUMERIK ONE can be seamlessly integrated into digital solutions and workflows.

For increased productivity and efficiency in production.

EMCONNECT facilitates easy access to digital production – all important information and systems are accessed centrally on the machine. The familiar NC control and hence the familiar operation of the machine remain unchanged.

A clear and compact overview of the machine state, the machine data and the operating mode is available at a glance thanks to the emcoNNECT Dashboard. The hardware basis of the EMCONNECT control centre is a 22“ multi-touch display teamed with an industrial PC and a keyboard including HMI hotkeys for easy and intuitive operation via a user interface optimised for touchscreen use.

Included as standard equipment in the Siemens machine version (Sinumerik ONE).

The sensational CAM solution for turning and turning/milling. ESPRIT greatly simplifies the programming of complex machining processes and significantly reduces set-up times.

ESPRIT Applications:

• Complete CNC programming for up to 22-axis turning
• Turning/milling for single-spindle lathes
• Turning/milling for multi-carriage turning centers
• Turning/milling for multi-tasking machine tools including B axis
• Simulations:
• Dry runs in dynamic volume view
• Shaded in the entire working environment: Machine tool, clamping devices, blank and workpiece
• Extensive collision detection: Tool, blank, workpiece clamping devices and target/actual workpiece comparison

EMCO CPS PILOT is the virtual EMCO machine on the PC. The operator works at an external programming station with an image of the machine in simulated operation. Therefore, NC programs can be planned, programmed, simulated and honed.

Using CPS the result is 100 % production reliability, up to 80 % shorter set-up times and an enormous increase in productivity and operating efficiency.

100 % identical behavior of machine and PC

Collision monitoring for clamps, parts, tools, tool holders and machine components

Collisions can be completely eliminated before they even happen

The machine's productivity is maximized

Perfect tuning of both tooling systems
