The perfect solution for economic, off-the-shelf complete machining. With its comprehensive equipment the MAXXTURN series has everything the customer needs in order to produce complex turned and milled parts efficiently – in terms of precision as well as of price. The highlight is the very stiff Y axis with large travel – for almost unlimited machining capabilities with maximum precision.

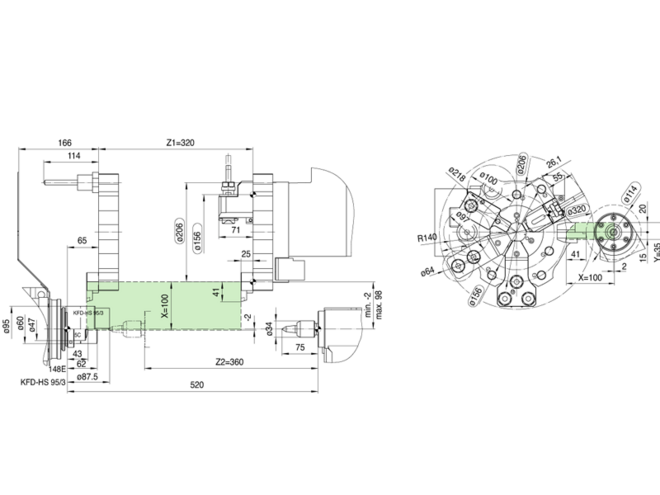

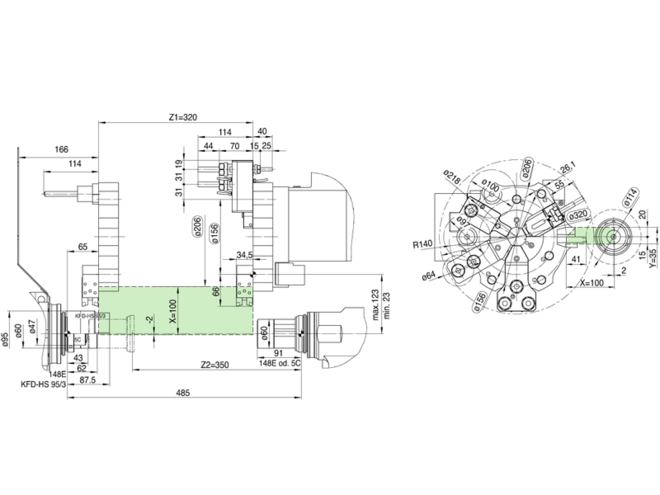

WORK AREA
| Travel in X/Y/Z | 100 / +20 / -15 / 320 mm |
| Bar diameter | 25,4 mm |
| Max. turning diameter | 114 mm |
| Swing over bed | 325 mm |
| Spindle distance | 485 mm |
| Rapid motion speeds in X/Y/Z | 20/10/30 m/min |
MAIN SPINDLE
| Max. speed | 8000 rpm |
| Spindle nose | Ø70 h5 mm |
| Max. drive power | 6.5 kW |
| Max. torque | 30 Nm |
COUNTER SPINDLE
| Max. speed | 8000 rpm |
| Spindle nose | Ø70 h5 mm |
| Max. drive power | 3.5 kW |
| Max. torque | 20 Nm |
TOOL TURRET
| VDI size | 16 |
| Number of tools | 12 |
| Driven tools | 6 |
| Max. speed | 6000 rpm |
| Max. drive power | 1.2 kW |
| Max. torque | 4 Nm |
GENERAL DATA

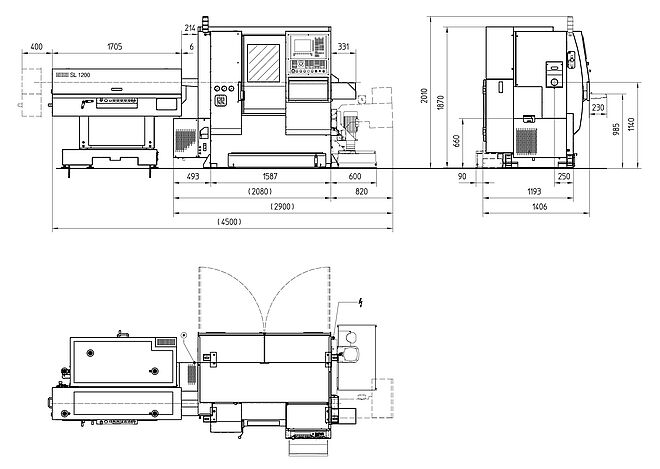

| Dimensions (LxWxH) | 2180 x 1425 x 1870 mm |
| Machine weight | 2100 kg |
