MAXXTURN 95

The perfect solution for economic, off-the-shelf complete machining. With its comprehensive equipment the MAXXTURN series has everything the customer needs in order to produce complex turned and milled parts efficiently – in terms of precision as well as of price.

MAXXTURN 95

EQUIPMENT

  • New design/ new colour: Target date upon request
  • Driven tool for milling and drilling machining
  • Siemens 840D sl control
  • Main spindle max drive power 42KW
  • Y axis directly implemented in machine construction
  • EMCONNECT – Digital Process Assistant
  • Tool turret VDI or BMT
  • Steady rest for the machining of shafts

TECHNICAL DATA

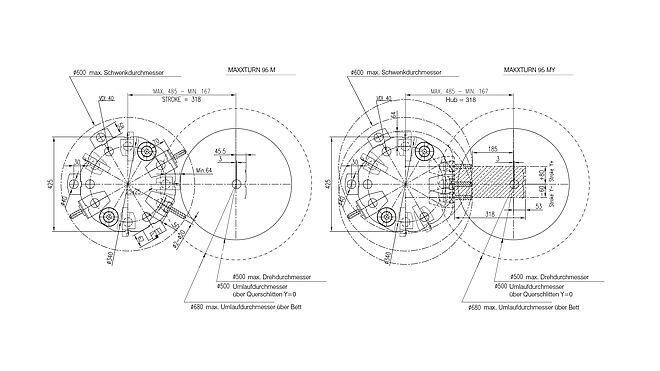

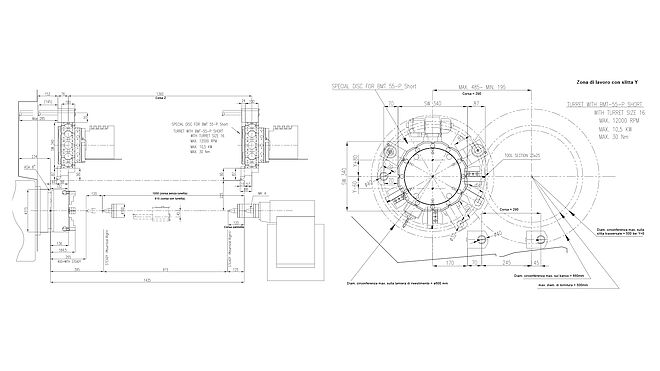

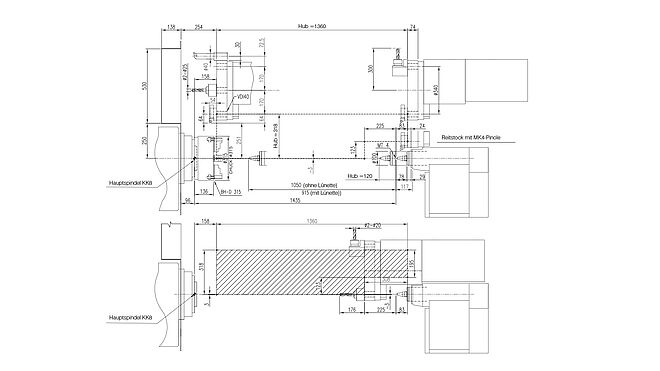

WORK AREA

Travel in X/Y/Z 318 / +80/-60 / 1360 mm
Bar diameter 95 mm
Max. turning diameter 500 mm
Swing over bed 700 mm
Distance between centers 1430 mm
Rapid motion speeds in X/Y/Z 24/12/30 m/min

MAIN SPINDLE

Max. speed 3500 / 2500 rpm
Spindle nose A2-8
Max. drive power 33 / 42 kW
Max. torque 800 / 1040 Nm

TAILSTOCK

Automatic tailstock Yes
Inner cone MK4
Travel (automatic) 1050 mm

TOOL TURRET

VDI size 40 / BMT55P
Number of tools 12
Driven tools 12
Max. speed 4000 / 12000 rpm
Max. drive power 8 / 10 kW
Max. torque 35 /30 Nm

GENERAL DATA

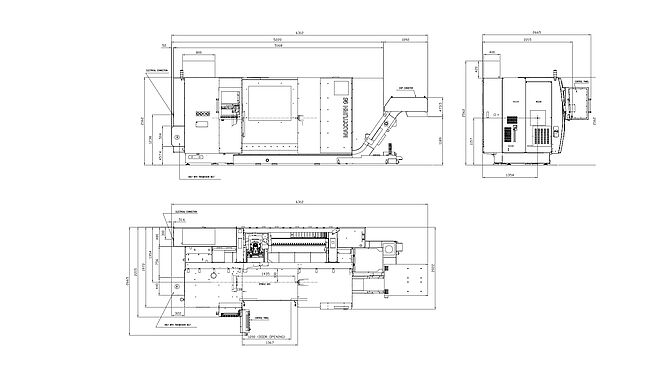

Dimensions (LxWxH) 6300 x 2240 x 1130
Machine weight 10500 kg

HIGHLIGHTS

  • High thermostability and precise machining
  • Driven tools 12 time VDI40 axial turret with single-motor engineering and block tool system
  • High rapid motion speed
  • Very compact machine layout
  • Very stable Y axis with long travel High-precision C axis
  • State-of-the-art control technology from Siemens of Fanuc for simple dialog-supported programming
