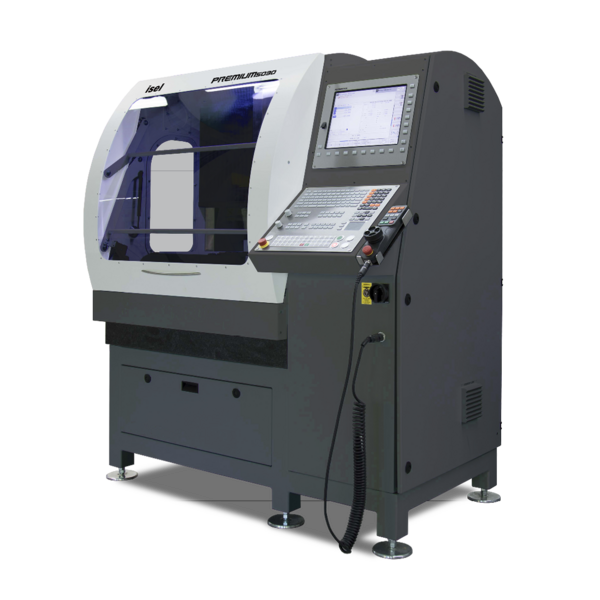

PREMIUM 5030

GRANITE, STEEL AND LINEAR MOTORS FOR TOP PROCESSING QUALITY!

PREMIUM 5030

TECHNICAL DATA

Dimensions (W x D x H) in mm PREMIUM 5030 (1500 x 1220 x 2000) PREMIUM 5030 graphite (1500 x 1220 x 2050)

Design Steel-granite construction

Travel ranges in mm 500 x 350 x 180

Table clamping area WxD in mm 450 x 350

Weight in kg approx. 1000

Speed range 20 m/min

Measuring system resolution in mm /

Repetition accuracy /

Drive motors Linear motors

Guides Long-term maintenance-free heavy-duty steel ball circulation profile rail guides

Drive elements (X/Y/Z) High frequency spindle: Up to 2 kW / 50,000 rpm(optionally up to 100,000 rpm)

Connection voltage 16-32A / 400 V

Control Heidenhain®

Operation Operating terminal with 19” TFT monitor, stainless steel keyboard and trackball mouse

Software Heidenhain® / isyCAM 2.8 (optional isyCAM 3.6)

Typical materials Aluminium, Brass, Ceramic, Copper, Graphite, Hardened steel, Plastics, Stainless steel, Titanium

Application examples Design model construction/mould , Electrical industry, Electrode manufacture, Fine mechanical processing, Watch industry

HIGHLIGHTS

CONSTRUCTION

  • Solid and stable machine construction on polished granite components
  • Small installation space due to compact design

CONTROL

  • HSC control technology with a set processing time of < 1 ms in real-time
  • Control software on Windows® for i-8000

ZERO POINT CLAMPING SYSTEM

  • Zero point clamping system in the granite table for rapid change from 3 to 5 axes

SPINDLE

  • High frequency spindle with up to 2 kW output and 50,000 rpm

MOTORS

  • Low-maintenance linear motors in X, Y, Z

PRECISION

  • High rail precision due to digital length measuring system
  • High-load linear guides

DOWNLOADS

PREMIUM 5030
