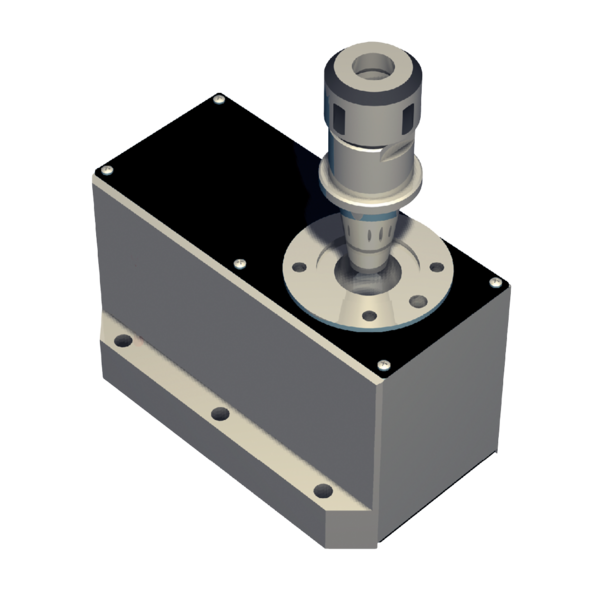

Rotary Indexing Table ZR 20

The isel ZR 20 Rotary Indexing Table is a compact, high-precision positioning solution designed for CNC machining, assembly systems and industrial automation. Featuring a low-backlash toothed belt drive with stepper motor, it delivers smooth, accurate rotary positioning in a lightweight package. With an SK20 mounting flange, Ø15 mm through-hole shaft and optional CNC control, the ZR 20 is ideal for applications requiring reliable indexing and precise rotary motion.

rotary indexing table zr 20

Features

  • Compact rotary indexing table for precision positioning
  • Low-backlash toothed belt drive with stepper motor
  • Reduction ratio of 1:20
  • SK20 internal taper mounting flange
  • Ø15 mm through-hole shaft
  • Lightweight construction weighing just 2.1 kg
  • Suitable for CNC and automated positioning applications

Highlights

The ZR 20 Rotary Indexing Table combines precise positioning, compact dimensions and lightweight construction, making it ideal for space-constrained automation systems. Its low-backlash drive, SK20 mounting interface and optional CNC control provide a flexible solution for accurate rotary positioning across a wide range of industrial applications.

Options

  • CNC control via Sub-D interface
  • Ø65 mm three-jaw chuck
  • SK20 collet holder
  • ZDS 2030 rotary swivel unit

Applications

Suitable for CNC machining, rotary indexing, automated assembly, fixture positioning, inspection systems, component handling and precision industrial automation.

Technical Data

Performance

  • Reduction ratio: 1:20
  • Output speed: 0–60 rpm
  • Operating torque: 8 Nm
  • Nominal holding torque: 14 Nm
  • Minimum increment: 3.5 arcmin

Construction

  • Low-backlash toothed belt drive
  • Stepper motor drive
  • SK20 internal taper mounting flange
  • Ø15 mm through-hole shaft
  • Weight: 2.1 kg

PDF Downloads

Assembly Instruction Rotary Units
