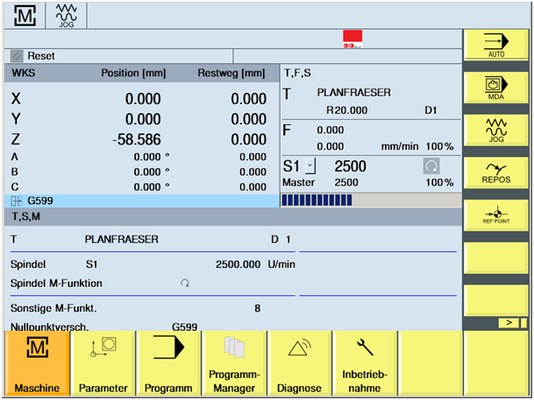

Sinumerik Operate 840D sl

Highlights

• ShopMill and ShopTurn work-step programming
• 2D graphical simulation with automatic zoom
• Detailed error messages for drive problems and programming faults
• Modern, window-based user interface
• Comprehensive program editor
• Intermediate memory storage
• Permanent storage of programs, tool data and workpiece information
• Machine-based and PC-based operation

Functions

Workpiece program data transfer

• Imports and exports workpiece program files containing main programs, subprograms and associated tool data
• Supports workpiece data, R parameters and zero offsets

Contour processor with graphic simulation

• Graphically displays the programmed workpiece contour during program creation

Program editor

• Integrated editor with supporting cycles and visual guidance for easier operation and programming

Preliminary block run

• Allows completed NC code blocks to be skipped

Intermediate memory storage

• Allows stored data to be reused during the programming process

Setting data

• Allows JOG feed rates and speed limits to be entered

Dry run

• Helps identify and correct programming errors and potential collisions before machining begins

Automatic measurement of position offsets

• Measured position offsets are transferred when touching the workpiece

Automatic tool measurement

• Tool offsets are determined by touching the reference workpiece

Diagnostics

• Displays alarms, signals, software versions and customer information

Context-sensitive help

• Opens the relevant manual page on screen when the help button is pressed
