Win3D-View

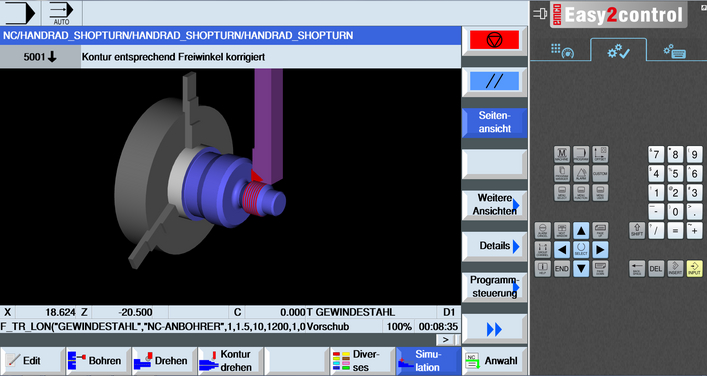

Win3D-View is 3D simulation software for CNC turning and milling, available as an optional addition to the EMCO WinNC control system. It provides a highly realistic representation of tools, blanks, clamping devices and machining processes.

The software checks programmed tool movements for potential collisions with blanks and clamping devices. Clear warnings help users identify problems before machining begins, supporting safer training and helping to prevent costly collisions.

win3d view featured image

Highlights

  • Realistic 3D turning and milling simulation
  • Complete workspace visualisation
  • Detailed representation of tools, blanks and clamping devices
  • Programmed toolpath checking
  • Collision detection and warnings
  • Solid and wireframe tool graphics
  • Sectional workpiece view
  • Zoom and rotating view controls
  • Integrated tool library

Functions

Collision checking

  • Checks programmed tool movements for collisions with clamping devices and raw parts
  • Checks movements at machining speed and with the spindle stationary
  • Provides an alarm when a potential collision is detected

Scaling

  • Zoom functions provide a closer view of the simulated machining process

Realistic workspace

  • Displays the complete working area, including the chuck, tailstock and vice
  • Realistically represents tools, raw parts, clamping devices and machining processes

Integrated tool library

  • Allows suitable machining tools to be searched for and selected

Sectional view

  • Provides a sectional view of the simulated workpiece and machining process

Options & Accessories

WinNC control option

  • Available as an optional addition to the EMCO WinNC control system

Licences

Homeschooling licence

  • Extension of the multiple licence for distance learning
  • Allows any number of students to install the programming software off-site
  • Valid for five years, covering more than one teaching cycle

Machine licence

  • Software for all EMCO Concept machines

Multiple licence

  • Designed for the external programming of CNC-controlled machine tools
  • Can be installed on an unlimited number of PC workstations or across a network within the registered institution

Single licence

  • External programming station for all EMCO Concept machines

Applications

  • CNC turning simulation
  • CNC milling simulation
  • Toolpath checking
  • Collision detection
  • Machining process visualisation
  • CNC programming training
  • External NC programming
  • Distance learning
  • Tool selection

Workpieces

  • Turned workpieces
  • Milled workpieces

Software Specifications

  • Simulation type: 3D turning and milling simulation
  • Workspace display: Raw part, tool and clamping device
  • Supported clamping devices: Chuck, tailstock and vice
  • Collision checking: Tools, raw parts and clamping devices
  • Viewing options: Sectional view, zoom and rotating view
  • Tool display: Solid or wireframe graphics
  • Tool management: Integrated searchable tool library
  • Control compatibility: EMCO WinNC
  • Machine compatibility: EMCO Concept machines
