Used Machines

Emco Turn E25 TCM with 828D Siemens control – NEW STOCK MACHINE
2 Axes CNC Turning with C-Axis, Driven Tools & Tailstock
  • Max. bar stock diameter: 25,4 mm
  • Max. Turning Dia: 85 mm
  • Swing over bed 250 mm
  • Max. speed: 6300 rpm
  • Drive main spindle: 5.5 kW
  • Drive turret: 1.2 kW
  • Tool Turret with 12 station VDI 16 tools
  • Parts Catcher
  • Optical Tool Presetter
  • 8 Bar High Pressure Coolant Pump
  • Collet Chuck 5C
  • Tool Holder Package
  • Delivery & training
Emcomill 350 with Siemens 828D – NEW STOCK MACHINE
  • 3 Axis CNC Milling Machine with 20 Tool Magazine
  • Travel in X/Y/Z: 350 / 250 / 300 mm
  • Distance spindle nose: 120 – 420 mm
  • Rapid motion speeds in X/Y/Z: 24 / 24 / 24 m/min
  • Clamping area: 500 x 300 mm
  • Milling spindle Max. speed: 10000 rpm
  • Max. drive power: 6,8 kW (S1)
  • Max. torque: 34 Nm (S6 60%)
  • Auto Tool Measurement
  • Electronic Handwheel
  • 125mm Machine Vice
  • Tool Holder Package
  • Delivery & Training
  • 12 Months Warranty
COMPAC 350i PRO – 5 Axis Mill – NEW STOCK MACHINE

Available options:

  • Wet SF Spindle 60,000 RPM
  • Zero-Point clamping device with 4 Jaw Chuck
  • 20 Station Tool Changer with 20 adaptor rings for use with 6mm Shank Tools
  • Machine Stand
  • 240v 16A,
  • Delivery, Installation, Training,
  • 12 Months Warranty
  • CAD CAM SOFTWARE NOT INCLUDED

APPLICATION EXAMPLES:

  • Jewellery and watch industry
  • Aerospace industry
  • Medical engineering
  • Electronic industry
  • Professional engraving
  • Milling circuit boards/plates
  • Multi-sided processing
  • Small part processing
  • Rapid prototyping
iCUTwater Smart Water Jet Cutter
  • Machine & pump Made in Germany
  • Including cutting pump 7.5kw 1500 bar
  • Operator protection (enclosed system)
  • 3-plunger high-pressure pump with an efficiency of 90%
  • Operator training included
  • Abrasive dosing unit and sand storage
  • Extremely compact design
  • Integrated sedimentation tank for wastewater pre-treatment
  • Power supply via standard 400v/16A connection
  • Low weight (Approx. 800 kg incl. Water)
  • Two installation variants possible
  • Low noise emission (only < 78 dB in cutting mode)
  • Easy to use control software
  • Working Area 1000 x 500mm
  • Cutting without any smoke or toxic gases
  • Delivery, Installation, Training & 12 Month Warranty
Concept Turn 105 with 8 stn ATC, machine cabinet and tooling  – NEW STOCK MACHINE
  • Choice of control software Fanuc 31i or Siemens Operate
  • Control keyboard,
  • 3 jaw manual chuck,
  • Extended tooling & holder package
  • Coolant system
  • Machine cabinet
Concept Turn 55 with 8 stn ATC
  • Fanuc 21 control software
  • Manual tailstock
  • 3 jaw manual chuck,
  • Tool holder package
Emcoturn 325-II CNC lathe with Siemens 840/810D control – NEW STOCK MACHINE
  • 12 Station VDI16 Tool Turret
  • Parts Catcher
  • 5C Collet Chuck
  • Stationary Tool Holder Package
Emcoturn 345/II TCM CNC lathe with Siemens 810D control – NEW STOCK MACHINE
  • Swing Over Bed 430mm
  • Swing Over Cross Slide 210mm
  • Max Machining Dia 220mm
  • Max Machining Length 520mm
  • Main Spindle Speed 0-6300rpm
  • Drive Power 13kW
  • 12 Station Tool Turret VDI 30
  • C Axis, Driven Tools & Tailstock
  • Parts Catcher
  • Power Collet Chuck
  • Tool Holder Package
EmcoTurn 342 – 65mm Bar Capacity – Fanuc
  • Emcoturn 342 CNC lathe with 65mm Bar Capacity & Fanuc 0-T Control
  • 8 Station VDI30 Tool Turret
  • Parts Catcher
  • 3 Jaw Chuck 210mm Dia (65mm Bore)
  • Soft Jaws
  • Stationary Tool Holder Package1x Machine & Accessories as above
HyperTurn 45 – Siemens
  • HyperTurn 45 CNC Lathe – Siemens 840D
  • 2x 12 Station Tool Turrets – VDI 25
  • Tool Presetter
  • Parts Catcher
  • Chip Conveyor & 400ltr Cart
  • 2x Power Collet Chucks
  • Driven Tool Holder Package

1x Machine & Accessories as above

Available With Optional Hydrafeed MSV65 Bar feed & Bar Support Unit

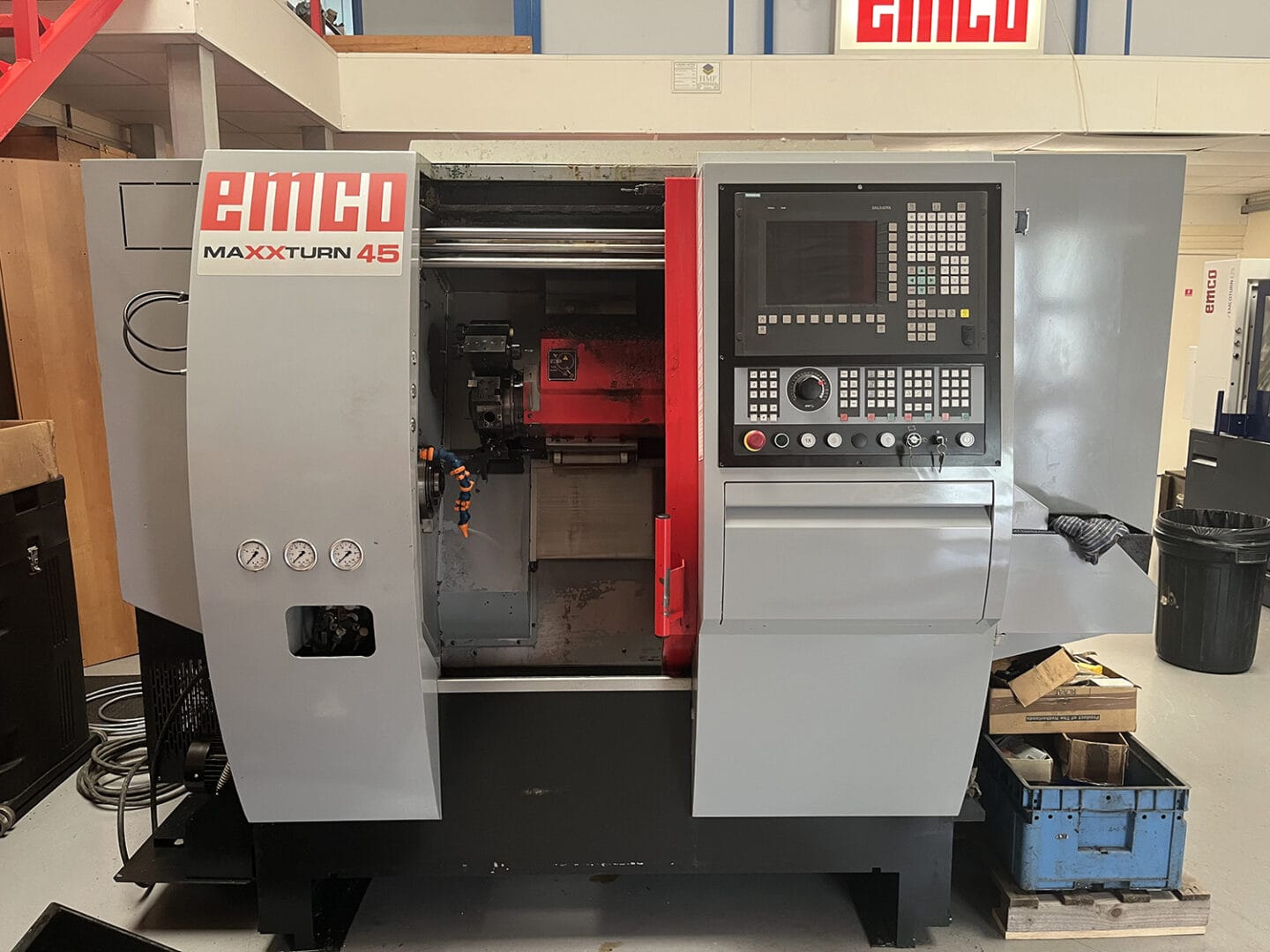

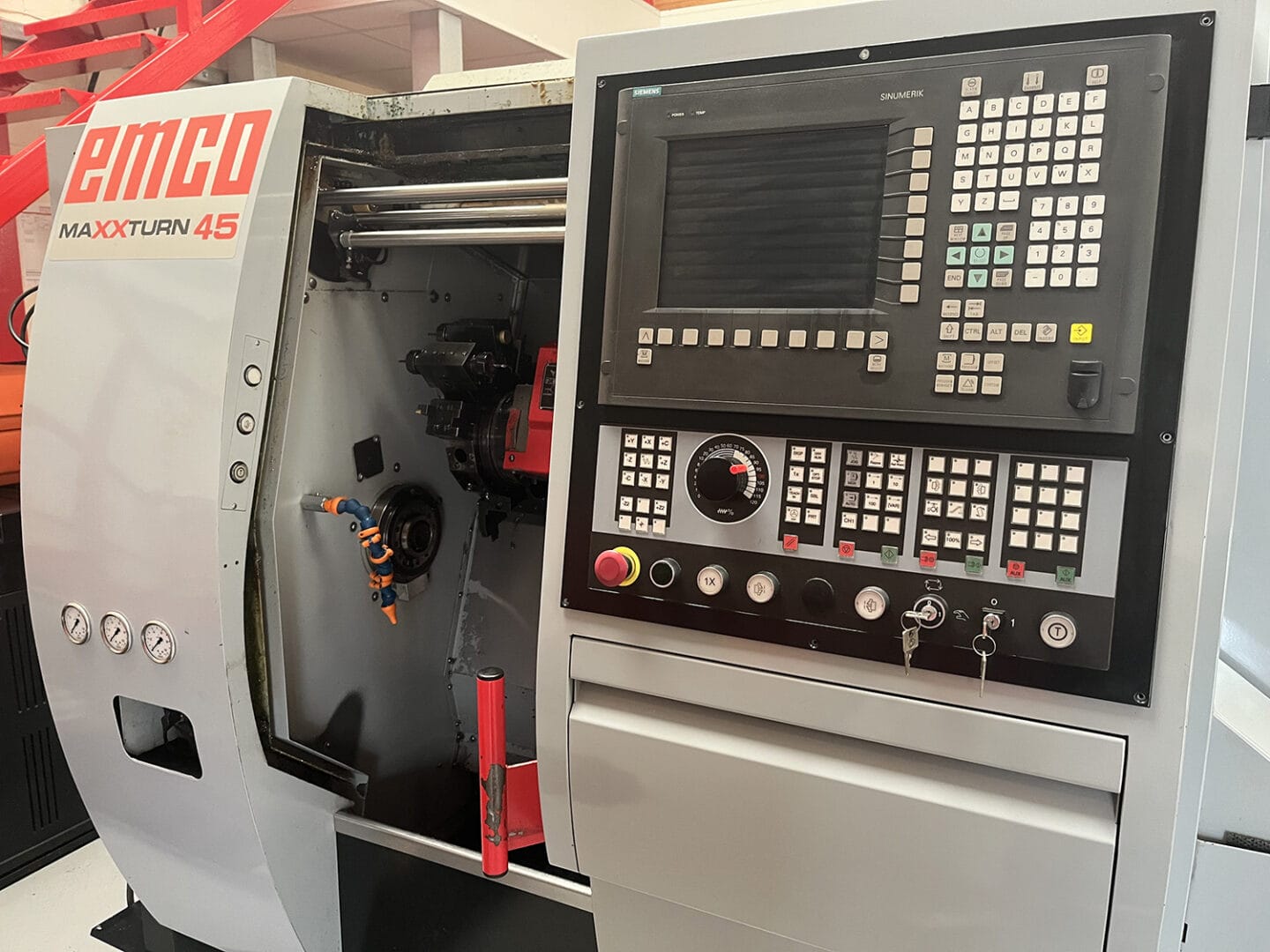

MaxxTurn 45 – Siemens
  • Details to Follow
EmcoTurn 365MC – Siemens
  • Details to Follow
EmcoTurn 220
  • Details to Follow
Hydrafeed ML1 Short Magazine Bar Feed
  • Max Bar Capacity 3 – 80mm
  • Max Bar Length 1200mm
  • 1x Hydrafeed ML1 Short Magazine Bar Feed
  • Delivery and offloading costs not included & to be advised.
Concept Mill 55 with 8 stn ATC
  • Choice of Control Fanuc 31i, Siemens Operate (ShopMill) or Heidenhain
  • Control Keyboard
  • 6 tool holders
  • Machine vice
  • Clamping rails

Additional Options:
Used Machine Base with swivel arm
New Mobile machine base
New Extended Tooling and Toolholder package
New Height Gauge

Isel EuroMod 45 CNC Router with 4 stn ATC – New Stock Machine

  • CNC 3 axis Router, Max. travel X/Y/Z: 450 / 450 / 250 mm (inc tool change area)
  • Clamping area table: 900 x 500 mm
  • Servo drive motors
  • Spindle motor: iSA 2200
  • Auto Tool Changer: 4 Stations
  • Interlocked enclosed guarding system
  • Tool holder package SK20
  • 12pce Collet set ER20 2-13mm
  • 12 Months warranty
  • Delivery, Installation, training
MAKERBOT Method – FDM Technology – NEW STOCK MACHINE
  • FDM based technology
  • Build area – 152 x 190 x 196 mm
  • Layer Resolution 20 – 400 microns
  • Accuracy +/- 0.200mm
  • Dual Extruders with New PVA Support system (dissolves in tap Water)
  • Delivery
  • Material starter kit
  • 12 months Warranty
Z Bench System – Accessory for ZPrinters & Projet 660 – NEW STOCK MACHINE
  • Clean & contained infiltration unit
  • Filters CA-Bond and other odours
  • Self contained
  • Delivery & training
  • 3 months Warranty
SW5 Waxing System – Accessory for ZPrinters & ProJet’s – 2nd Hand Machine
  • Infiltration of 3D models with wax
  • supplied with 16kg of wax
  • suitable for model sizes 360w x 300d x 240mm h
  • self-contained
  • Delivery, Training
  • 3 months warranty
Creaform 3D Scanner – Education Only

Creaform Academia 10
Hand held 3D Scanner – White light source – Demo Unit

  • Part Size Range 300 – 3000mm
  • Resolution 0.500mm
  • Accuracy 0.250mm.
  • Export File Formats – dae. .fbx, .ma, .obj, .ply, .stl, .txt, .wrl, .x3d, .x3dz, .zpr
  • VXelements, VXmodel & VXinspect
  • Delivery, 12 months Warranty

Contact us for more information on any of these systems
