EQUIPMENT
- Main- and counter spindle, milling spindle, B and Y axis
- EMCONNECT – Digital Process Assistant (Sinumerik ONE)
- Additional tool turret with milling drive
- Tool magazine and control unit ergonomically placed
- 40-, 80-, 120-slot chain-type tool magazine
- Max. bar stock diameter 65 (102) mm
TECHNICAL DATA

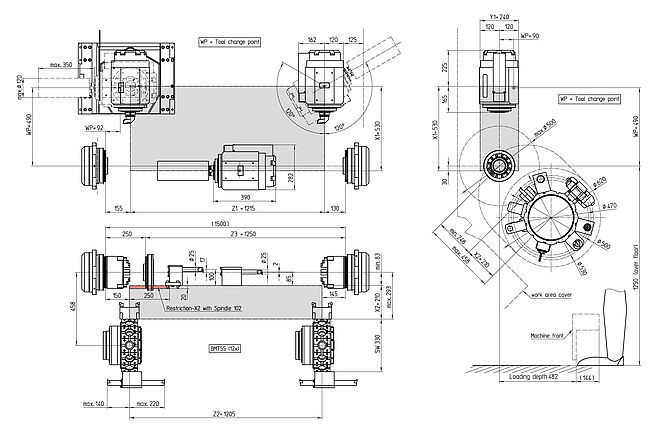

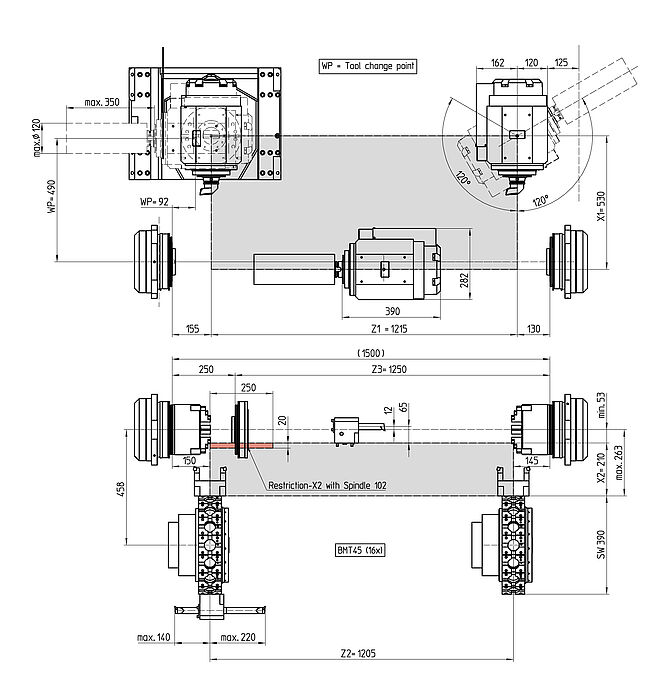

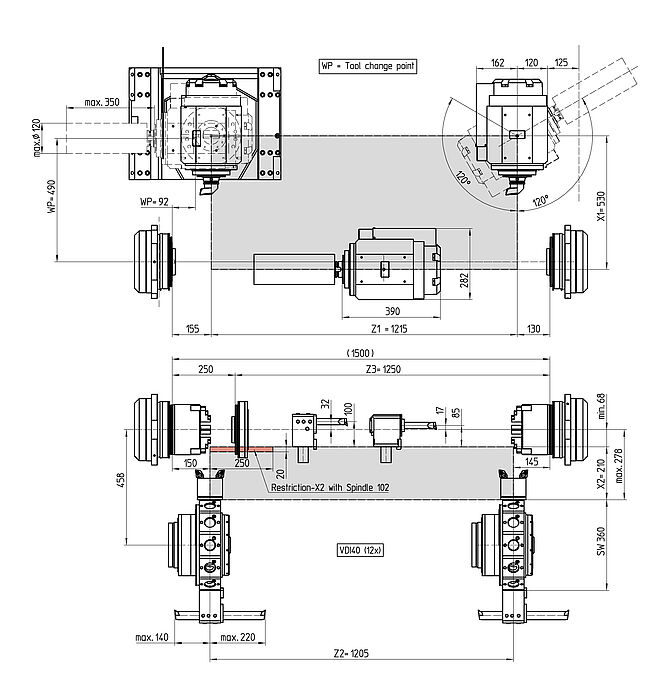

Work area
- Travel in X/Y/Z X1/X2 530/210 mm // Y1 240 mm // Z1/Z2 1215/1205 mm
- Bar diameter 65 (102) mm
- Max. turning diameter 500 mm
- Swing over bed 500 mm
- Spindle distance 1500 mm
Main Spindle
- Max. speed 0-5000 (4000) U/min
- Max. drive power 29 (38) kW
- Max. torque 250 (800) Nm
Counter Spindle
- Max. speed 0-5000 (4000) U/min
- Max. drive power 29 (33) kW
- Max. torque 250 (420) Nm
Tool Turret
- Number of tools 40 / 80 / 120
- Driven tools 12 (16) / BMT55P (BMT45P)
- Max. speed 0-12000 U/min
- Max. drive power 11,7 (11,7) kW
- Max. torque 28 (25) Nm
Milling Spindle
- Max. speed 0-12.000 rpm
- Max. drive power 37 (30) kW
- Max. torque 110 (58) Nm
General Data

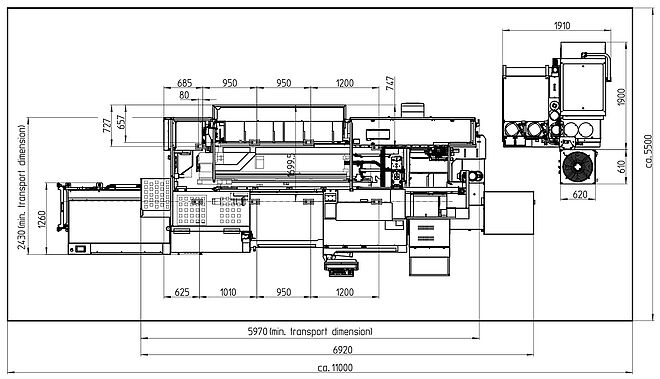

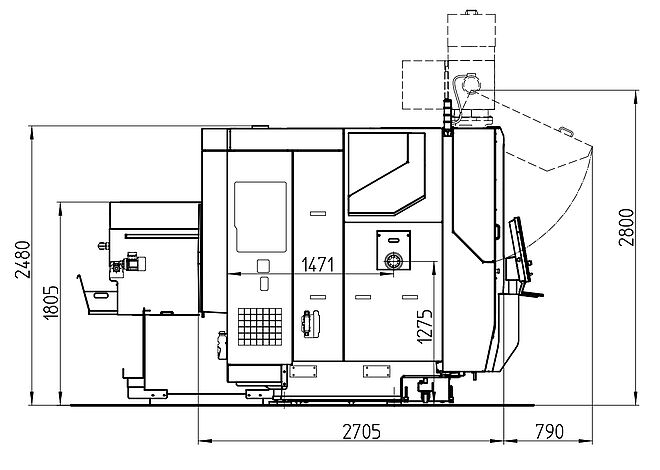

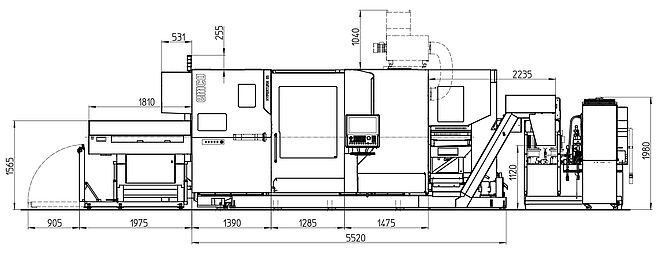

- Dimensions (LxWxH) 5970 x 2430 x 2480 mm
- Machine weight approx. 16500 kg
HIGHLIGHTS
- High dynamics due to state-of-the-art spindle motor technology
- All spindles liquid-cooled for optimum thermostability
- High productivity due to short tool change times
- Bed design for maximum stability and oscillation damping
- Both tool systems can be used on both spindles
- Excellent repeatability due to linear guides
- Short set-up times due to ease of access to the work area
