Lathe CC-D6000 HS Profi

Lead screw CNC lathes

• for metal processing

nccad PROFESSIONAL controller

• Travel speed (rapid traverse) X- and Z-axis 30 – 1000 mm/min

nccad PROFESSIONAL 2½D turning software

• 2½D interpolation, i.e. 2 axes can be displaced simultaneously
• the 3rd axis is intended for controlling the tool turret with 8 tool positions
• Thread cutting in CAD/CAM mode

Ball screws

• are required for the utmost positioning accuracy with nccad PROFESSIONAL

Additional functions

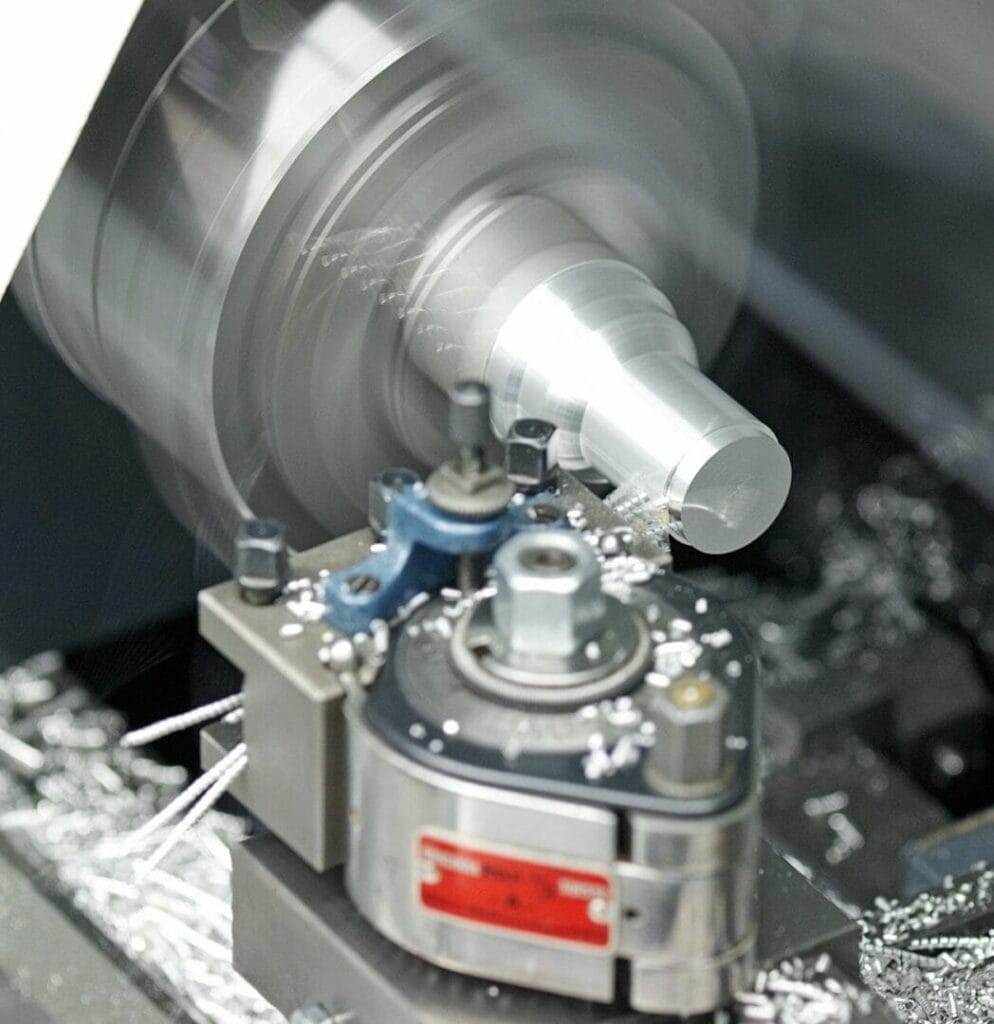

• automated production through the use of the automatic tool turret with 8 tool positions (optional)
• the use of the electronic handwheel (optional)

Program creation

• for creating programs and for controlling the CNC machine a PC is required (PCs are not part of the delivery)
• the PC assumes the program creation, the program administration and the data archiving
• CNC programs can be created on several PCs independently from the CNC machine

Advantage

• the lathes can be used in conventional as well as in CNC mode

Silent running

• Extremely silent running due to modern electronically adjustable drive technology

Prismatic cast iron bed

• made of diagonally ribbed gray cast iron
• inductively hardened and ground guideways

Standard equipment

• 3-jaw lathe chuck Ø 125 mm
• Live center MT2
• Main spindle bore Ø 20 mm
• Thread cutting
  with lead screw drive and change gear quadrant
  tumbler gear for left- and right-hand threads
  change gear set for metric 0.25 – 7.0 mm and inch 10 – 40 TPI threads
  2 automatic longitudinal feed rates/lead screw drive 0.085 and 0.16 mm/rev

Working range

• 600 mm center distance
• 135 mm center height
• Workpiece diameter max. 270 mm

Main drive motor

• 230 V, 50/60 Hz
• 2.5 kW, 50 – 5000 rpm
• frequency-controlled main drive motor
• with overload protection
• Main spindle drive which can be adjusted by means of a potentiometer over a wide range of cutting speeds
• constant torque throughout the entire speed range

Application

• for craft, workshop, industry and education use

Warranty

• 2 years warranty – the warranty does not cover parts subject to wear
• Availability of spare parts also guaranteed after warranty period

Note

• Upgrading a manual WABECO lathe with CNC components, connecting a WABECO nccad controller and a PC makes it now a high precision CNC lathe
• To meet industrial standard safety requirements this to CNC converted lathe should be installed into a machine safety cabin. Please refer to local safety standard requirements.
• Without a machine safety cabin a CNC lathe does not meet CE listed requirements and can result in serious injuries

Personal tours

• You are cordially invited to visit our showroom in Remscheid. Come and convince yourself of the quality and precision of the WABECO machines and reap the benefits of a thorough consultation.

Special machine construction

• We also offer special machine contruction – please contact us.

Working range
Center distance	600 mm
Center height	135 mm
Turning Ø above cross slide	170 mm
Turning Ø above the guideways	270 mm
Bed width	185 mm
Machine precision
Machine precision	according to DIN 8606
True running accuracy of spindle nose	0.005 mm
cylindrical turning to 100 mm cantilevered	0.01 mm
cylindrical turning with a finishing cut to 300 mm between the centers	0.015 mm
Positioning accuracy	± 0.015 mm
Main drive motor
Main drive motor 230 V, 50/60 Hz	2.5 kW
electronically infinitely variable drive	50 – 5000 rpm
Drive technology
Spindle electronics with multiple fault monitoring circuit	●
e.g. turning a steel shaft Ø 50 mm in one infeed	approx. 5 mm
Headstock
Housing made of grey cast iron	●
V-shaped slot	scraped by hands
Spindle head in 2 adjustable precision DIN tapered roller bearings	●
Right-left rotation of the main spindle	●
Intermediate gear between main spindle and drive	●
high torque even in the lower speed range, e.g. for machining hard-to-cut materials	●
Main spindle bore	Ø 20 mm
Taper in main spindle	MT3
Main spindle nose Ø 70 mm	according to DIN 6350
Tailstock with quick adjustment
lateral adjustability of tailstock upper part	± 10 mm
Tailstock sleeve	with an internal MT2 morse taper
Travel of tailstock sleeve	65 mm
Scale ring reading accuracy	0.1 mm
Tool slide
universally adjustable	●
Dovetail guides	readjustable free of play
Reading accuracy of the scale rings	0.05 mm
Travel of cross slide	140 mm
Travel of longitudinal slide	60 mm
Longitudinal slide can be swiveled through	360°
max. height of turning tools	20 mm
Cutting scrapers prevent dirt and cuttings entering the guideways	●
Thread cutting (in conventional operation)
with lead screw drive and change gear quadrant	●
Tumbler gear	for left- and right-hand threads
2 automatic longitudinal feeds conventional	0.085 and 0.16 mm/rev
Change gear set for thread cutting	metric 0.25 – 7.0 mm inch 10 – 40 TPI
Overload clutch (in conventional operation)
on the lead screw and the lead screw drive to avoid damage to the feed system	●
Stepper motors
maintenance-free	●
Travel speed (rapid traverse)
X- and Z-axis	30 – 500 mm/min
Limit switches X- and Z-axis
mechanical single limit switch	●
Dimensions and weight
Machine dimensions without packaging	W1230 x D630 x H470 mm
Weight without packaging	199 kg
