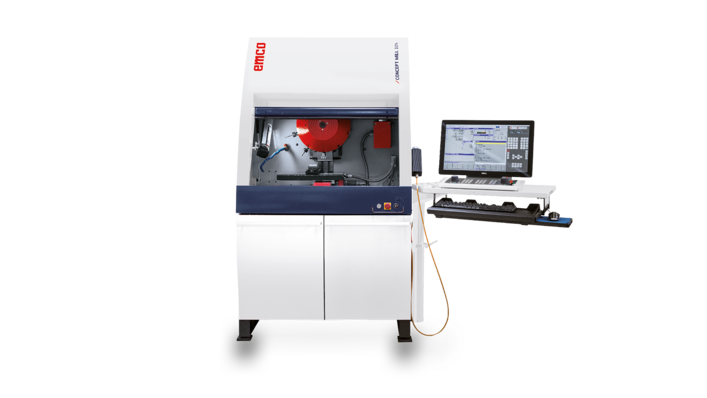

CONCEPT MILL 105

CNC MILLING MACHINES

Equipped with interchangeable software modules; Travel in X from 190 to 600 mm

EQUIPMENT

  • Compact CNC desktop Milling machine
  • Infinitely adjustable main drive
  • Robotic interface for integration into FFS/CIM systems
  • High-resolution axis motors
  • Engraving Spindle Facility
  • Safety technology according to the latest lathes standard
  • Automatic 10 station tool turret
  • NC dividing unit as an optional fourth axis
  • Made in the Heart of Europe

TECHNICAL DATA

WORK AREA

Travel in X/Y/Z 200 / 150 / 250 mm
Distance spindle nose 95 – 245 mm
Rapid motion speeds in X/Y/Z 5 m/min
Work feed X/Y/Z 0 – 5 m/min
Feed force in X/Y/Z 2000 N
Clamping area 420 x 125 mm
Max. table load 10 kg

MAIN SPINDLE

Max. speed 5000 rpm
Max. drive power 1.1 kW
Max. torque 4.2 Nm

MOTOR SPINDLE

Max. Torque 4,2 Nm

TOOL CHANGE

Number of tool stations 10
Max. tool diameter 55 mm
Max. tool length 50 mm

MILLING SPINDLE

Max. speed 5000 rpm
Max. drive power 1.1 kW

GENERAL DATA

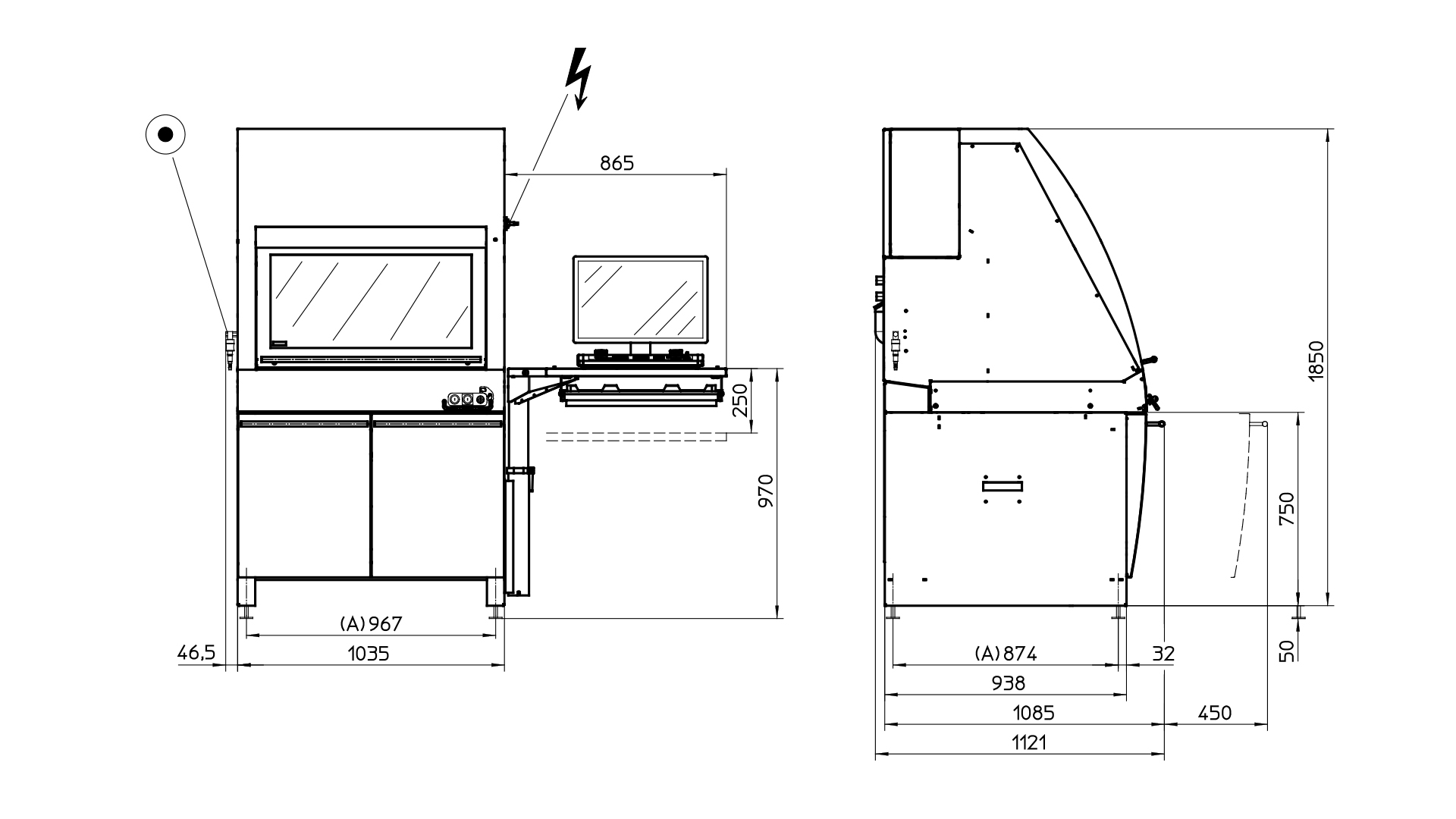

Dimensions (LxWxH) 1135 x 1100 x 1100 mm
Machine weight 400 kg

HIGHLIGHTS

  • Stable gray cast iron construction
  • Infinitely variable main and feed drives
  • Spindle bearing lubricated for life
  • Fully covered work area
  • Backlash-free storage of the work spindle in accurate angular ball bearings lubricated for life
  • CNC 3D continuous path control
  • Clockwise/counterclockwise spindle rotation
  • Guide ways with automatic central oil lubrication
  • Automatically reference points
