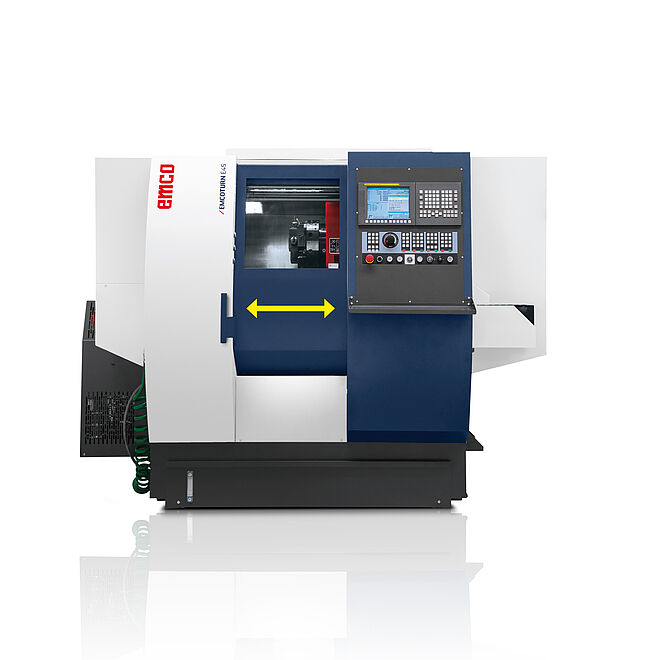

EMCOTURN E45
Modular CNC turning machines for economic machining of chuck, shaft and bar stock parts; bar sizes 25-95mm.

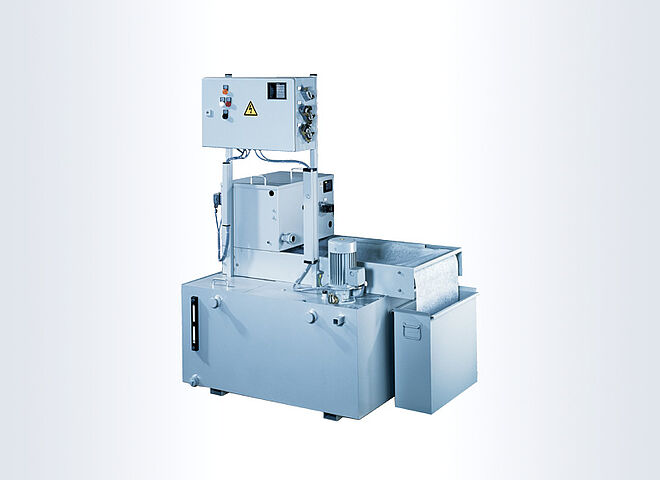

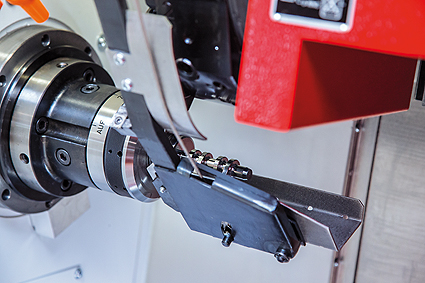

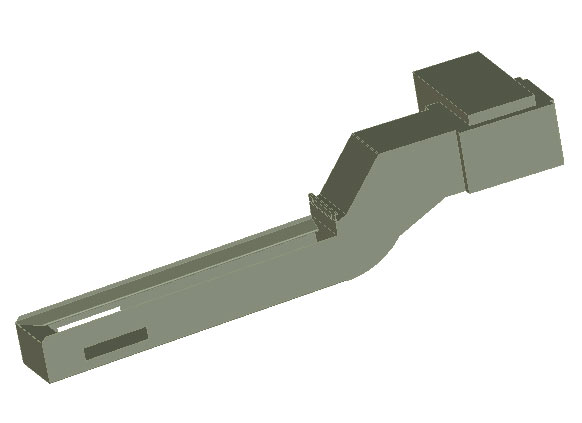

EQUIPMENT

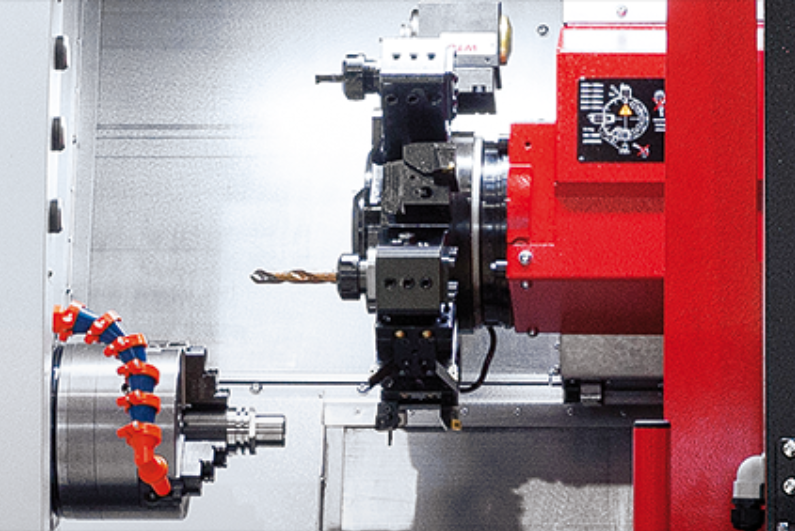

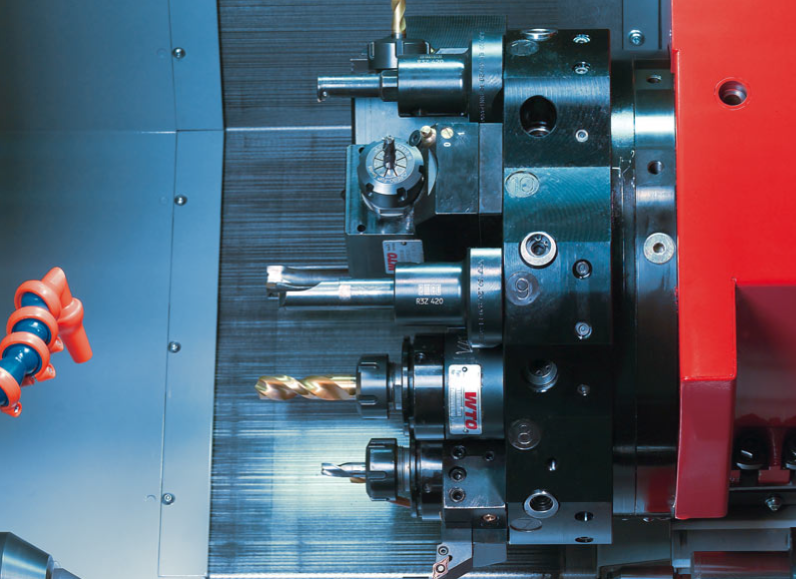

- Main spindle with large speed range Tool turret with 12 VDI16 tool stations
-

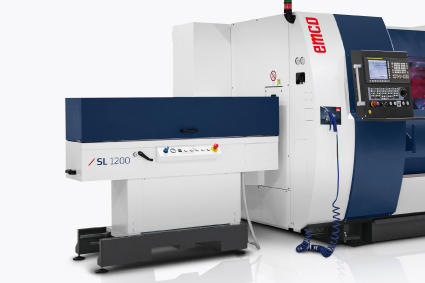

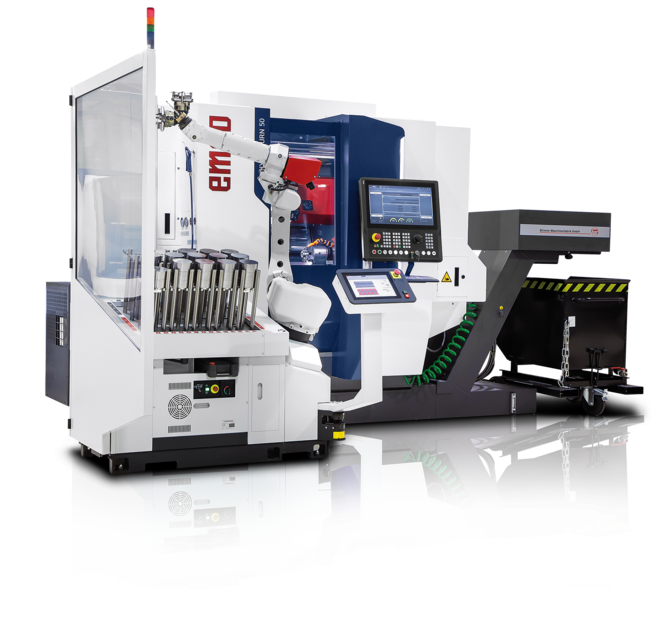

Short rod loader LM 1200
- Driven tools C axis for main spindle

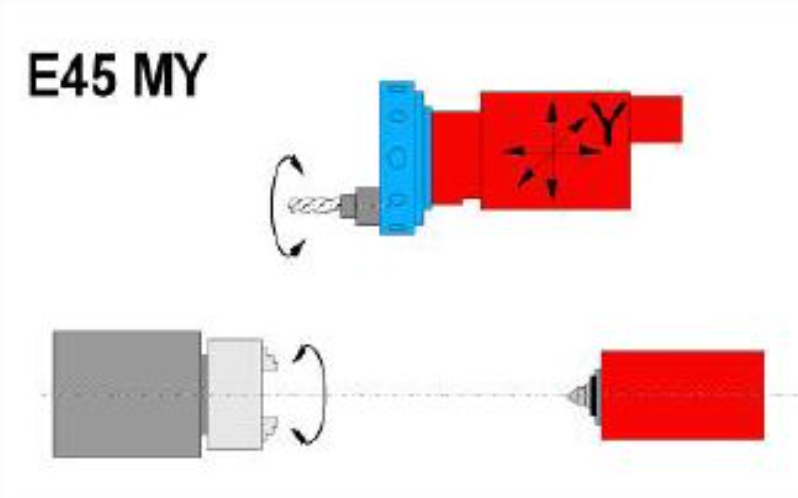

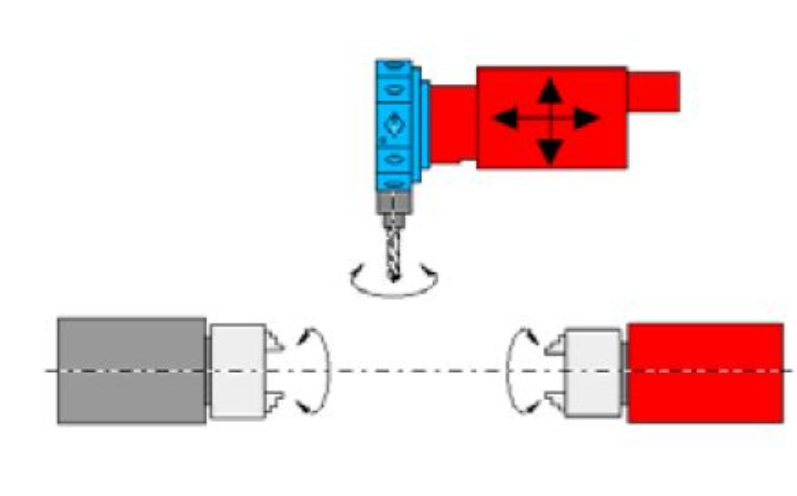

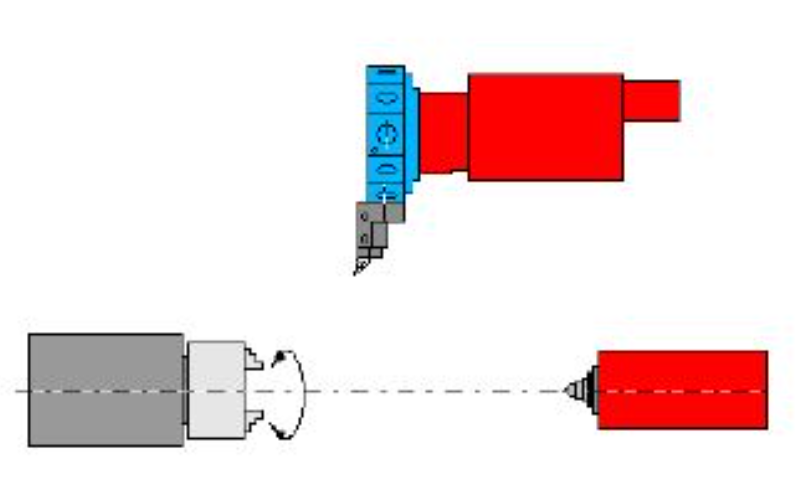

- Stable Y axis integrated in the Basic machine design

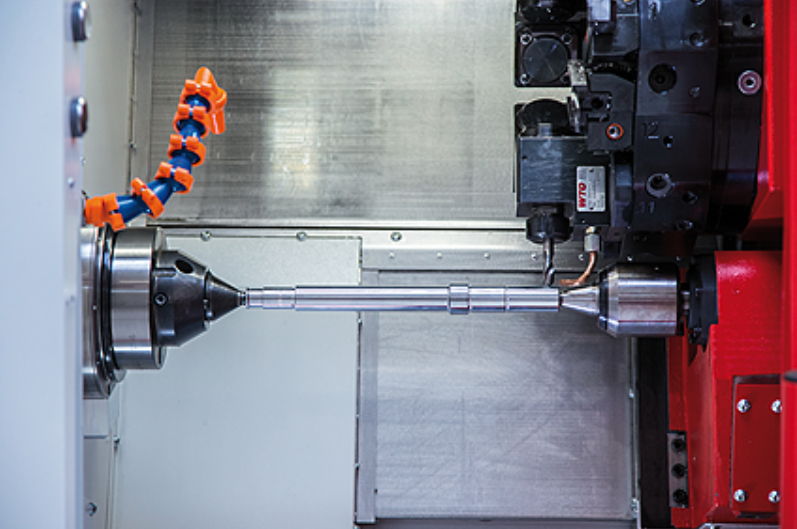

- Automatic tailstock for quill bore taper MT 4

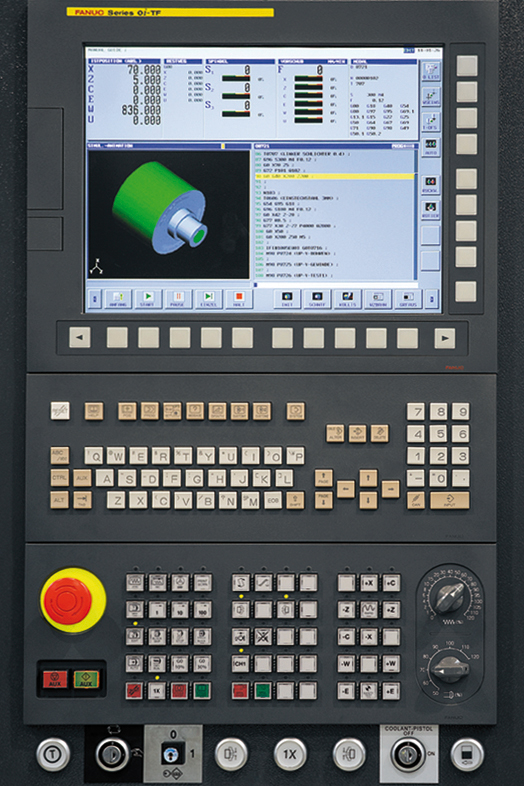

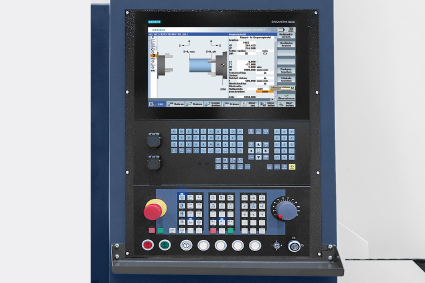

- Sinumerik 828D, Fanuc 0iTD or Heidenhain CNC Pilot 640
TECHNICAL DATA

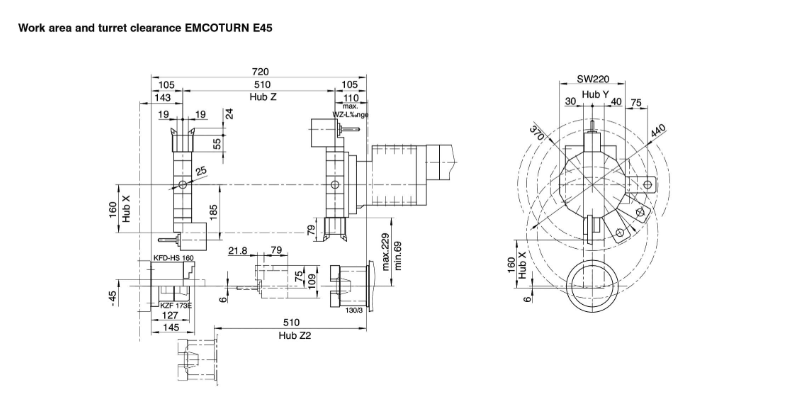

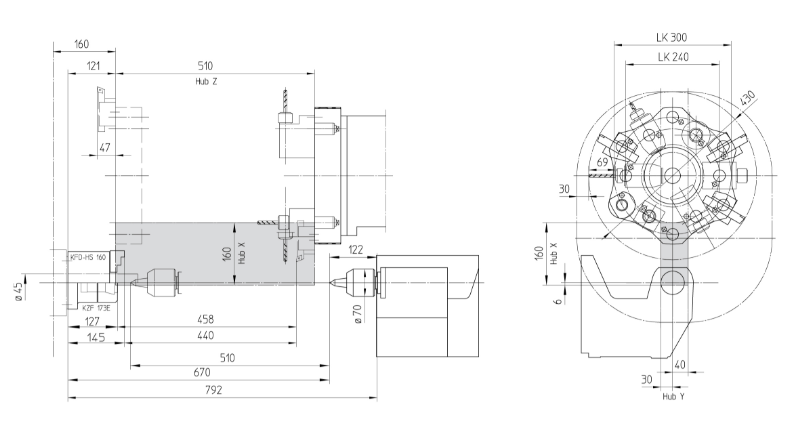

WORK AREA
| Travel in X/Y/Z | 160//+40/-30 / 510 mm |
| Bar diameter | 45 (51) mm |
| Max. turning diameter | 220 mm |
| Swing over bed | 430 mm |
| Rapid motion speeds in X/Y/Z | 24/10/30 m/min |
MAIN SPINDLE
| Max. speed | 6300 (5000) rpm |
| Spindle nose | A2-5 |
| Max. drive power | 13 kW |
| Max. torque | 78 (100) Nm |
TAILSTOCK
| Inner cone | MK4 |
| Travel (automatic) | 510 mm |

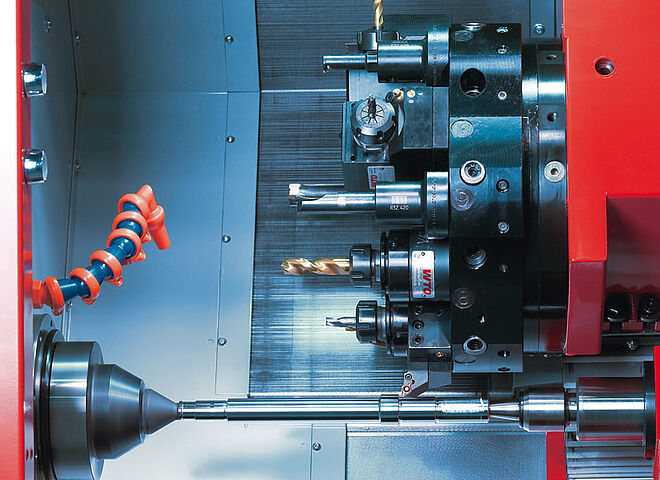

TOOL TURRET
| VDI size | 30 |
| Number of tools | 12 |
| Driven tools | 6 |
| Max. speed | 5000 rpm |
| Max. drive power | 4 kW |
| Max. torque | 16 Nm |
GENERAL DATA

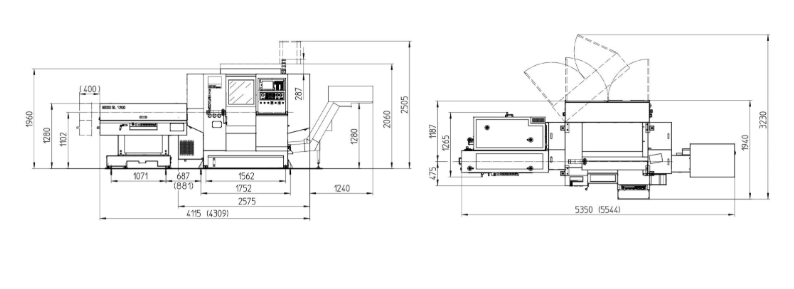

| Dimensions (LxWxH) | 2275 x 1790 x 1958 mm |
| Machine weight | 4000 kg |

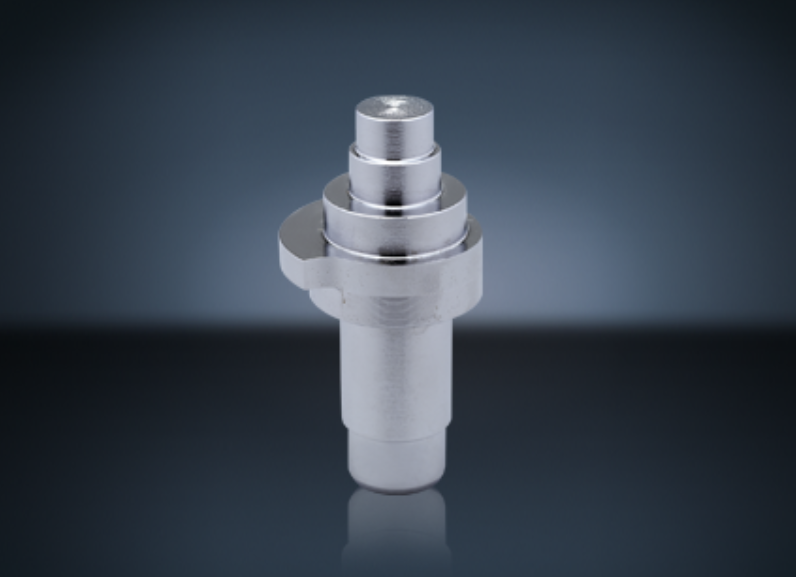

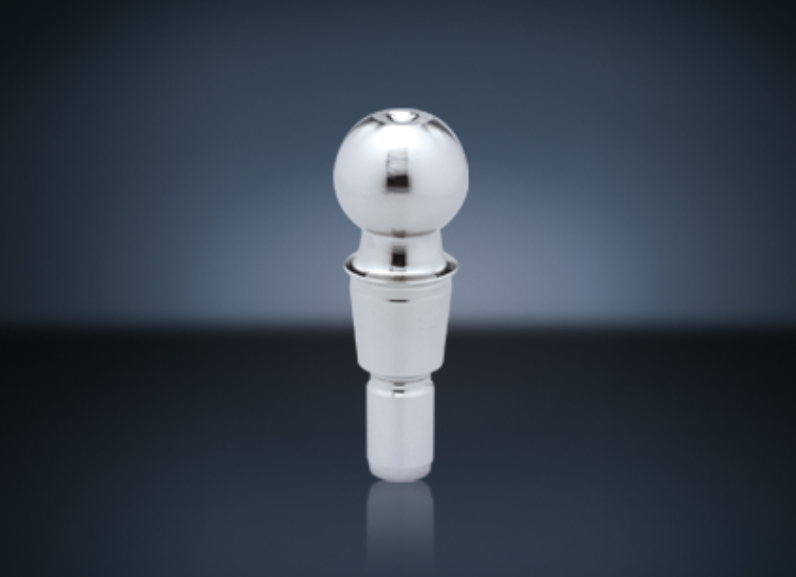

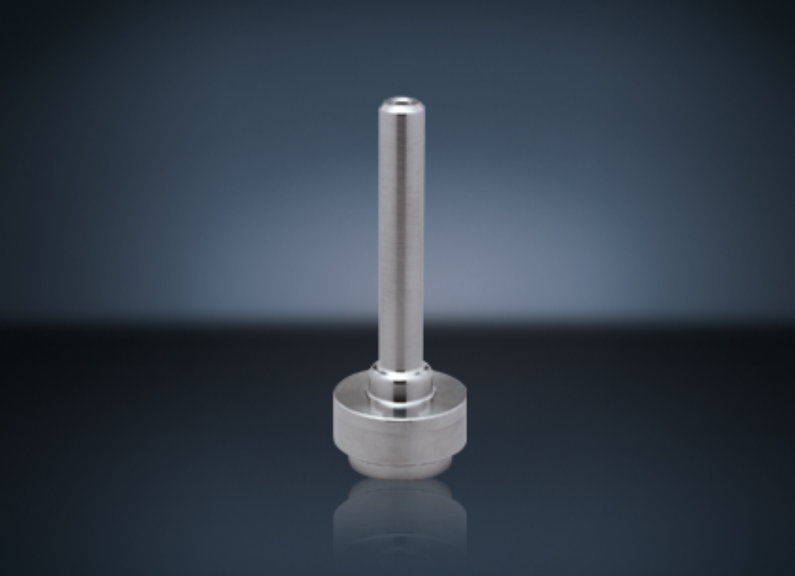

HIGHLIGHTS
- General engineering
- Medical engineering

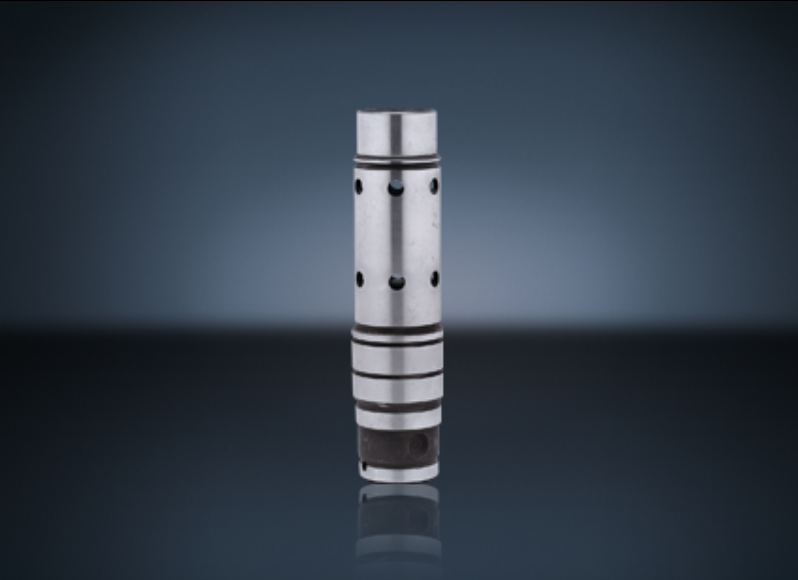

- Hydraulic components
- Fixing systems
- Pneumatic components
- Materials technology
