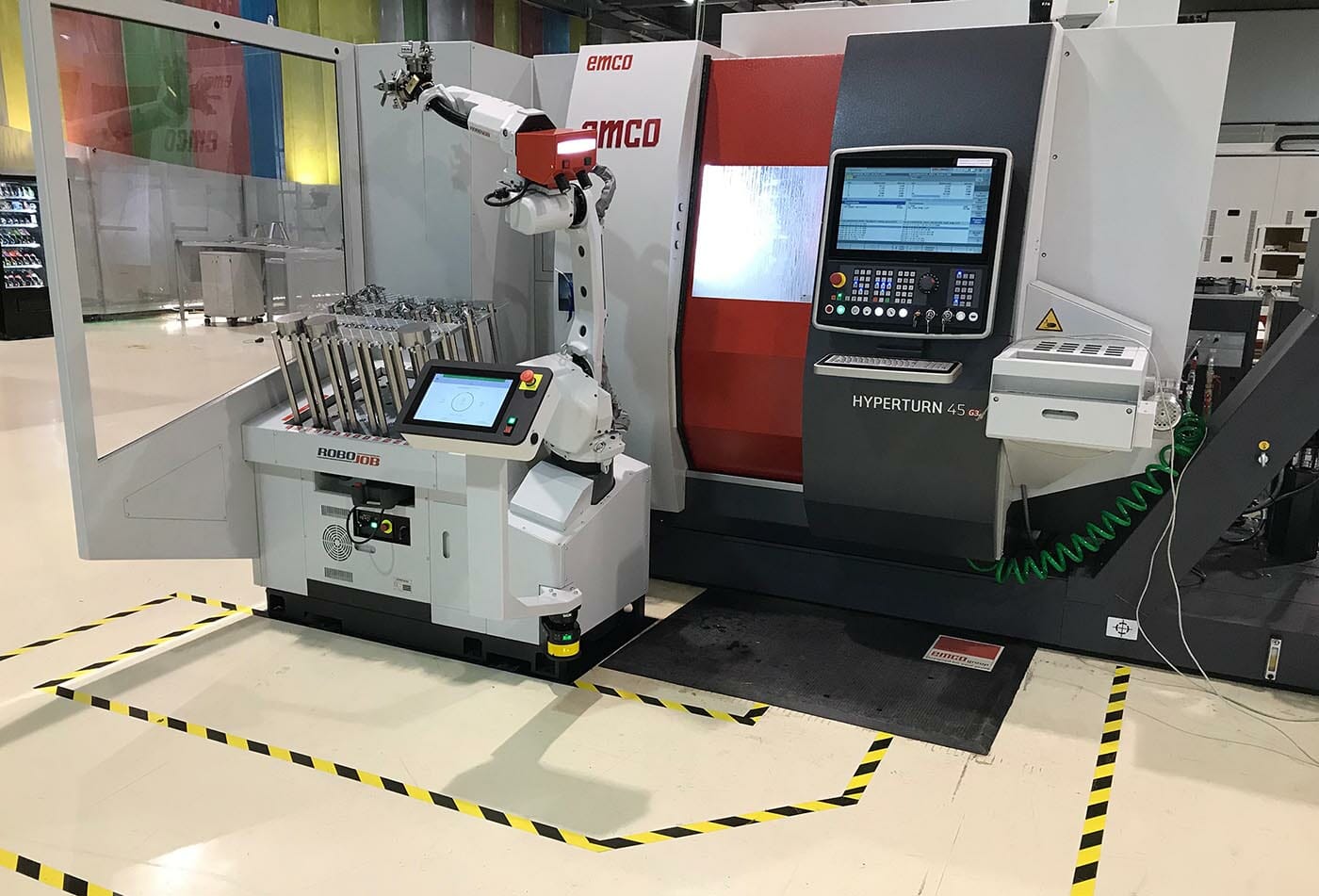

HyperTurn 45 CNC lathe with Robo automation solution

EQUIPMENT

  • New design/ new colour: Target date upon request
  • 2 tool turrets
  • 2 spindles
  • Powerful milling spindle
  • C-axis for main and counter spindle
  • Driven tools on both turrets

TECHNICAL DATA

Work area

  • Travel in X/Y/Z: 160 /+40/-30 /510 mm
  • Bar diameter: 45 (51) mm
  • Max. turning diameter: 300 mm
  • Swing over bed: 430 mm
  • Rapid motion speeds in X/Y/Z: 30 / 15 / 45 m/min

Main spindle

  • Max. speed: 7000 rpm
  • Max. drive power: 15 kW
  • Max. torque: 100 Nm

Counter spindle

  • Max. speed: 7000 rpm
  • Max. drive power: 15 kW
  • Max. torque: 100 Nm

Tool turret

  • VDI size: 25
  • Number of tools: 12
  • Driven tools: 12
  • Max. speed: 6000 rpm
  • Max. drive power: 4 kW
  • Max. torque: 16 Nm

Tool turret 2

  • VDI size: 25
  • Number of tools: 12
  • Driven tools: 12
  • Max. speed: 6000 rpm
  • Max. drive power: 4 kW
  • Max. torque: 16 Nm

HIGHLIGHTS

  • Spacious Work Area
  • 12-station tool turrets
  • Fanuc 31iB with 22” Multi-Touch Panel
  • Highly dynamic drives in all axes
  • Stable Y axis
  • Compact dimensions
  • Two high-performance work spindles
  • EMCONNECT – Digital Process Assistant (Siemens 840D sl)
  • Made in the Heart of Europe

DOWNLOADS

BRISKER_CNC_TURNING_CENTER_HT_45_EN
DUNGS_GMBH_HT45_VT250
CNC_TURN_MILL_CENTER_HYPERTURN_45
