EQUIPMENT
- CNC machine turning with main and counter spindle in three spindle sizes ø65 ( ø76,2/ø95) mm
- Coolant unit with belt filter system
- Milling spindle with tool changer, 40-fold tool magazine HSK-T63, B- and Y-axis
- Maximum 24 driven tools in the lower tool system
- Additional two tool turrets with powerful milling drive including X/Y/Z axes
- Finished part unloading device
- EMCONNECT – Digital Process Assistant (Sinumerik ONE)
TECHNICAL DATA

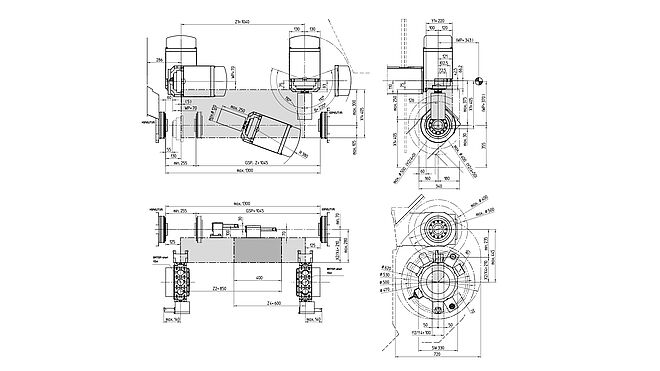

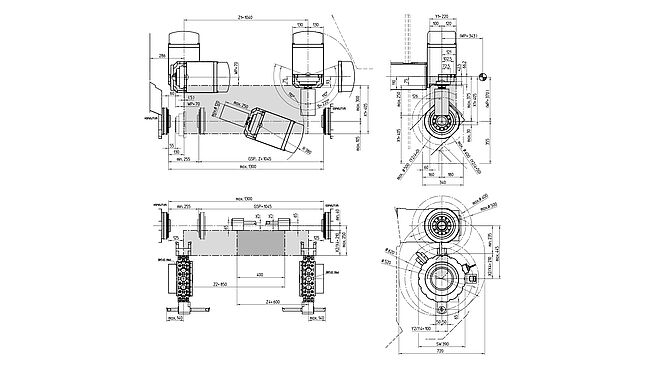

Work area
- Travel in X/Y/Z X1/X2/X4 405/210/210 mm // Y1/Y2/Y4 220/100/100 mm // Z1/Z2/Z4 1040/850/600 mm
- Bar diameter 65 (76,2/95) mm
- Swing over bed 500 mm
Counter Spindle
- Max. speed 0–5000 (4000/3500) rpm
- Spindle nose A2-6 (A2-8)
- Max. drive power 29 (29/29) kWMax. torque 250 (250/250) Nm
Main spindle
- Spindle nose A2-6 (A2-8)
- Max. speed 0 – 5000 (4000/3500) U/min
- Max. drive power 29 (29/37) kW
- Max. torque 250 (250/360) Nm
Tool turret
- Number of tools 2×12 (2×16)
- Driven tools BMT55P (BMT45P)
- Max. speed 0 – 12000 rpm
- Max. drive power 11,7 (11,7) kW
- Max. torque 28 (25) Nm
General Data

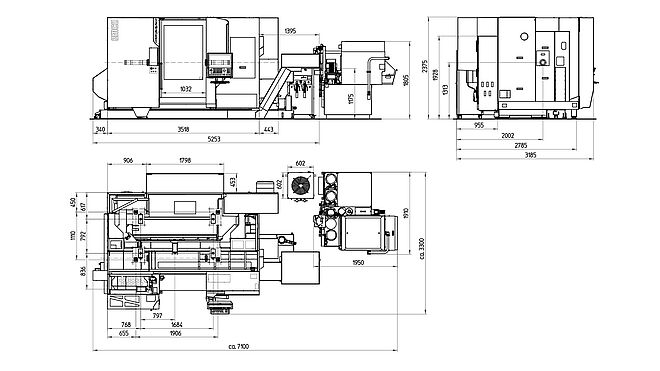

- Dimensions (LxWxH) 5253 x 3200 x 2375 mm
- Machine weight 13500 kg
