ICUTWATER SMART
Modern water jet systems for the realisation of your product concepts
DESCRIPTION

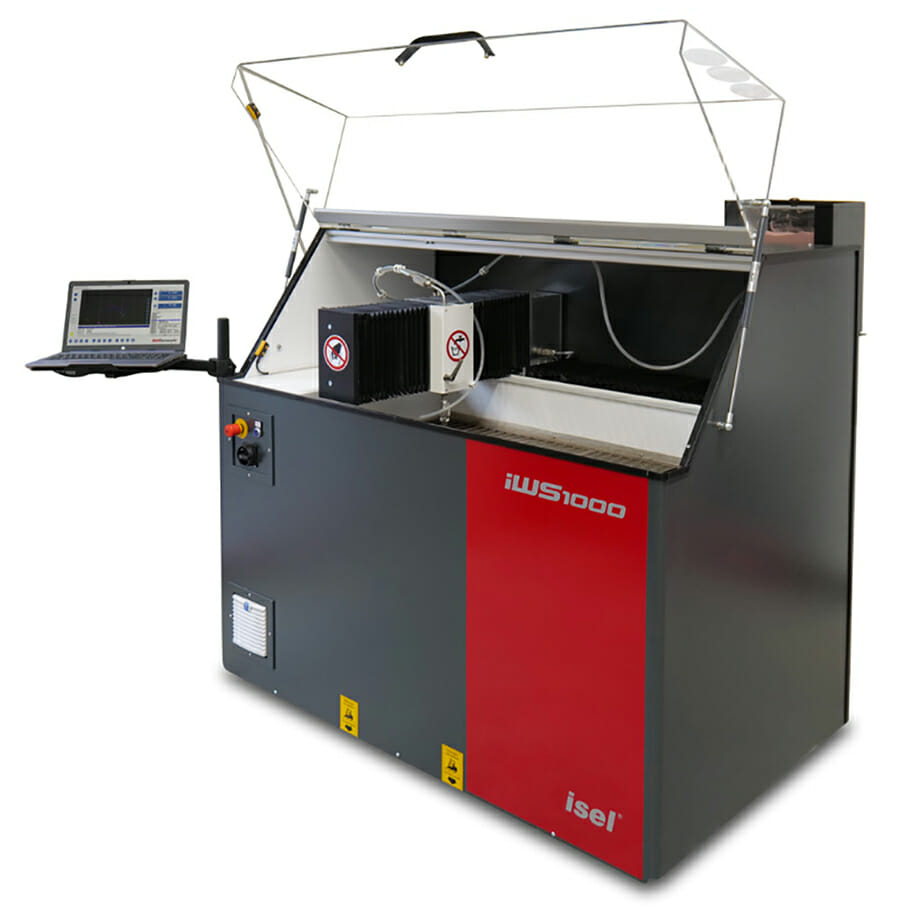

The iCUTwater SMART is the first choice for small series, educational institutions and workshops. Our goal was to realize a compact and inexpensive water jet system, which requires as little effort as possible, to set up, maintain and operate.
The machine can be connected to a regular 16 A power connection, and works cleanly and quiet through their housing.The high-pressure pump, developed and manufactured in Germany, is completely integrated in the machine.
TECHNICAL DATA
Travel ranges in mm: Basic III 1010 (1050 / 1050 / 150) Basic III 2010 (2050 / 1050 / 150) Basic III 3020 (3050 / 2050 / 150)
Table clamping area WxD in mm: Depending on the type
Dimensions (W x D x H) in mm: Basic III 1010 (2100 x 2260 x 2200) Basic III 2010 (3100 x 2260 x 2200) Basic III 3020 (4100 x 3260 x 2200)
Z-clearance in mm: Depending on the type
Weight in kg: Basic III 1010 ( approx. 2500) Basic III 2010 ( approx. 3000) Basic III 3020 ( approx. 3500)
Speed range: 30 m/min
Repetition accuracy: /
Drive motors: Linear motors (X / Y) and servo motor (Z)
Guides: Low-maintenance heavy duty steel ball circulation profile rail guides (X / Y) and linear guides with ball circulation slides (Z)
Drive elements (X/Y/Z): Linear drives (X / Y) and play-free adjustable ball screw (Z)
Connection voltage: 400 V / 16 A
Control: B&R®
Operation: B&R® operating panel with hand-held operating unit
Software: CNCGEN
Typical materials: Aluminium, Ceramic, Composite materials, Glass/bulett-proof glass, Granite, Marble, Stainless steel, Steel
Application examples: Aerospace industry, Building industry, Defence engineering/equipment industry, Glass industry, Machine construction, Shipbuilding, Stone/marble processing, Workshop machine
HIGHLIGHTS
COMPLETE ENCLOSURE
Operator protection (housing made of unbreakable acrylic glass)
INSTALLATION OPTIONS
Two installation variants possible
SEDIMENTATION TANK
Integrated sedimentation tank for waste water pre-treatment
DIMENSIONS
Small footprint of 1350 x 920 x 1450 mm
WORK AREA
1000 x 500 mm
WEIGHT
Low weight (only 800 kg incl. Water)
NOISE
Low noise emission (only < 78 dB in cutting mode)
