UNIVERSAL TURN 50
More performance. More precision. More future. The new benchmark in universal turning.
EQUIPMENT

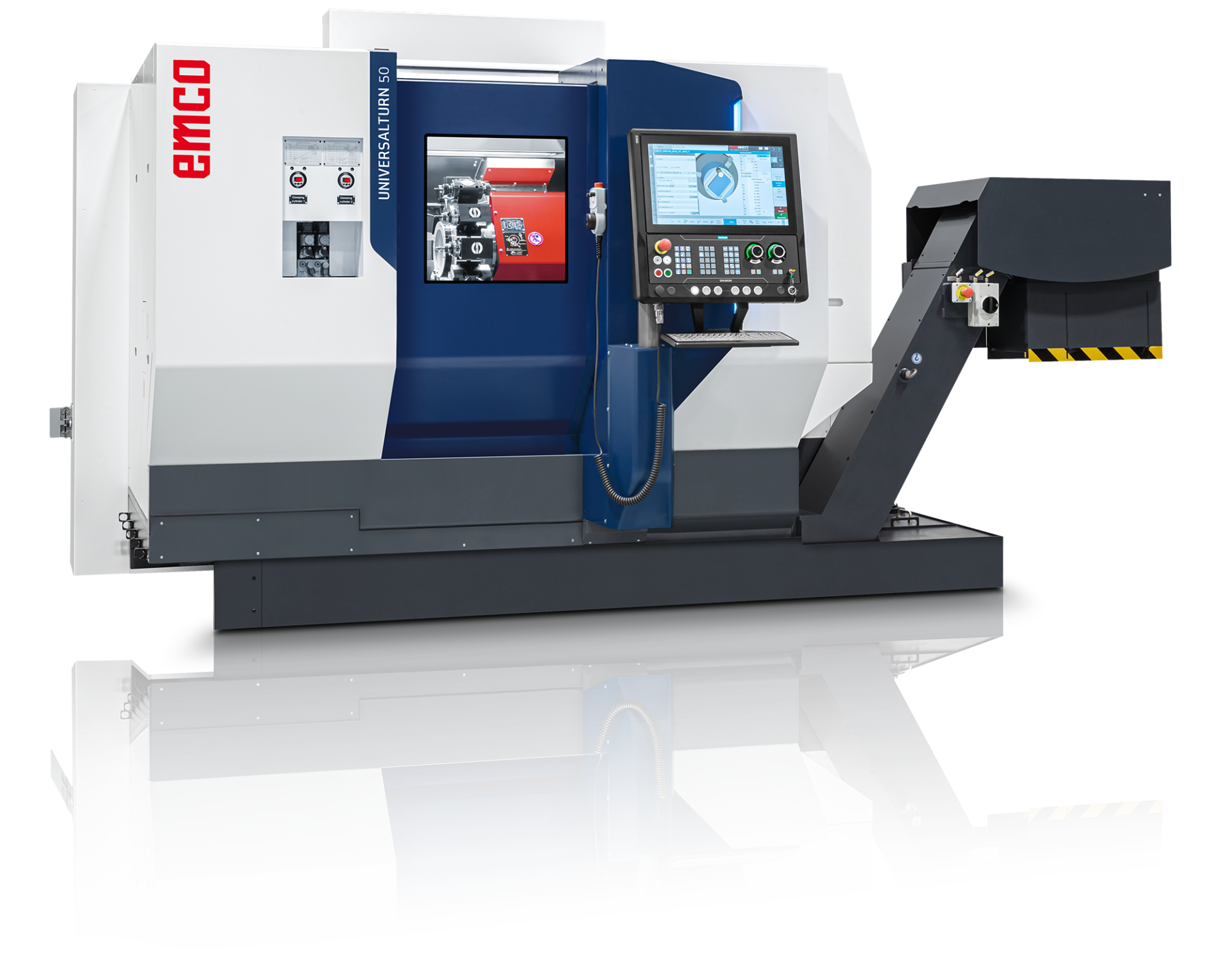

- EMCO UNIVERSALTURN 50 – Universal lathe, precise and powerful!
- Maximum cutting efficiency
- Maximum precision
- New, completely revised modular system and basic design
- High flexibility
- Top-quality universal turning, drilling, and milling – even for batch sizes of 1
- Outstanding basic stability
- Optimal vibration damping
- Ergonomic design
TECHNICAL DATA
WORK AREA
| Travel in X/Y/Z | 175 / + 40 – 40 / 510 mm |
| Bar diameter | 50 / 50,8 mm |
| Max. turning diameter | 200 mm |
| Swing over bed | 430 mm |
MAIN SPINDLE
| Max. speed | 6,200 rpm |
| Spindle nose | DIN 55026 KK5 |
| Max. drive power | . kW |
| Max. torque | 71 / 143 Nm (belt drive M+MY) /105 / 147 Nm (direct drive SMY) |
COUNTER SPINDLE
| Max. Speed | 6,200 rpm |
| Spindle nose | DIN 55026 KK5 |
| Max. torque | 105 / 147 Nm (direct drive SMY) |
TOOL TURRET
| VDI size | VDI 30 (M+MY) |
| Number of tools | 12 |
| Driven tools | 6 |
| Max. speed | 5000 rpm |
| Max. drive power | 4 kW |
| Max. torque | 16 Nm |
TOOL TURRET 2
| VDI size | BMT45P |
| Number of tools | 12 |
| Driven tools | 12 |
| Max. speed | 0-12,000 rpm |
| Max. drive power | 8.8 kW |
| Max. torque | 21 Nm |
GENERAL DATA
| Dimensions (LxWxH) | 3320 x 2350 x 2100 mm (M+MY) / 3500 x 2600 x 2100 (SMY) |
| Machine weight | . |
HIGHLIGHTS
- High-precision turning centre for efficient complete machining of bars up to 51 mm bore
- Scalable automation solutions – from integrated swivel loaders to gantry systems
- Absolute measuring system for maximum repeat accuracy without reference point homing
- Made in the Heart of Europe
- Integrated Y-axis for extended milling and maximum machining versatility
- Compact counter spindle for precise rear-side machining without additional re-clamping
- Intuitive operation with SINUMERIK ONE – optionally available with FANUC 0i plus control from 2026
- Highly dynamic drive systems for fast machining cycles and maximum accuracy
- Powerful tool turret with up to 12 driven tool positions
- Stable cast machine bed for maximum rigidity, damping and process reliability
- Perfectly coordinated machine concept for applications in mechanical engineering, automotive, medical technology, defence and more
