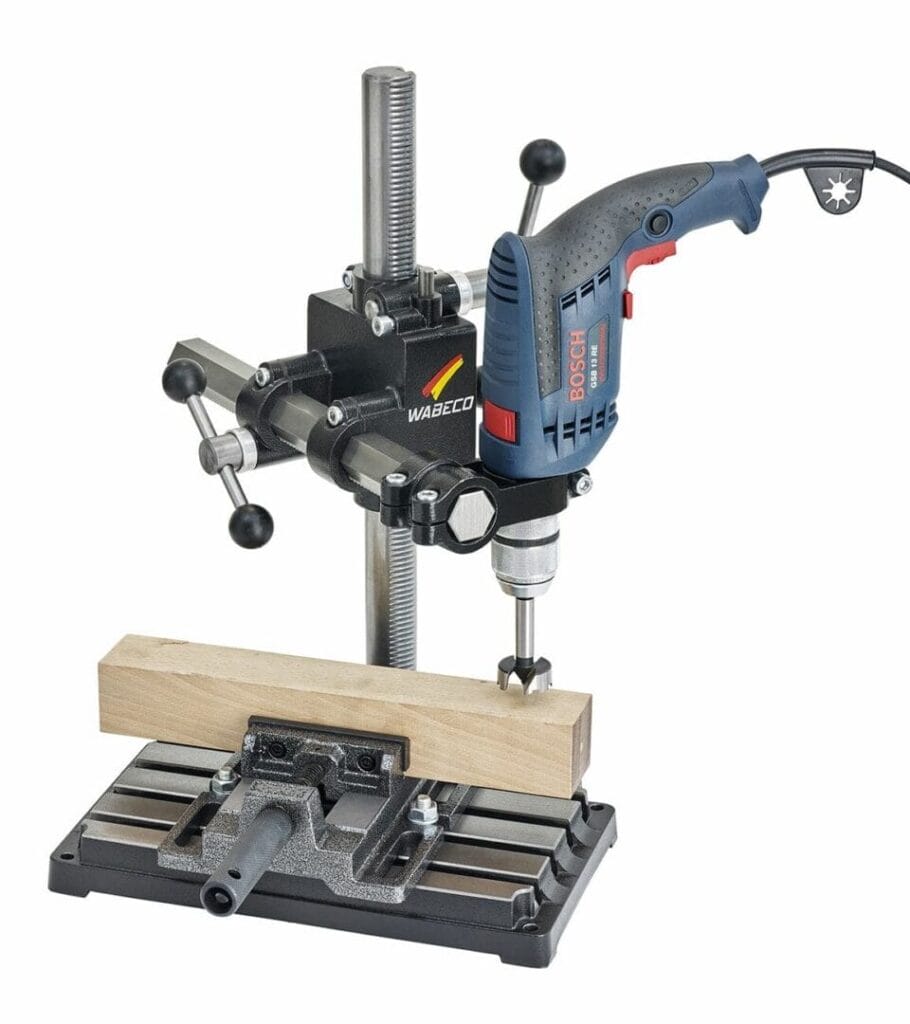

Drilling milling stand BF1243-3SD with 3-spoke hub z- and y-axis

DESCRIPTION

with 3-spoke hub Z- and Y-axis

  • convenient infeed of the Z-and Y-axis thanks to three feed levers
  • for vertical infeed Z-axis
  • for horizontal infeed Y-axis
  • with adjustable scale rings
  • factory installed

Unique with 2 infeed axes

  • for vertical and horizontal drilling and milling works
  • Z-axis – vertical infeed axis for drilling works
  • Y-axis – horizontal infeed axis for milling works

Ingenious

  • the steel column can be rotated through 360° in the base plate and can be locked in any position, enabling the machining from all sides and the machining of larger workpieces

Space-saving

  • flexible and space-saving alternative to table drilling machines, pillar drilling machines and column drilling machines

Application

  • drilling, milling, woodturning and turning
  • for processing metal, wood and plastics

Precise drilling and milling

  • the workpiece can be positioned under the tools precisely

Design

  • 750 mm total height steel column
  • 500 mm total length hexagonal steel boom

Working range

  • 500 mm travel Z-axis
  • 325 mm travel Y-axis

It‘s off to the workshop

with the unique multi-talented systems,

that home workers dream about and that impresses the professionals

TECHNICAL DATA

Working range
vertical travel Z-axis without retaining spring 500 mm
vertical drill stroke with retaining spring 55 mm
transverse travel Y-axis 325 mm
Solid steel column
total height 750 mm
made of solid components
with milled toothing Ø 35 mm
can be rotated through 360° in the base plate
Hexagonal steel boom
total length 500 mm
made of solid components
with milled toothing 30 mm
Guide housing
2 readjustable guide rollers
depth stop for always drilling workpieces to exactly the same depth
feed lever Z-axis with adjustable scale ring
feed lever Y-axis with adjustable scale ring
lockable Z- and Y-axis with 2 clamping screws
Machine support
for the mounting of drive units with European standard Ø 43 mm
swiveling through 360° with lock every 15°
Base plate
made of gray cast iron
surface-milled clamping surface 300 x 180 mm
number of slots 4
width of slots for 10 mm T-slot nuts or M10 hexagon bolts
Weight
weight without packaging 16.7 kg
