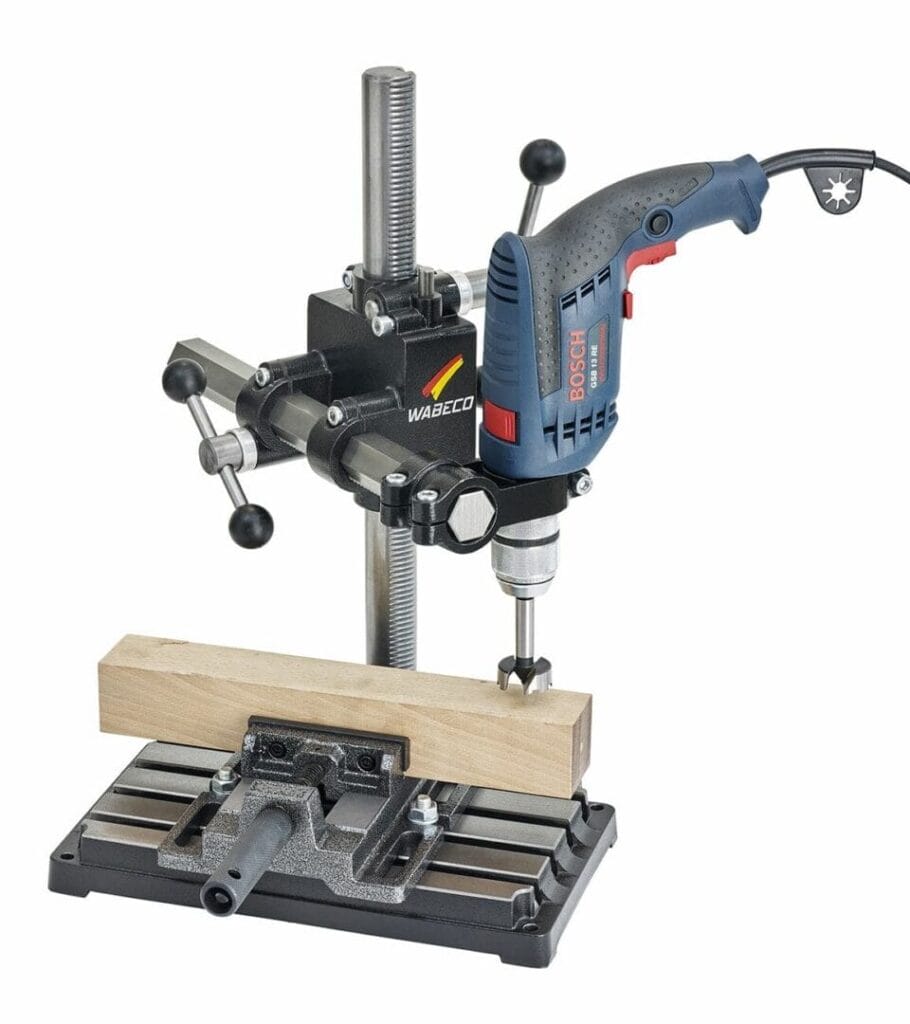

Drilling milling stand BF1243 basic model
Unique with 2 infeed axes
- for vertical and horizontal drilling and milling works
- Z-axis – vertical infeed axis for drilling works
- Y-axis – horizontal infeed axis for milling works
Ingenious
- the steel column can be rotated through 360° in the base plate and can be locked in any position, enabling the machining from all sides and the machining of larger workpieces
Space-saving
- flexible and space-saving alternative to table drilling machines, pillar drilling machines and column drilling machines
Application
- drilling, milling, woodturning and turning
- for processing metal, wood and plastics
Precise drilling and milling
- the workpiece can be positioned under the tools precisely
Design
- 750 mm total height steel column
- 500 mm total length hexagonal steel boom
Working range
- 500 mm travel Z-axis
- 325 mm travel Y-axis
It‘s off to the workshop
with the unique multi-talented systems,
that home workers dream about and that impresses the professionals
TECHNICAL DATA
| Working range | |
| vertical travel Z-axis without retaining spring | 500 mm |
| vertical drill stroke with retaining spring | 55 mm |
| transverse travel Y-axis | 325 mm |
| Solid steel column | |
| total height | 750 mm |
| made of solid components | ● |
| with milled toothing Ø | 35 mm |
| can be rotated through 360° in the base plate | ● |
| Hexagonal steel boom | |
| total length | 500 mm |
| made of solid components | ● |
| with milled toothing | 30 mm |
| Guide housing | |
| 2 readjustable guide rollers | ● |
| depth stop for always drilling workpieces to exactly the same depth | ● |
| feed lever Z-axis with adjustable scale ring | ● |
| feed lever Y-axis with adjustable scale ring | ● |
| lockable Z- and Y-axis with 2 clamping screws | ● |
| Machine support | |
| for the mounting of drive units with European standard Ø 43 mm | ● |
| swiveling through 360° with lock every 15° | ● |
| Base plate | |
| made of gray cast iron | ● |
| surface-milled clamping surface | 300 x 180 mm |
| number of slots | 4 |
| width of slots for 10 mm T-slot nuts or M10 hexagon bolts | ● |
| Weight | |
| weight without packaging | 16.7 kg |
