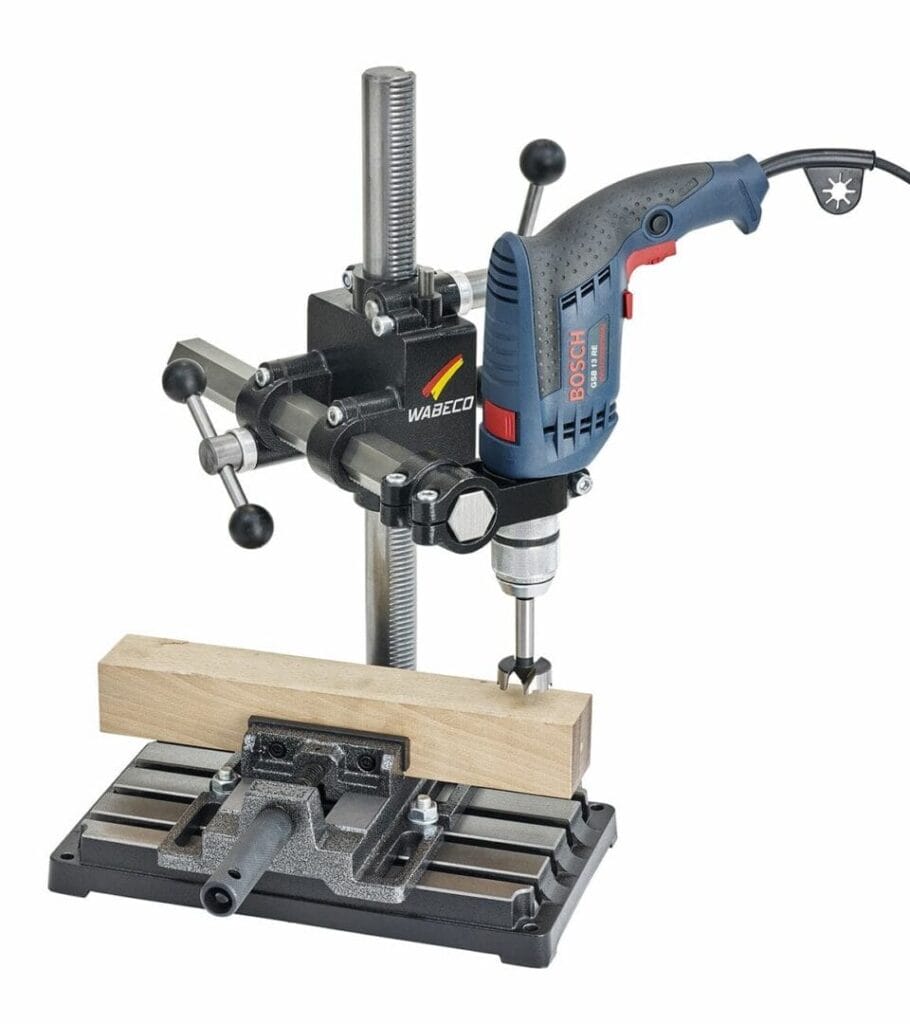

Drilling milling stand BF1243 with 2-axis coordinate table k600
Unique with 2 infeed axes
- for vertical and horizontal drilling and milling works
- Z-axis – vertical infeed axis for drilling works
- Y-axis – horizontal infeed axis for milling works
Ingenious
- the steel column can be rotated through 360° in the base plate and can be locked in any position, enabling the machining from all sides and the machining of larger workpieces
Space-saving
- flexible and space-saving alternative to table drilling machines, pillar drilling machines and column drilling machines
Application
- drilling, milling, woodturning and turning
- for processing metal, wood and plastics
Precise drilling and milling
- the workpiece can be positioned under the tools precisely
Design
- 750 mm total height steel column
- 500 mm total length hexagonal steel boom
Working range
- 500 mm travel Z-axis
- 325 mm travel Y-axis

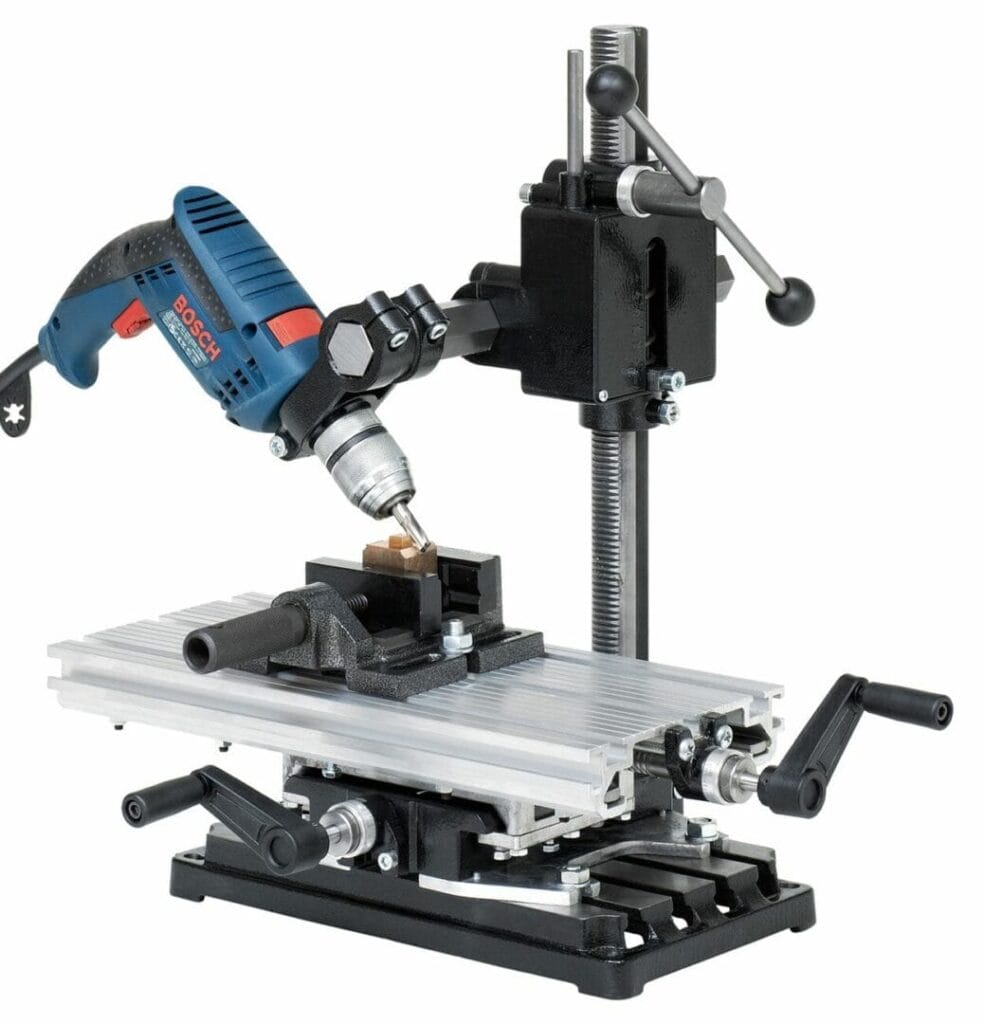

2-axis coordinate table K600
- additional infeed axes with WABECO Drilling Milling Stands BF
- for precise positioning of workpieces under the tools
- for milling rectangular pockets
- for gang drilling
- for drilling and thread cutting using coordinates
- for turning turned parts
Working range
- 520 mm longitudinal travel X-axis
- 100 mm transverse travel Y-axis
- 105 mm height
Clamping surface
- 600 x 100 mm
It‘s off to the workshop
with the unique multi-talented systems,
that home workers dream about and that impresses the professionals
TECHNICAL DATA
Working range
vertical travel Z-axis without retaining spring
500 mm
vertical drill stroke with retaining spring
55 mm
transverse travel Y-axis
325 mm
Solid steel column
total height
750 mm
made of solid components
●
with milled toothing Ø
35 mm
can be rotated through 360° in the base plate
●
Hexagonal steel boom
total length
500 mm
made of solid components
●
with milled toothing
30 mm
Guide housing
2 readjustable guide rollers
●
depth stop for always drilling workpieces to exactly the same depth
●
feed lever Z-axis with adjustable scale ring
●
feed lever Y-axis with adjustable scale ring
●
lockable Z- and Y-axis with 2 clamping screws
●
Machine support
for the mounting of drive units with European standard Ø 43 mm
●
swiveling through 360° with lock every 15°
●
Base plate
made of gray cast iron
●
surface-milled clamping surface
300 x 180 mm
number of slots
4
width of slots for 10 mm T-slot nuts or M10 hexagon bolts
●
Weight
weight without packaging
16.7 kg
