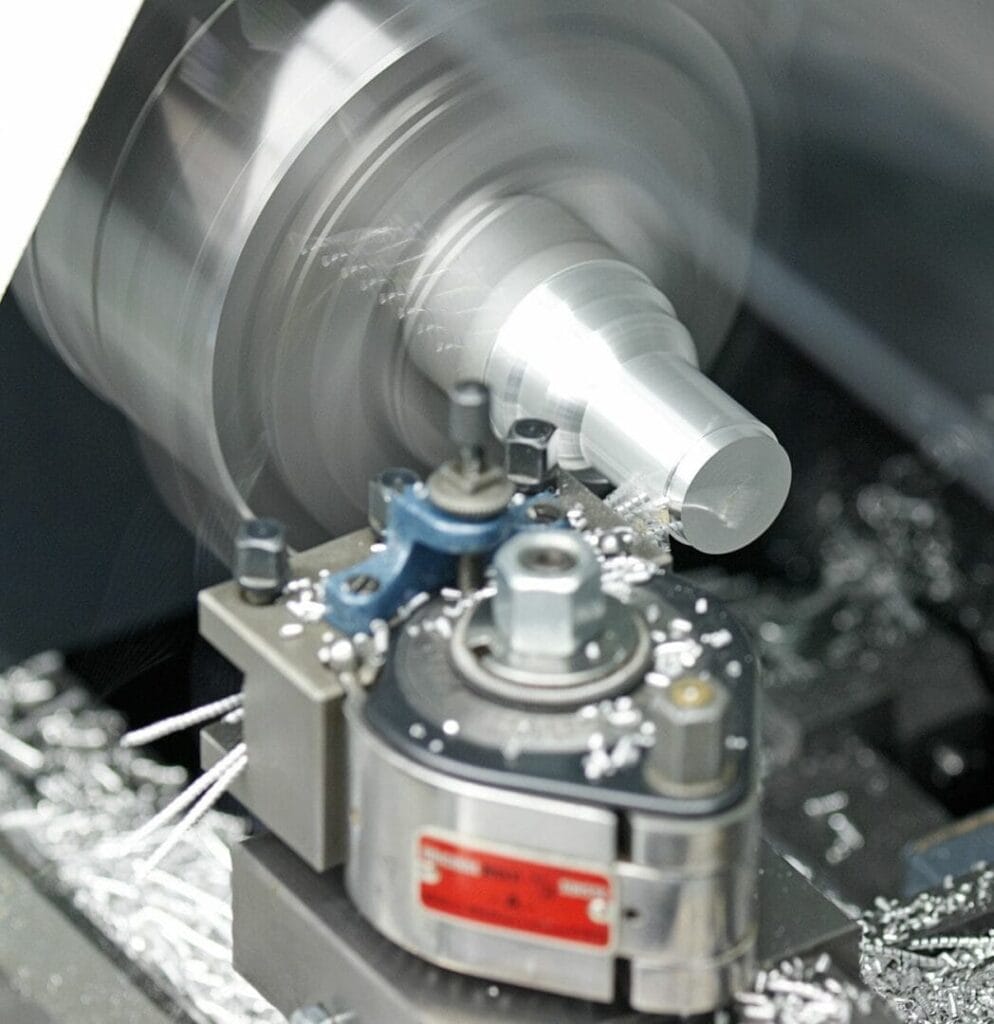

Lathe CC-D6000 Basic

DESCRIPTION

Lead screw CNC lathe

  • for metal processing

nccad BASIC controller

  • Travel speed (rapid traverse) X- and Z-axis 30 – 500 mm/min

nccad BASIC 2D turning software

  • 2D interpolation, i.e. 2 axes can be displaced simultaneously
  • Thread cutting not possible in CNC mode

Program creation

  • for creating programs and for controlling the CNC machine a PC is required (PCs are not part of the delivery)
  • the PC assumes the program creation, the program administration and the data archiving
  • CNC programs can be created on several PCs independently from the CNC machine

Advantage

  • the lathes can be used in conventional as well as in CNC mode

Silent running

  • Extremely silent running due to modern electronically adjustable drive technology

Prismatic cast iron bed

  • made of diagonally ribbed gray cast iron
  • inductively hardened and ground guideways

Standard equipment

  • 3-jaw lathe chuck Ø 125 mm
  • Live center MT2
  • Main spindle bore Ø 20 mm
  • Thread cutting
    with lead screw drive and change gear quadrant
    tumbler gear for left- and right-hand threads
    change gear set for metric 0.25 – 7.0 mm and inch 10 – 40 TPI threads
    2 automatic longitudinal feed rates/lead screw drive 0.085 and 0.16 mm/rev

Working range

  • 600 mm center distance
  • 135 mm center height
  • Workpiece diameter max. 270 mm

Main drive motor 230 V, 50/60 Hz

  • 230 V, 50/60 Hz
  • 1,4 kW, 30 – 2300 U/min
  • Single-phase inverse-speed motor speed-controlled
  • with overload protection
  • Main spindle drive which can be adjusted by means of a potentiometer over a wide range of cutting speeds
  • constant torque throughout the entire speed range

Application

  • for craft, workshop, industry and education use

Warranty

  • 2 years warranty – the warranty does not cover parts subject to wear
  • Availability of spare parts also guaranteed after warranty period

Note

  • Upgrading a manual WABECO lathe with CNC components, connecting a WABECO nccad controller and a PC makes it now a high precision CNC lathe.
  • To meet industrial standard safety requirements this to CNC converted lathe should be installed into a machine safety cabin. Please refer to local safety standard requirements.
  • Without a machine safety cabin a CNC lathe does not meet CE listed requirements and can result in serious injuries

Personal tours

  • You are cordially invited to visit our showroom in Remscheid. Come and convince yourself of the quality and precision of the WABECO machines and reap the benefits of a thorough consultation.

Special machine construction

  • We also offer special machine contruction – please contact us.

TECHNICAL DATA

Working range
Center distance 600 mm
Center height 135 mm
Turning Ø above cross slide 170 mm
Turning Ø above the guideways 270 mm
Bed width 185 mm
Machine precision
Machine precision according to DIN 8606
True running accuracy of spindle nose 0.005 mm
cylindrical turning to 100 mm cantilevered 0.01 mm
cylindrical turning with a finishing cut to 300 mm between the centers 0.015 mm
Positioning accuracy ± 0.015 mm
Main drive motor
Main drive motor 230 V, 50/60 Hz 1.4 kW
electronically infinitely variable drive 30 – 2300 rpm
Drive technology
Spindle electronics with multiple fault monitoring circuit
e.g. turning a steel shaft Ø 50 mm in one infeed approx. 5 mm
Headstock
Housing made of grey cast iron
V-shaped slot scraped by hands
Spindle head in 2 adjustable precision DIN tapered roller bearings
Right-left rotation of the main spindle
Intermediate gear between main spindle and drive
high torque even in the lower speed range, e.g. for machining hard-to-cut materials
Main spindle bore Ø 20 mm
Taper in main spindle MT3
Main spindle nose Ø 70 mm according to DIN 6350
Tailstock with quick adjustment
lateral adjustability of tailstock upper part ± 10 mm
Tailstock sleeve with an internal MT2 morse taper
Travel of tailstock sleeve 65 mm
Scale ring reading accuracy 0.1 mm
Tool slide
universally adjustable
Dovetail guides readjustable free of play
Reading accuracy of the scale rings 0.05 mm
Travel of cross slide 140 mm
Travel of longitudinal slide 60 mm
Longitudinal slide can be swiveled through 360°
max. height of turning tools 20 mm
Cutting scrapers prevent dirt and cuttings entering the guideways
Thread cutting (in conventional operation)
with lead screw drive and change gear quadrant
Tumbler gear for left- and right-hand threads
2 automatic longitudinal feeds conventional 0.085 and 0.16 mm/rev
Change gear set for thread cutting metric 0.25 – 7.0 mm
inch 10 – 40 TPI
Overload clutch (in conventional operation)
on the lead screw and the lead screw drive to avoid damage to the feed system
Stepper motors
maintenance-free
Travel speed (rapid traverse)
X- and Z-axis 30 – 500 mm/min
Limit switches X- and Z-axis
mechanical single limit switch
Dimensions and weight
Machine dimensions without packaging W1230 x D510 x H470 mm
Weight without packaging 172 kg
