Lathe D4000 Special edition with mountable digital vernier scales

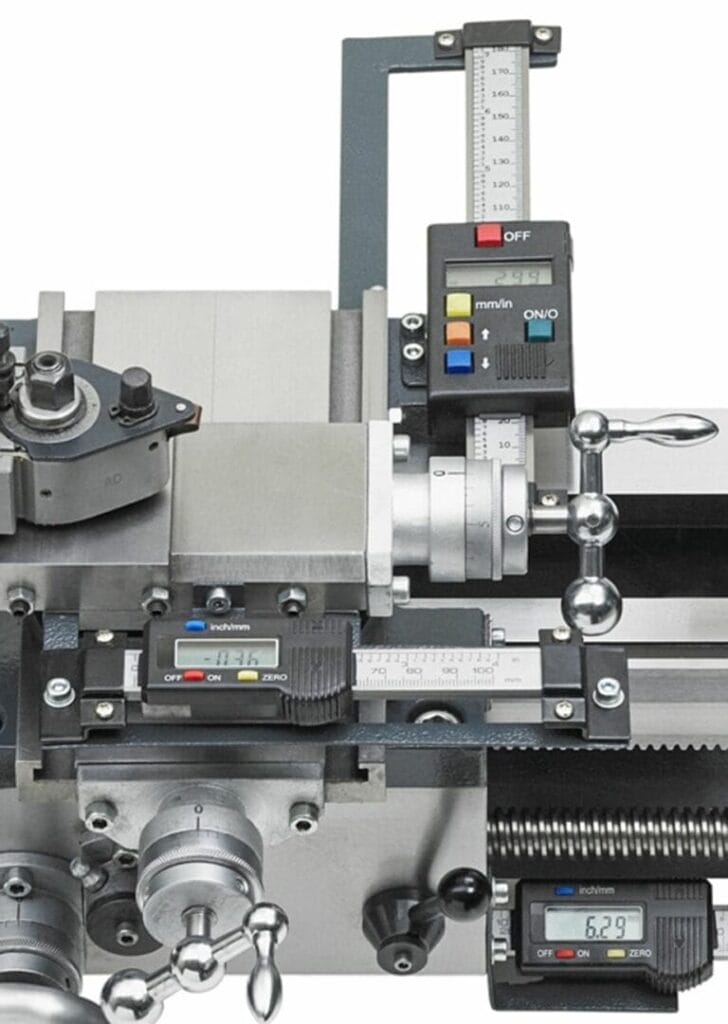

Special edition with mountable digital vernier scales
- mountable vernier scale 100 mm for X-axis
- mountable vernier scale 400 mm for Z-axis
- mountable vernier scale 100 mm for Z1-axis
- Mounting kit for mountable digital vernier scales for 3 axes
- factory installed
Lead screw lathe
- for metal processing
Silent running
- Extremely silent running due to modern electronically adjustable drive technology
Prismatic cast iron bed
- made of diagonally ribbed gray cast iron
- inductively hardened and ground guideways
Standard equipment
- 3-jaw lathe chuck Ø 100 mm
- Live center MT2
- Main spindle bore Ø 20 mm
- Thread cutting
with lead screw drive and change gear quadranttumbler gear for left- and right-hand threadschange gear set for metric 0.25 – 7.0 mm and inch 10 – 40 TPI threads2 automatic longitudinal feed rates/lead screw drive 0.085 and 0.16 mm/rev
Working range
- 350 mm center distance
- 100 mm center height
- Workpiece diameter max. 200 mm
Main drive motor
- 230 V, 50/60 Hz
- 1.4 kW, 30 – 2300 U/min
- Single-phase inverse-speed motor speed-controlled
- with overload protection
- Main spindle drive which can be adjusted by means of a potentiometer over a wide range of cutting speeds
- constant torque throughout the entire speed range
Application
- for hobby, model building, craft and workshop
Warranty
- 5 years warranty – the warranty does not cover parts subject to wear
- Availability of spare parts also guaranteed after warranty period
Personal tours
- You are cordially invited to visit our showroom in Remscheid. Come and convince yourself of the quality and precision of
the WABECO machines and reap the benefits of a thorough consultation.
Special machine construction
- We also offer special machine construction. Please contact us.
TECHNICAL DATA
Working range
Center distance
350 mm
Center height
100 mm
Turning Ø above cross slide
120 mm
Turning Ø above the guideways
200 mm
Bed width
120 mm
Machine precision
Machine precision
according to DIN 8606
True running accuracy of spindle nose
0.005 mm
cylindrical turning to 100 mm cantilevered
0.01 mm
cylindrical turning with a finishing cut to 300 mm between the tips
0.015 mm
Main drive motor
Main drive motor 230 V, 50/60 Hz
1.4 kW
electronically infinitely variable drive
30 – 2300 U/min
Drive technology
Spindle electronics with multiple fault monitoring circuit
●
e.g. turning a steel shaft Ø 50 mm in one infeed
approx. 5 mm
Headstock
Housing made of grey cast iron
●
V-shaped slot
scraped by hands
Spindle head in 2 adjustable precision DIN tapered roller bearings
●
Right-left rotation of the main spindle
●
Intermediate gear between main spindle and drive
●
high torque even in the lower speed range, e.g. for machining hard-to-cut materials
●
Main spindle bore
Ø 20 mm
Taper in main spindle
MT3
Main spindle nose Ø 70 mm
according to DIN 6350
Tailstock with quick adjustment
lateral adjustability of tailstock upper part
± 10 mm
Tailstock sleeve
mit Innenmorsekegel MK2
Travel of tailstock sleeve
45 mm
Scale ring reading accuracy
0.1 mm
Tool slide
universally adjustable
●
Dovetail guides
readjustable free of play
Reading accuracy of the scale rings
0.05 mm
Travel of cross slide
100 mm
Travel of longitudinal slide
50 mm
Longitudinal slide can be swiveled through
360°
max. height of turning tools
16 mm
Cutting scrapers prevent dirt and cuttings entering the guideways
●
Thread cutting (standard)
with lead screw drive and change gear quadrant
●
Tumbler gear
for left- and right-hand threads
Automatic longitudinal feed rate
0.085 und 0.16 mm/rev
Change gear set for thread cutting
metric 0.25 – 7.0 mm
inch 10 – 40 TPI
Overload clutch
on the lead screw and the lead screw drive to avoid damage to the feed system
●
Dimensions and weight
Machine dimensions without packaging
W860 x D400 x H370 mm
Weight without packaging
71 kg
