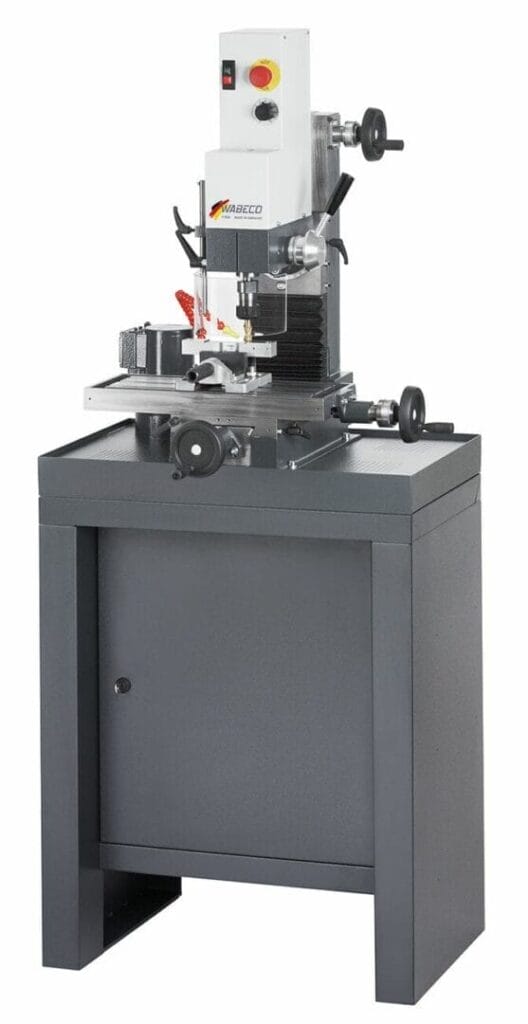

Milling Machine F1200 Special edition with tool set
Sonderedition with tool set
- Dividing attachment Ø 110 mm
- Quick-action drill chuck B16 1-13 mm with drill chuck arbor MT2
Vertical milling machine
- for metal processing
Ingenius
- thanks to the quill feature with drill depth stop, unit can also be used for drilling operation
Silent running
- extremly silent running due to modern electronically adjustable drive technology
Universal
- Milling head with 90° swiveling feature in both directions
Perfect
- Tool clamping and ejecting system
- for clamping and ejecting the tools (mills, drills, clamping chucks etc.)
- no need to drive out tools with a hammer, therefore, no damage to the anti-friction bearings
Standard equipment
- Tool holder MT2
Work table
- 450 x 180 mm
Working range
- 260 mm longitudinal travel X-axis
- 150 mm transverse travel Y-axis
- 280 mm vertical travel Z-axis
Main drive motor
- 230 V, 50/60 Hz
- 1.4 kW, 140 – 3000 rpm
- Single-phase inverse-speed motor speed-controlled as direct current model with permanent, closed loop rpm control system
- with overload protection
- Spindle speed can be adjusted by means of a potentiometer over a wide range of cutting speeds
- Constant torque throughout the entire speed range
Tool spindle
- with re-adjustable anti-friction bearings arranged in a large diameter drilling- and milling quill
- high torque even in the lowest speed range e.g. for machining hard-to-cut materials
- wide toothed belt between motor and tool spindle ensures a slip-free drive and a smooth running
Dovetail guides
- free of play adjustable in all axes
- 2 protective accordion bellows to protect dovetail guides
- results in clean machined surfaces due to fine adjustable, fine tunable dovetail guides
Application
- for hobby, model building, craft, workshop, industry and education use
- for single and small-series production
Warranty
- 5 years warranty – the warranty does not cover parts subject to wear
- Availability of spare parts also guaranteed after warranty period
Personal tours
- You are cordially invited to visit our showroom in Remscheid. Come and convince yourself of the quality
and precision of the WABECO machines and reap the benefits of a thorough consultation.
Special machine construction
- We also offer special machine construction – please contact us.
TECHNICAL DATA
Working range
Longitudinal travel X-axis
260 mm
Transverse travel Y-axis
150 mm
Vertical travel Z-axis
280 mm
Drill stroke
55 mm
Distance milling table – tool spindle
min. 100 mm max. 380 mm
Outreach tool spindle – column
185 mm
Machine precision
Machine precision
according to DIN 8615
True running accuracy of the tool spindle
0.01 mm
Main drive motor
Main drive motor 230 V, 50/60 Hz
1.4 kW
electronically infinitely variable drive
140 – 3000 rpm
Drive technology
Drive electronics with multiple fault monitoring circuit
●
e.g. milling in steel with a shank cutter Ø 10 mm with one infeed
approx. 10 mm
Feed screws
free of play adjustable trapezoidal thread spindles in all axes
by means of adjustable bronze double nuts
Reading accuracy of the scale rings
0.05 mm
Tool spindle
Tool holder
MT2 with tightening thread M10
Z-column and coordinate table
made of ribbed gray cast iron
●
Work table
450 x 180 mm
Number of T-slots
3
Width of T-slots
12 mm
Center distance between T-slots
50 mm
Fine feed in the Z-axis
●
Milling head
Swiveling range of the milling head in both directions
90° (-90° to +90°)
Angle position
easily read-off of the large scale
Vertical positon can be preset by means of a hardened and ground conical index pin
●
Protective hood
●
form-fit clamping of the quill
over the entire lateral surface
Quill stroke
with drilling depth stop
Reading accuracy scale ring – quill stroke
0.1 mm
Dimensions and weight
Machine dimensions without packaging
W655 x D625 x H670 mm
Weight without packaging
85 kg
