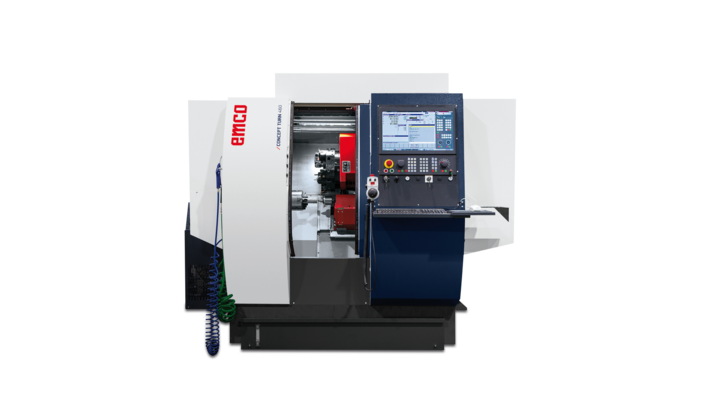

CONCEPT TURN 460

CNC TURNING CENTERS

With interchangeable control units; Part size up to 220 mm (8.66”) diameter; bar stock capacity up to 45 mm (1.77”)

EQUIPMENT

  • Integrated industrial PC with network and USB interface (front)
  • Programmable part collecting device
  • Easy2control user interface with 21,5″ touchscreen
  • Safety technology CE compliant
  • Thermostable head stock with high drive power and C axis
  • Various clamping device and tool holder packages
  • DNC-Robotic Interface
  • 12 x tool magazine with up to 6 driven tools
  • Synchronized main spindle and C axis with max. 1000 rpm
  • State of the art drive technology, servomotors with absolut encoders

TECHNICAL DATA

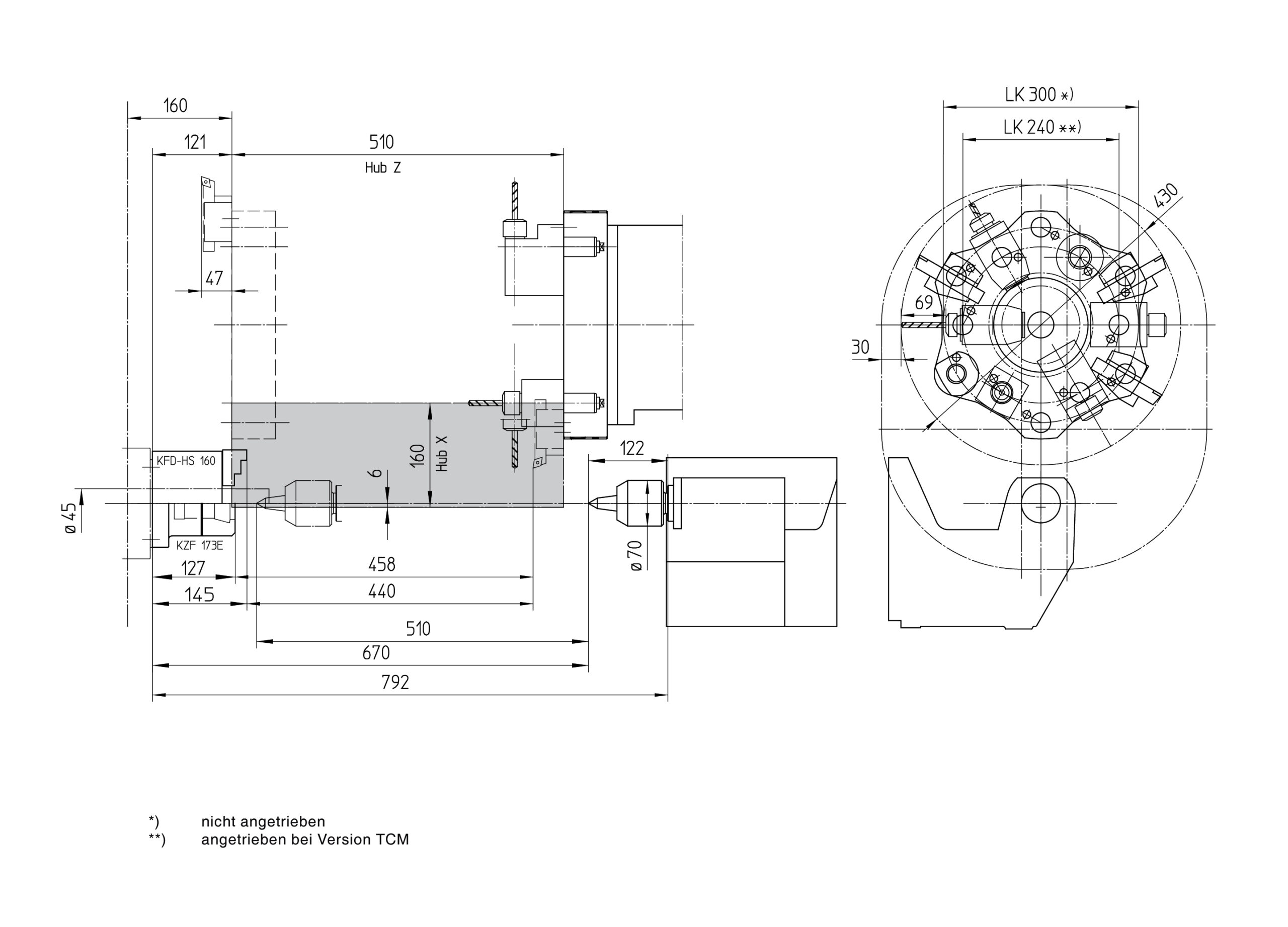

WORK AREA

Travel in X/Y/Z 160/ – / 510 mm
Bar diameter 45 mm
Max. turning diameter 220 mm
Distance spindle nose 510 mm
Tool cross-section for outer machining 20 x 20 mm
Tool cross-section for inner machining Ø 32
Rapid motion speeds in X/Y/Z 24/-/30 m/min
Work feed X/Y/Z 0 – 15 m/min
Feed force in X/Y/Z 4000 / – / 6000 N

MAIN SPINDLE

Max. speed 6300 rpm
Spindle nose KK 5
Max. drive power 13 kW
Max. torque 78 Nm

TAILSTOCK

Travel (automatic) 510 mm

TOOL TURRET

Number of tools 12
Driven tools 6
Max. speed 5000 rpm
Max. drive power 4.0 kW
Max. torque 16 Nm

GENERAL DATA

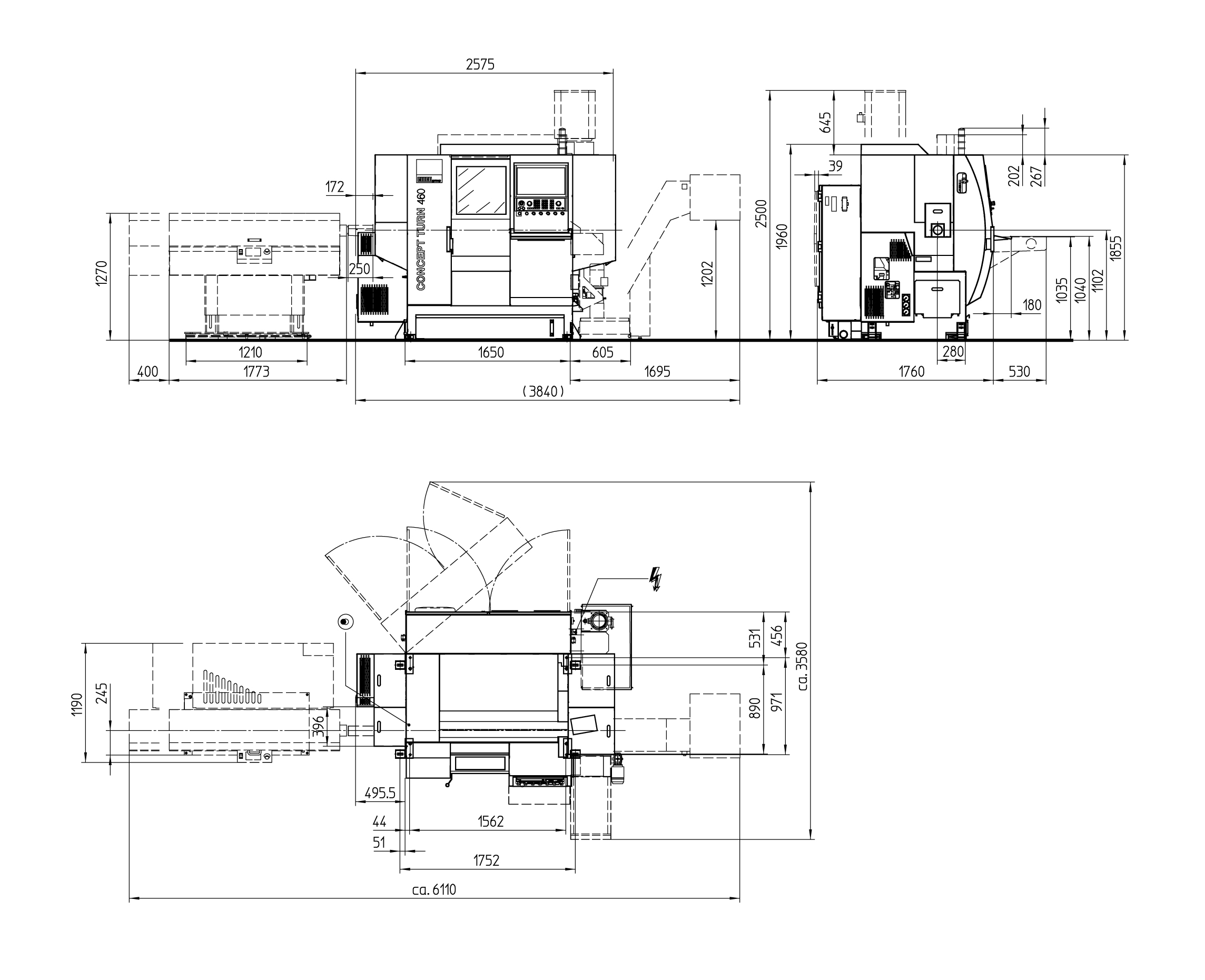

Dimensions (LxWxH) 2275 x 1790 x 1985 mm
Machine weight 3300 kg

HIGHLIGHTS

  • Integrated industrial PC with 21,5″ touchscreen (MOC-Touch)
  • Driven tools
  • MOC: integrated PC
  • Digital drives with high driven power
  • Driven tools with high machining power for drilling, thread and milling operations
  • Easy2control user interface
  • Stable, industry-standard gray cast iron construction
  • High machining precision
  • Extraordinary dynamics
  • Many automation possibilities
  • Interchangeable controls (WinNC)
  • Various clamping devices and tool holder packages
  • Bar-stock diameter 25 mm: with bar-stock loader ideal for small part production
  • Thermostability for highest precision and contour fidelity
