EMCOTURN E65

Modular CNC turning machines for economic machining of chuck, shaft and bar stock parts; bar sizes 25-95mm.

EMCOTURN E65

EQUIPMENT

  • New design/ new colour: Target date upon request
  • State-of-the-art drive and control technology Sinumerik 828D, Heidenhain CNC PILOT 640 or Fanuc Oi TF
  • Main spindle with large speed range Tool turret with 12 VDI 30 (VDI40) tool stations

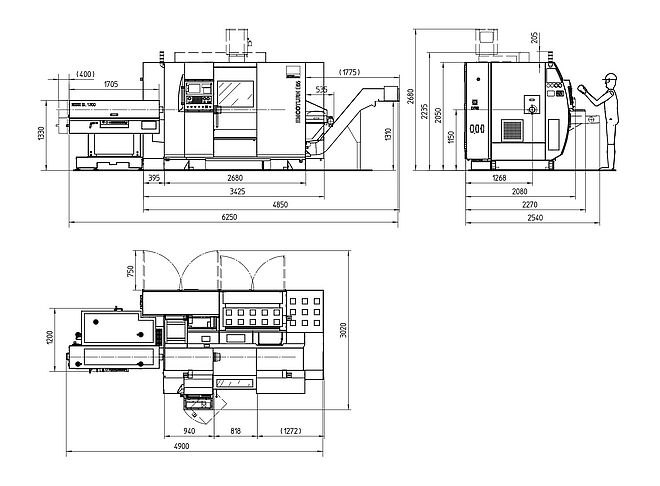

  • Short-bar loader SL 1200
  • Driven tools and C axis for main spindle
  • Fully automatic tailstock without quill for center punch MK4

TECHNICAL DATA

WORK AREA

Travel in X/Y/Z 210 / +/-40 / 610 mm
Bar diameter ø 65 mm
Max. turning diameter ø 500 mm
Swing over bed ø 610 mm
Distance between centers 682 mm
Rapid motion speeds in X/Y/Z 30/15/30 m/min

MAIN SPINDLE

Max. speed 5000 rpm
Spindle nose A2-6
Max. drive power 22 kW
Max. torque 305 Nm

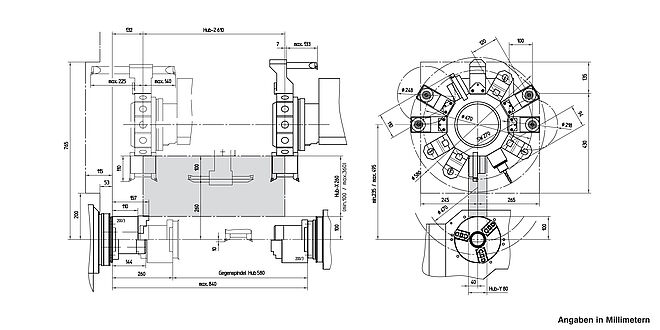

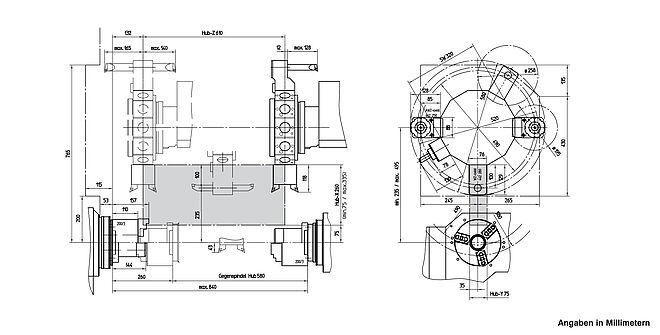

COUNTER SPINDLE

Max. speed 5000 rpm
Spindle nose A2-6
Max. drive power 16,5 kW
Max. torque 125 Nm

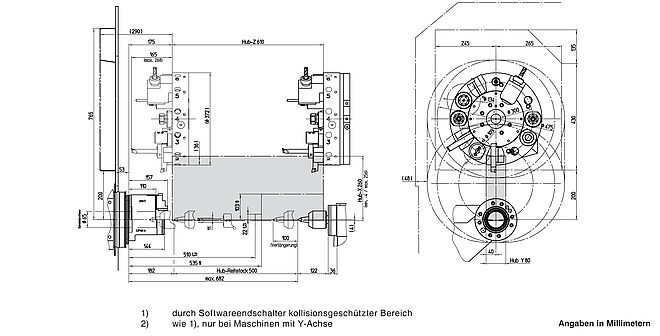

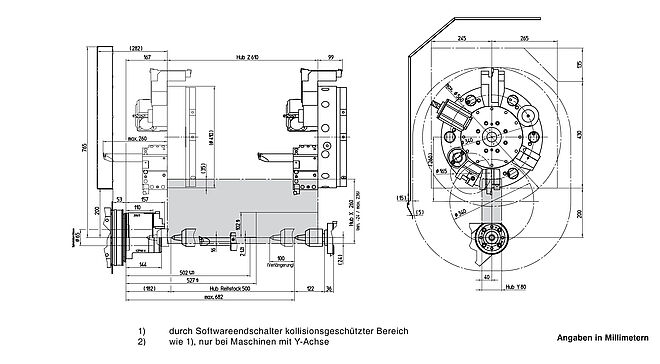

TAILSTOCK

Automatic tailstock yes
Inner cone MT4
Travel (automatic) 500 mm

TOOL TURRET

VDI size 30 (40)
Number of tools 12
Driven tools 12
Max. speed 5000 rpm
Max. drive power 6,7 kW
Max. torque 25 Nm

GENERAL DATA

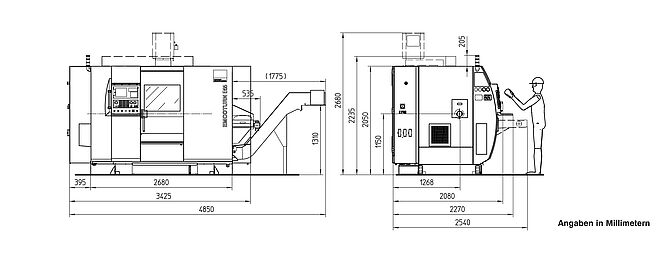

Dimensions (LxWxH) 3480 x 2080 x 2060 mm
Machine weight 6500 kg

HIGHLIGHTS

  • Thermo symmetric spindle stock
  • Axial tool turret for the tailstock version
  • Extremely solid machine bed and compact machine dimensions
  • Radial tool turret for the counter spindle version
  • Prestressed roller guides in all axes
  • Part pick-up device
