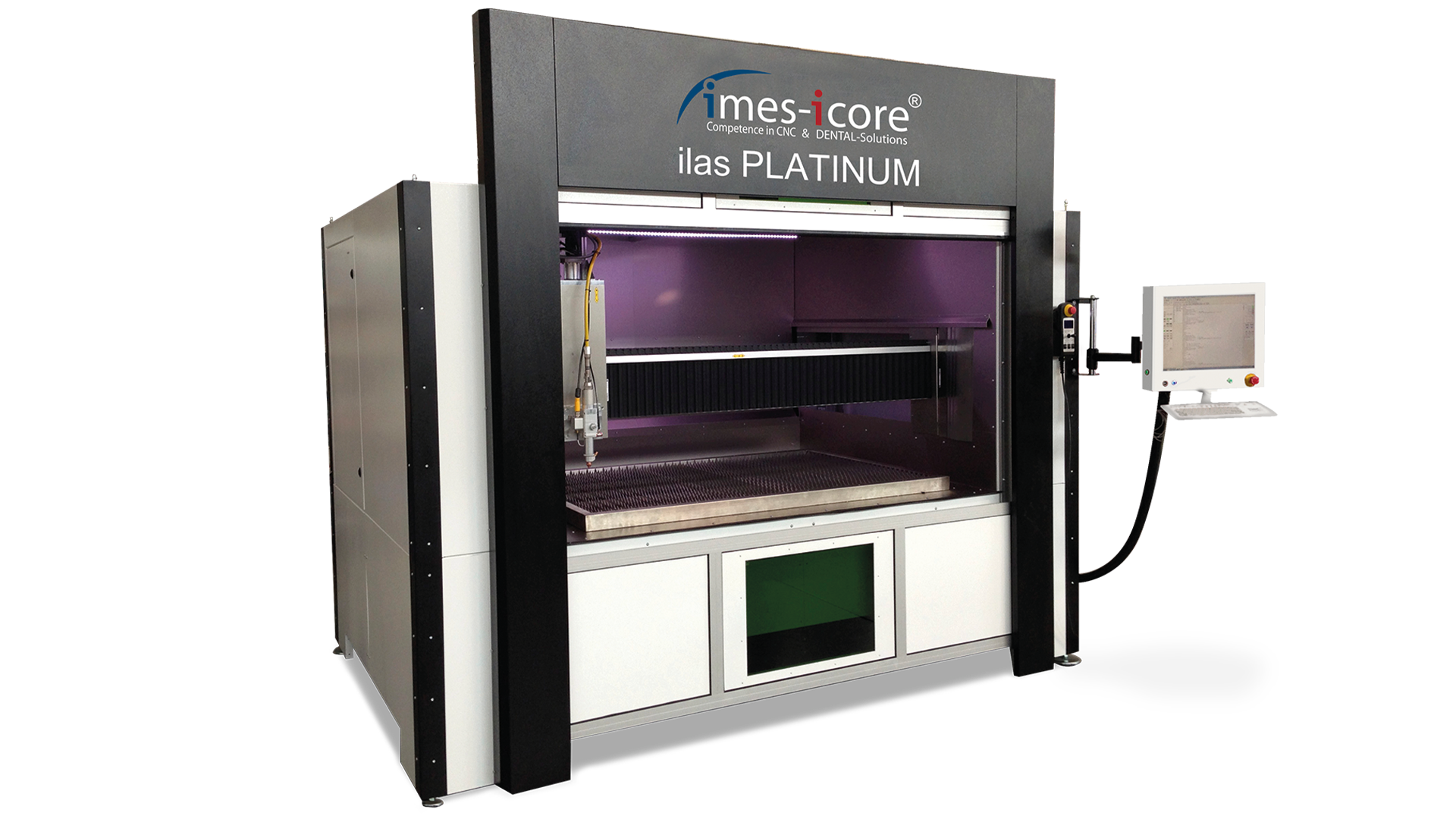

ILAS PLATINUM

LASER CUTTING MACHINE

Granite base for maximum accuracy for laser cutting

TECHNICAL DATA

  • Dimensions (W x D x H) in mm – ilas PLATINUM 1010: 2310 x 2035 x 2585 / ilas PLATINUM 1510: 2815 x 2035 x 2585 / ilas PLATINUM 2010: 3315x 2035 x 2585
  • Repetition accuracy – /
  • Travel ranges in mm – /
  • Distance focus – 100, 125 or 200 mm
  • Laser type – Ytterbium fibre laser
  • Laser power (max.) in W – 500 to 4000
  • Connection voltage – 400 V / 16 A
  • Focal distance in mm – 100, 125 or 200
  • Laser cooling – Air or water cooled
  • Wavelength in nm – 1070
  • Weight in kg – approx. 2500 – 4500
  • Marking/cutting speed in m/min – 15 (optionally with 30 linear motors)
  • Typical materials – Other materials depending on composition, Sheets and thin metal panels
  • Application examples – Cutting thin sheets up to 5 mm thick

HIGHLIGHTS

PROCESSING

  • Rapid and economical processing of sheet thicknesses up to 5 mm

TECHNOLOGY

  • Low-maintenance, modern fibre laser technology

TRAVEL SPEED

  • Travel speed: 15 m/min maximum

EVERY POSITION

  • imes-icore laser cutting systems enable

CONSTRUCTION

  • Machine with complete protective enclosure and laser protection window
    Steel/granite sandwich construction

INTERGRATION

  • Integrated device for optional extraction system
