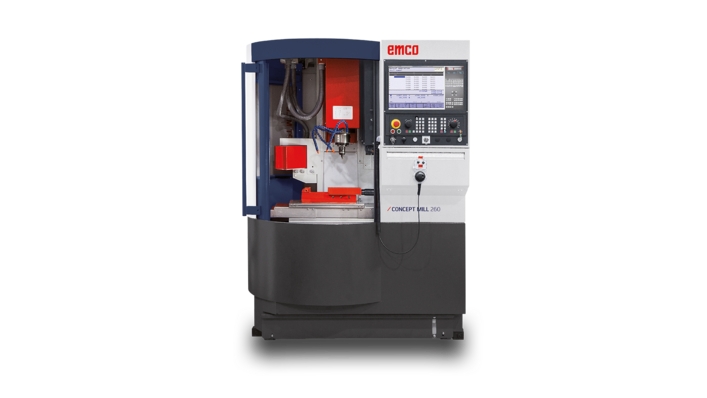

CONCEPT MILL 260

CNC MILLING MACHINES

Equipped with interchangeable software modules; Travel in X from 190 to 600 mm

EQUIPMENT

  • Tool magazine with SK30 DIN69871
  • All axes equipped with servo drive motors
  • NC dividing unit as an optional fourth axis
  • Up to 5 CNC controls on 1 machine applicable
  • Rotary table as an optional fourth axis
  • Rotating and swiveling unit as 5th axis
  • 20 times tool drum with double-gripper
  • Robotic INterface for integration into FFS/CIM systems

TECHNICAL DATA

WORK AREA

Travel in X/Y/Z 350/250/300 mm
Distance spindle nose 120 – 420 mm
Rapid motion speeds in X/Y/Z 24 m/min
Work feed X/Y/Z 0-10 m/min
Feed force in X/Y/Z 3000
Clamping area 520 x 300 mm
Max. table load 100 kg

TOOL CHANGE

Number of tool stations 20
Max. tool diameter 80 mm

MILLING SPINDLE

Max. speed 10000 U/min
Max. torque 34 Nm

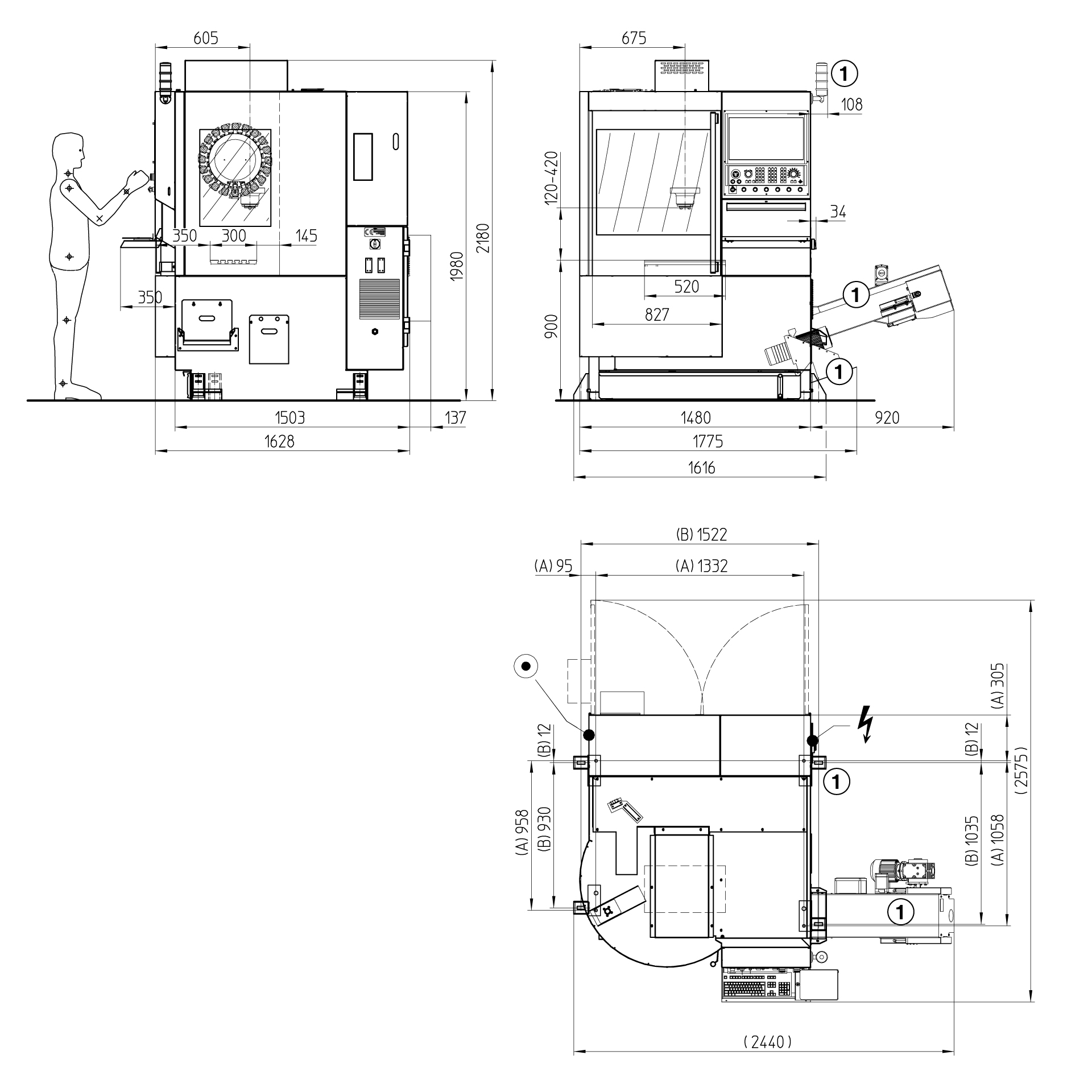

GENERAL DATA

Dimensions (LxWxH) 1600 x 1700 x 2200 mm
Machine weight 1970 kg

HIGHLIGHTS

  • System of interchangeable control – WinNC for: Sinumerik Operate 840D sl/828D, Fanuc 31i, Fagor 8055
  • Stable and compact engineering
  • USB and Ethernet-Interface
  • High cutting performance
  • High drive speed
  • Optimal view with full enclose
  • Extraordinary dynamics
  • Large variety of automation possibilities
  • 20 x tool magazine SK30 DIN69871
  • Servo motor technology in all axes
  • Optimal thermostability for maximum precision
  • Made in the Heart of Europe
